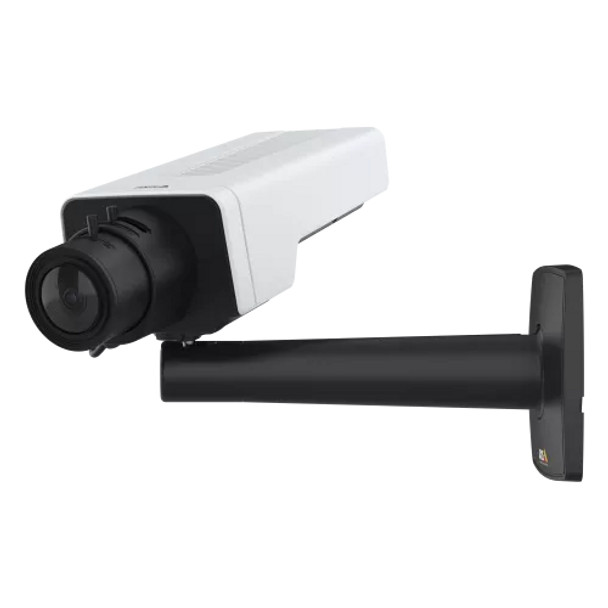

AXIS P1388 8MP 4K Indoor AI Box Camera, 02737-001

AXIS P1388 4K Indoor Box Camera with AI Analytics

The AXIS P1388 is an 8MP (4K, 3840x2160) indoor box camera with a 1/1.8″ sensor, a wide 3.9–10 mm lens and the AXIS T91B21 Stand Black included. Lightfinder 2.0 and Forensic WDR deliver true color and detail across large, unevenly lit spaces, the ARTPEC-8 deep learning processing unit runs AXIS Object Analytics, and Axis Edge Vault protects the device. The CS-mount lens with P-Iris is exchangeable, and AXIS designed the camera to fit into an outdoor housing when needed.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the AXIS P1388?

• 4K (3840x2160) at up to 50/60 fps (25/30 fps with Forensic WDR)
• Large 1/1.8″ sensor with Lightfinder 2.0 for color in dim interiors
• Wide 3.9–10 mm, F1.5 lens covering 122°–46° horizontally, exchangeable via CS mount
• AXIS Object Analytics, AXIS Scene Metadata and AXIS Image Health Analytics on the DLPU
• Axis Edge Vault: secure element (CC EAL 6+), Axis device ID, signed video and secure boot
• Electronic image stabilization, barrel distortion correction and corridor format
• Stand included; built-in microphone and speaker pairing
• PoE Class 3 or 10–28 V DC redundant power

4K Detail Across Wide Spaces

The 1/1.8″ sensor with 2.0 μm pixels streams 3840x2160, and the 3.9–10 mm lens covers 122°–46° horizontally and 64°–26° vertically, enough to watch a full lobby or retail floor in one view. At the wide end the camera can detect at 78.7 m (258.1 ft) and identify at 7.9 m (25.8 ft); at the tele end detect at 193.5 m (634.8 ft) and identify at 19.4 m (63.5 ft).

Lightfinder 2.0 and Forensic WDR

Minimum illumination is color 0.13 lux and B/W 0.03 lux at 50 IRE, F1.5 (4K 25/30 fps with Forensic WDR and Lightfinder 2.0), or color 0.05 lux with an optional F0.9 lens. Forensic WDR (up to 120 dB depending on scene) handles bright windows and dark corners in the same frame.

AI Analytics on the Edge

The ARTPEC-8 DLPU runs AXIS Object Analytics to detect and classify humans and vehicles in up to 10 scenarios, including line crossing, time in area, crossline counting and occupancy in area. AXIS Image Health Analytics warns of tampering or a degraded image, and AXIS Scene Metadata supports forensic search.

Axis Edge Vault Cybersecurity

Axis Edge Vault is a hardware-based cybersecurity platform with a secure element (CC EAL 6+), Axis device ID, secure keystore, signed video and secure boot. IEEE 802.1X, IEEE 802.1AR, HTTPS/HSTS and TLS v1.2/v1.3 secure the network connection.

Easy Indoor Installation

The AXIS T91B21 Stand Black is in the box for wall or ceiling installation. Power the camera with PoE Class 3 (typical 4.61 W) or 10–28 V DC, and use the 2 supervised alarm inputs, 2 outputs and RS485/RS422 for integration. A leveling assistant and remote back focus speed up commissioning.

Typical Applications

• Hotel and office lobbies
• Retail floors
• Open-plan offices
• Warehouses and distribution centers
• Atriums and large halls

Compatible Accessories

Compatible accessories for the AXIS P1388, available at Affinitech Store:

• AXIS T8120 15 W Midspan 1-port
• AXIS T8415 Wireless Installation Tool
• AXIS Surveillance Card 128 GB
• AXIS Surveillance Card 256 GB (microSDXC)

Compare AXIS P13 Box Cameras

Need a barebone unit to pair with your own lens? See the AXIS P1385-B, AXIS P1385-BE, AXIS P1387-B, AXIS P1387-BE, AXIS P1388-B, AXIS P1388-BE.

Explore More

• Browse the full Box Cameras collection at Affinitech Store
• See all AI-Powered Cameras at Affinitech Store

Frequently Asked Questions About AXIS P1388

What resolution does the AXIS P1388 capture?

4K (3840x2160) at up to 50/60 fps without WDR, or up to 25/30 fps with Forensic WDR.

What lens does it have?

A varifocal 3.9–10 mm, F1.5 IR-corrected CS-mount lens with P-Iris control, covering 122°–46° horizontally and 64°–26° vertically. It can be exchanged.

What is the minimum light sensitivity?

Color 0.13 lux and B/W 0.03 lux at 50 IRE, F1.5 (4K 25/30 fps with Forensic WDR and Lightfinder 2.0), or color 0.05 lux with an optional F0.9 lens.

Is a mount included?

Yes. The AXIS T91B21 Stand Black is included in the box.

Does it have built-in IR?

No. It relies on Lightfinder 2.0 and Forensic WDR for low light.

Can it be installed outdoors?

It is rated for -10 °C to 55 °C (14 °F to 131 °F) for indoor use and is designed to fit into an outdoor housing. The AXIS P1388-LE is the outdoor version.

Which analytics are included?

AXIS Object Analytics, AXIS Scene Metadata, AXIS Image Health Analytics, AXIS Video Motion Detection and AXIS Live Privacy Shield (available for download).

How is it powered?

Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 (typical 4.61 W, max 12.13 W) or 10–28 V DC (typical 4.53 W, max 11.14 W).

Does it support audio?

Yes. It has a built-in microphone that can be disabled, an external microphone and line input, and output through speaker pairing.

What are the DORI distances?

At the wide end, detect 78.7 m (258.1 ft) and identify 7.9 m (25.8 ft); at the tele end, detect 193.5 m (634.8 ft) and identify 19.4 m (63.5 ft).

What warranty does it have?

A 5-year Axis warranty.
