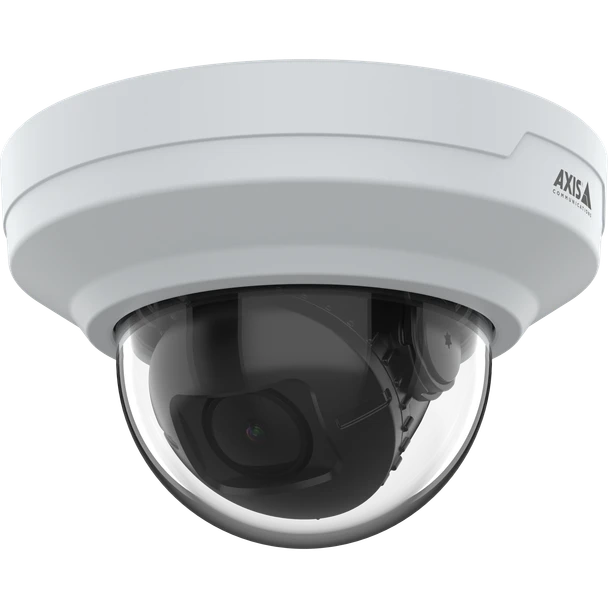

AXIS M3098-V 8 MP AI-Powered Mini Dome Camera - 03275-001
Description
AXIS M3098-V 8 MP AI-Powered Mini Dome Camera – 03275-001
The AXIS M3098-V is a compact, AI-powered 8 MP (4K UHD) mini dome camera built for indoor surveillance where discreet installation and on-camera intelligence both matter. It pairs Forensic WDR and Lightfinder image quality with a full analytics suite — AXIS Object Analytics, AXIS Audio Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, and AXIS Live Privacy Shield — running directly on the device, backed by Axis Edge Vault hardware security.
Why Choose the AXIS M3098-V?
- 8 MP / 4K UHD resolution with a wide 124° horizontal field of view
- Forensic WDR and Lightfinder for challenging light conditions
- AI-powered analytics preinstalled: Object, Audio, Image Health, Scene Metadata, and Live Privacy Shield
- Snap-on, screw-free indoor installation
- Bluetooth 5.4 Low Energy for direct installation view via the AXIS Installer app
- Axis Edge Vault with hardware-backed secure key storage meeting FIPS 140-3 Level 3 requirements, as specified by Axis
- 5-year Axis warranty
- AXIS OS supported through December 31, 2035
4K-Class Detail for Everyday Indoor Surveillance
AXIS M3098-V captures up to 3840x2160 (8 MP) resolution. Forensic WDR helps preserve detail in scenes containing both bright and dark areas, such as entrances with bright exterior windows, while Lightfinder keeps colors accurate as ambient light drops. A 124° horizontal field of view covers wide areas from a single mounting point, and corridor format reorients the image for long hallways.
AI-Powered Analytics, Right on the Camera
AXIS Object Analytics runs directly on the device to detect, classify, track, and count humans and vehicles. It supports configurable scenarios including object in area, line crossing, occupancy in an area, and crossline counting, among others available on this platform. Scenarios run on shared on-device compute, so the number and complexity of scenarios active at once depends on configuration and available resources rather than being unlimited.
Audio Analytics That Listens for Trouble
A built-in acoustic sensor paired with AXIS Audio Analytics can detect and analyze sounds including screams, shouts, glass breaking, speech, coughing fits, and sudden changes in sound level. As with any audio detection technology, performance depends on ambient noise and placement, so it's best understood as an additional layer of awareness rather than a guarantee of detection in every condition.
Image Health Monitoring
AXIS Image Health Analytics helps identify image-quality issues — such as a blocked or redirected camera, or a blurred or underexposed image — so security teams can maintain reliable video coverage and catch tampering or degradation before it becomes a blind spot.
Privacy-Enhancing Video With Live Privacy Shield
AXIS Live Privacy Shield provides privacy-enhancing functionality for applications where portions of the video need to be masked, using dynamic masking rather than a static overlay. It's a tool for reducing unnecessary visual exposure in a scene; it does not by itself make a deployment compliant with FERPA, HIPAA, GDPR, or any other regulation, which depends on the overall system design and use.
Quick, Tool-Minimal Mounting
The casing snaps onto its base with no screws required, and the camera arrives factory-focused for a fast, straightforward install on walls or ceilings. Installers can also use the AXIS Installer app's direct installation view — a Bluetooth 5.4 Low Energy connection used specifically for viewing and adjusting the camera stream during setup, without needing network access. This is a commissioning feature, not general Wi-Fi connectivity for the camera.
Hardware-Backed Cybersecurity
Axis Edge Vault anchors the device's identity in hardware, with secure boot and signed OS/firmware confirming the camera is running unmodified software. Its secure element provides hardware-backed key storage that meets FIPS 140-3 Level 3 requirements, as specified by Axis, for protecting cryptographic keys used in HTTPS, IEEE 802.1X, and Axis device ID operations. Network-side protections include HTTPS, IEEE 802.1X, and IEEE 802.1AE (MACsec) support, and signed video allows recorded footage to be traced back to the originating camera.
Indoor Installation, Impact-Resistant Housing
The AXIS M3098-V is designed for indoor installations. It carries an IP42 rating (protection against dust and light dripping water, not weatherproofing) and IK08 impact resistance, which protects against tampering and rough handling in occupied indoor spaces rather than sustained outdoor exposure.
Typical Applications
- General indoor retail and office surveillance
- Multi-tenant building common areas
- School and campus interior monitoring
- Restaurant and hospitality interiors
Compatible Accessories
Axis lists the following as compatible accessories for the AXIS M3098-V, available directly from Axis Communications:
Explore More
- Browse the full Dome Cameras collection at Affinitech Store
- See more AI-Powered Cameras at Affinitech Store
- Compare with the AXIS M3098-H
- Compare with the AXIS M3098-LV
Technical Specifications
| Specification | Details |
|---|---|
| Camera | |
| Image sensor | 1/1.8" progressive scan RGB CMOS, pixel size 2.0 µm |
| Lightfinder | Lightfinder |
| Wide dynamic range | Forensic WDR, up to 120 dB depending on scene |
| Min illumination / light sensitivity (Color) | 0.19 lux |
| Min illumination / light sensitivity (B/W) | 0.05 lux |
| Day and night | Automatic IR-cut filter |
| Lens | |
| Focal length | 3.76 mm, F2.0 |
| Horizontal field of view | 124° |
| Vertical field of view | 66° |
| Mount | M12, fixed iris, IR corrected |
| Video | |
| Max video resolution | 3840x2160 (16:9); 1440x1080 (4:3) |
| Max frames per second | 12/15 fps (8 MP mode); 25/30 fps (4 MP mode) |
| Electronic image stabilization | – |
| Compression | |
| Zipstream | Yes |
| H.264 | High, Main Profile |
| H.265 | Main Profile |
| Motion JPEG | Yes |
| Analytics | |
| AXIS Object Analytics | Humans and vehicles; scenarios include object in area, line crossing, occupancy in area, crossline counting, tailgating detection, and more (up to 10 scenarios) |
| AXIS Audio Analytics | Screams, shouts, glass breaking, speech, coughing fits, sound-level changes |
| AXIS Image Health Analytics | Detects blocked/redirected image, blurred/underexposed image |
| AXIS Scene Metadata | Humans, faces, vehicles, license plates; attributes and confidence/position data |
| AXIS Live Privacy Shield | Dynamic privacy masking (available for download) |
| AXIS Video Motion Detection | Yes |
| Audio | |
| Sensor | Acoustic sensor |
| Network | |
| PoE Class | 2 |
| Ethernet | RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| Wireless / Installation | |
| Bluetooth | Bluetooth 5.4 Low Energy |
| Installation | Direct installation view using the AXIS Installer app (not for ROW variants) |
| Security | |
| Signed OS | Yes |
| Secure boot | Yes |
| Secure keystore | Secure Element (CC EAL6+); meets FIPS 140-3 Level 3 requirements, as specified by Axis |
| Axis Edge Vault | Yes |
| Network security | HTTPS, IEEE 802.1X (EAP-TLS), IEEE 802.1AE (MACsec) |
| Storage | |
| Local storage | microSD/microSDHC/microSDXC card slot, optional AES-XTS-Plain64 256-bit encryption |
| Network storage | Recording to network-attached storage (NAS) |
| General | |
| Installation | Indoor use only |
| IP rating | IP42 (dust and light dripping water; not weatherproof) |
| Vandal rating | IK08 |
| Operating temperature | 0 to 45 °C (32 to 113 °F) |
| Designed for repaint | Yes |
| Weight | 194 g (0.43 lb) |
| Warranty & Support | |
| Warranty | 5-year Axis warranty |
| AXIS OS support | Supported until December 31, 2035 |
Frequently Asked Questions About AXIS M3098-V
What is the AXIS M3098-V?
It's a compact, AI-powered 8 MP indoor mini dome camera with Forensic WDR, Lightfinder, and a full suite of on-device analytics, built on Axis's M30 dome camera platform.
Is the AXIS M3098-V a 4K camera?
Yes, it captures up to 3840x2160 resolution, commonly referred to as 4K/8 MP.
Is the AXIS M3098-V designed for indoor or outdoor use?
Indoor use only. It's rated IP42, which protects against dust and light dripping water but is not a weatherproof or outdoor rating.
What is the field of view of the AXIS M3098-V?
124° horizontal and 66° vertical from its fixed 3.76 mm lens.
Does the M3098-V support AI analytics?
Yes. AXIS Object Analytics, AXIS Audio Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, and AXIS Live Privacy Shield are all preinstalled and run on the camera itself.
What analytics are included with the M3098-V?
AXIS Object Analytics, AXIS Audio Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, and AXIS Video Motion Detection.
Does the M3098-V support audio analytics?
Yes, via a built-in acoustic sensor and AXIS Audio Analytics, which can detect screams, shouts, glass breaking, speech, coughing fits, and sound-level changes.
Does the M3098-V support H.265?
Yes, H.265 Main Profile, alongside H.264 (High, Main), Motion JPEG, and Axis Zipstream.
Does the M3098-V use Power over Ethernet?
Yes, PoE Class 2 over a single RJ45 Ethernet cable.
Does the M3098-V support edge storage?
Yes, via a microSD/microSDHC/microSDXC card slot, with optional AES-XTS-Plain64 256-bit encryption, and it can also record to network-attached storage.
What cybersecurity features does the M3098-V have?
Axis Edge Vault, secure boot, signed OS, and a secure element that meets FIPS 140-3 Level 3 requirements for key storage, along with HTTPS, IEEE 802.1X, and IEEE 802.1AE (MACsec) network security.
Does the M3098-V support privacy masking?
Yes, via AXIS Live Privacy Shield, which provides dynamic privacy masking for scenes where portions of the video need to be obscured.
What is the AXIS M3098-V part number?
03275-001 for the US, UK, EU, AU, and KR markets. A ROW (rest-of-world) variant is available as 03275-701 in select markets.
How long is the AXIS M3098-V warranty?
5 years, per Axis's standard warranty terms.
How long will Axis support the M3098-V?
AXIS OS support runs through December 31, 2035. Axis develops new features for this camera on the AXIS OS 12, 13, and 14 tracks through 2030, after which it moves into long-term support (LTS) with security and bug-fix updates continuing through the end of 2035.
Detailed Specifications
Axis M3098-V Dome Camera Specifications
| Specification | Details |
|---|---|
| Camera | |
| Image sensor | 1/1.8" progressive scan RGB CMOS, pixel size 2.0 µm |
| Lens | 3.76 mm, F2.0, M12 mount, fixed iris, IR corrected |
| Horizontal field of view | 124° |
| Vertical field of view | 66° |
| Day and night | Automatic IR-cut filter |
| Minimum illumination | Color: 0.19 lux at 50 IRE, F2.0 · B/W: 0.05 lux at 50 IRE, F2.0 |
| Shutter speed | 1/66000 s to 1/5 s |
| Camera adjustment | Pan ±175°, tilt +57° to -10°, rotation ±175° |
| System on Chip (SoC) | |
| Model | CV75 |
| Memory | 2 GB RAM, 8 GB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (Main, High Profile), H.265 (Main Profile), Motion JPEG |
| Resolution | 16:9 up to 3840x2160; 4:3 up to 1440x1080 |
| Frame rate | Up to 12/15 fps (50/60 Hz) in 8 MP mode; up to 25/30 fps (50/60 Hz) in 4 MP mode |
| Video streaming | Multiple, individually configurable H.264/H.265/Motion JPEG streams; Axis Zipstream; VBR/ABR/MBR |
| WDR | Forensic WDR, up to 120 dB depending on scene |
| Multi-view streaming | 2 individually cropped view areas |
| Image settings | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode/zones, compression, rotation (0°/90°/180°/270° incl. corridor format), mirroring, dynamic overlay, privacy masks; scene profiles: forensic, vivid |
| Image processing | Axis Zipstream, Forensic WDR, Lightfinder |
| Pan/Tilt/Zoom | Digital PTZ |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, PTP, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog, Link-Local address (ZeroConf) |
| System Integration | |
| API | Open API including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); one-click cloud connection; ONVIF® Profile G, M, S, T |
| Video management systems | Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis partners |
| Onscreen controls | Day/night shift, wide dynamic range, privacy masks, edge-to-edge, siren and light pairing |
| Event conditions | Audio analytics thresholds (SPL, coughing fit, glass break, scream, shout, speech), device status, edge storage status, I/O, MQTT client connected, scheduled events, video (bitrate degradation, day-night mode, tampering) |
| Event actions | Day-night mode, LED status flash, MQTT publish, notifications (HTTP/HTTPS/TCP/email), overlay text, recordings, security (erase configuration), SNMP traps, image/clip uploads (FTP/SFTP/HTTP/HTTPS/network share/email), WDR mode |
| Built-in installation aids | Pixel counter, level grid |
| Analytics | |
| Applications included | AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield (available for download), AXIS Video Motion Detection |
| Applications supported | AXIS Camera Application Platform (ACAP) third-party apps |
| AXIS Object Analytics | Object classes: humans, vehicles (cars, buses, trucks, bikes, other) · Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection (beta), motion in area, motion line crossing · Up to 10 scenarios · Color-coded bounding boxes, polygon include/exclude areas, perspective configuration, ONVIF Motion Alarm event |
| AXIS Image Health Analytics | Detection settings: tampering (blocked image, redirected image), image degradation (blurred image, underexposed image); configurable sensitivity and validation period |
| AXIS Audio Analytics | Sound pressure level, adaptive audio detection, audio classification: scream, shout, glass break, speech, coughing fit; event metadata for detections, classifications, and SPL |
| AXIS Scene Metadata | Object classes: humans, faces, vehicles (types), license plates; attributes: vehicle color, upper/lower clothing color, bag, confidence, position |
| Cybersecurity | |
| Edge security (software) | Signed OS, brute force delay protection, digest authentication, OAuth 2.0 (RFC6749 Client Credential Flow / OpenID Authorization Code Flow), password protection, Axis Cryptographic Module (FIPS 140-2 Level 1) |
| Edge security (hardware) | Axis Edge Vault cybersecurity platform; secure keystore — secure element (CC EAL6+); meets FIPS 140-3 Level 3 requirements, as specified by Axis; system-on-chip security (TEE); Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit) |
| Network security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| Documentation | AXIS OS Hardening Guide, Axis Vulnerability Management Policy, Axis Security Development Model, AXIS OS Software Bill of Material (SBOM); available at axis.com/support/cybersecurity/resources |
| Wireless / Installation | |
| Bluetooth | Bluetooth® 5.4 Low Energy (not valid for ROW variants) |
| Bluetooth profiles | None — used solely for direct installation view through the AXIS Installer mobile app |
| Storage | |
| Local storage | microSD/microSDHC/microSDXC card, optional AES-XTS-Plain64 256-bit SD card encryption |
| Network storage | Recording to network-attached storage (NAS) |
| General | |
| Casing | IP42- and IK08-rated, polycarbonate hard-coated dome, color white (NCS S 1002-B) |
| Installation | Indoor use only |
| Power | PoE IEEE 802.3af/802.3at Type 1 Class 2; max 3.9 W, typical 3.4 W; dynamic power mode, power meter |
| Connectors | Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE |
| Sensor | Acoustic sensor |
| Environmental sensors | Supported through portcast technology accessories (e.g. AXIS D6210 Air Quality Sensor) |
| Operating conditions | 0 °C to 45 °C (32 °F to 113 °F), humidity 10–85% RH (non-condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F), humidity 5–95% RH (non-condensing) |
| Weight | 194 g (0.43 lb) |
| Dimensions | Axis publishes overall product dimensions only as a drawing in the current datasheet, not as extractable text; exact height/width/depth are omitted here rather than estimated |
| Box content | Camera, installation guide, owner authentication key |
| Approvals | |
| Product markings | CE, FCC, ICES, UL, RCM, BSMI, KC, NCC, TELEC, VCCI (region-dependent) |
| Supply chain | TAA compliant |
| EMC | CISPR 35, CISPR 32 Class B, EN 55035, EN 55032 Class B, EN 61000-6-1/6-2; region-specific: RCM AS/NZS CISPR 32 Class B, ICES(B)/NMB(B), VCCI Class B, KS C 9835/9832 Class B, FCC Part 15 Subpart B Class B |
| Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, EN 62311, NOM-015 |
| Environment | IEC 60068-2 series, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Wireless | EN 62311, EN 300328, EN 301489-1/17, FCC Part 15 Subpart C, FCC Part 2 Subpart J, MIC, NCC, RSS-102, RSS-247, RSS-Gen (region-dependent) |
| Network | NIST SP500-267 |
| Cybersecurity | ETSI EN 303 645, BSI IT Security Label, FIPS 140, EN 18031-1 |
| Sustainability | |
| Substance control | PVC free, BFR/CFR free (JEDEC/ECA JS709); RoHS (EU Directive 2011/65/EU and 2015/863, EN IEC 63000:2018); REACH ((EC) No 1907/2006) |
| Materials | Renewable carbon-based plastic content: 65% (27% recycled, 35% bio-based, 3% carbon capture based); screened for conflict minerals per OECD guidelines |
| Detect, Observe, Recognize, Identify (DORI) | |
| Detect | 25 px/m (8 px/ft) — 75 m (250 ft) |
| Observe | 63 px/m (19 px/ft) — 30 m (98 ft) |
| Recognize | 125 px/m (38 px/ft) — 15 m (49 ft) |
| Identify | 250 px/m (76 px/ft) — 8 m (30 ft) |
| Warranty & Support | |
| Warranty | 5-year warranty, see axis.com/warranty |
| Software support | Axis develops new features for this camera on the AXIS OS 12, 13, and 14 tracks through 2030; the camera then continues to receive security and bug-fix updates under AXIS OS LTS 2030–2035 through December 31, 2035 |
| Languages | |
| Supported languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Part Numbers | |
| 03275-001 | Primary US ordering part number (also AU, EU, KR, UK) |
| 03275-701 | ROW (rest-of-world) variant, available in select markets only |
| Optional Accessories | |
| Portcast | AXIS D6210 Air Quality Sensor |
| Installation | AXIS T8415 Wireless Installation Tool |
| Mounting | AXIS TM3401 Grid Ceiling Mount, AXIS TM3101 Pendant Wall Mount, AXIS T91 and AXIS T94 mounting accessories |
| Storage | AXIS Surveillance Cards |
| Other | Smoked dome |
