AXIS M3098-LV 8MP Mini Dome with IR

Q: What is the field of view?

124 deg horizontal and 66 deg vertical from its 3.76 mm lens.

Description
Detailed Specifications

Description

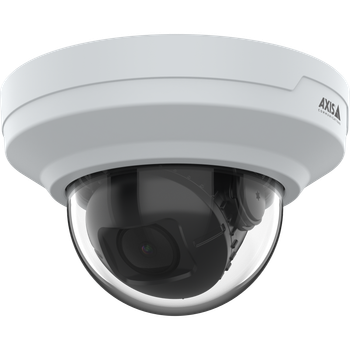

AXIS M3098-LV Dome Camera – 8 MP AI-Powered Mini Dome with Built-In IR

The AXIS M3098-LV is an AI-powered 8 MP mini dome with built-in IR illumination, extending clear, analytics-ready coverage into total darkness. It combines 4K-class detail, an acoustic sensor for audio analytics, and FIPS 140-3 Level 3 certified secure key storage in a compact, snap-on housing.

Key Specifications

Max video resolution	3840x2160
Max frames per second	12/15
Focal length	3.76 mm
Horizontal field of view	124°
Lightfinder	Lightfinder
Wide dynamic range	WDR
Built-in IR	Yes (up to 15 m)
Min illumination (Color)	0.19 lux
PoE Class	3
Vandal rating	IK08
IP rating	IP42
Operating temperature	0 to 45 °C

Full specifications are listed in the Detailed Specifications tab.

Why Choose the AXIS M3098-LV?

8 MP / 4K-class resolution with built-in IR up to 15 m
Forensic WDR, Lightfinder, and OptimizedIR
AI-powered video and audio analytics preinstalled
Acoustic sensor detects screams, shouts, and glass breaks
Snap-on, screw-free installation
FIPS 140-3 Level 3 certified secure key storage

4K Detail in Every Light Condition

AXIS M3098-LV delivers up to 3840x2160 resolution with Forensic WDR balancing scenes with both dark and light areas, and Lightfinder producing true-to-life color even as ambient light fades.

Built-In IR for Total Darkness

Onboard IR illumination reaches up to 15 m (49 ft), so the camera keeps producing usable footage even when no other light source is present — no external illuminator required.

AI-Powered Video and Audio Analytics

AXIS Object Analytics classifies, tracks, and counts people on the edge, while an acoustic sensor and AXIS Audio Analytics detect key sounds like screams, shouts, glass breaks, or sudden volume changes.

Snap-On Installation and Enterprise-Grade Security

The casing snaps on without screws for flexible, discreet wall or ceiling mounting, and Axis Edge Vault provides FIPS 140-3 Level 3 certified secure key storage alongside signed OS and secure boot.

Typical Applications

Unlit parking areas and loading docks (indoor)
Storage rooms and back-of-house facilities
Overnight retail and warehouse monitoring
Corridors and stairwells needing after-hours coverage

Compatible Accessories

Compatible accessories for the AXIS M3098-LV. Linked items are available at Affinitech Store; contact us for the others:

Compare AXIS M30 Mini Domes

Model	Max resolution	Type	Best for
AXIS M3085-V	1920x1080	Indoor mini dome	Classrooms, retail, offices
AXIS M3086-V	2688x1512	Indoor wide-angle mini dome	Classrooms, retail, offices
AXIS M3088-V	3840x2160	Indoor mini dome	Lobbies, retail floors, open offices
AXIS M3098-V	3840x2160	Indoor AI mini dome with audio analytics	Lobbies, retail, large rooms
AXIS M3098-LV (this camera)	3840x2160	Mini dome with built-in IR	Hallways, stairwells, dark rooms
AXIS M3098-H	3840x2160	Recessed mini dome	Drop ceilings in schools and offices
AXIS M3077-PLVE	2016x2016	Outdoor 360° panoramic dome	Parking lots, entrances, courtyards
AXIS M3057-PLR Mk II	2016x2016	Onboard 360° panoramic (EN50155)	Buses and trains

Explore More

Browse the full Dome Cameras collection at Affinitech Store
See more AI-Powered Cameras at Affinitech Store
Compare with the AXIS M3098-H
Compare with the AXIS M3098-V

Frequently Asked Questions About AXIS M3098-LV

What resolution does the AXIS M3098-LV capture?

Up to 3840x2160 (8 MP) at 12/15 fps.

How far does the built-in IR reach?

Up to 15 m (49 ft) in total darkness.

What is the field of view?

124° horizontal and 66° vertical from its 3.76 mm lens.

Does it detect specific sounds?

Yes, via an acoustic sensor and AXIS Audio Analytics.

Is it rated for outdoor use?

No, it's built for indoor use, rated IP42.

What vandal rating does it have?

IK08.

How is it mounted?

The casing snaps on for tool-free wall or ceiling installation.

What secure key storage does it use?

A Secure Element rated CC EAL6+ and FIPS 140-3 Level 3.

Does it support local storage?

Yes, via a memory card slot.

What compression formats are supported?

H.264 (High, Main), H.265, and Axis Zipstream.

How is it powered?

PoE Class 3.

What analytics come preinstalled?

AXIS Object Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, and AXIS Image Health Analytics.

View AllClose

Detailed Specifications

AXIS M3098-LV Dome Camera Specifications

Specification	Details
Camera
Image sensor	1/1.8" progressive scan RGB CMOS, pixel size 2.0 µm
Lens	3.76 mm, F2.0
Horizontal field of view	124°
Vertical field of view	66°
Mount / iris	M12 mount, fixed iris, IR corrected
Day and night	Automatic IR-cut filter, hybrid IR filter
Minimum illumination	Color: 0.19 lux at 50 IRE, F2.0 · B/W: 0.05 lux at 50 IRE, F2.0 · 0 lux with IR illumination on
Shutter speed	1/66000 s to 1/5 s
Camera adjustment	Pan ±175°, tilt (corridor format) +30° to -10°, tilt (landscape) +57° to -10°, rotation ±175°
System on Chip (SoC)
Model	CV75
Memory	2 GB RAM, 8 GB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Video
Video compression	H.264 (Main, High), H.265 (Main), Motion JPEG
Resolution	16:9 up to 3840x2160; 4:3 up to 1440x1080
Frame rate	Up to 12/15 fps in 8 MP mode; up to 25/30 fps in 4 MP mode
Video streaming	Multiple, individually configurable streams; Zipstream; VBR/ABR/MBR
WDR	Forensic WDR, up to 120 dB depending on scene
Multi-view streaming	2 individually cropped view areas
Image settings	Saturation, contrast, brightness, sharpness, white balance, day/night threshold, exposure mode, compression, rotation (0°/90°/180°/270° incl. corridor format), mirroring, privacy masks, scene profiles (forensic, vivid)
Pan/Tilt/Zoom	Digital PTZ
Network
Network protocols	IPv4, IPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS, UPnP®, SNMP v1/v2c/v3, DNS/DNSv6, DDNS, NTP, NTS, PTP, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog
System Integration
API	Open API including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); one-click cloud connection; ONVIF® Profile G, M, S, T
Video management systems	Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and Axis partner VMS
Event conditions	Audio analytics thresholds, device status, edge storage status, I/O, MQTT, scheduled events, video tampering/bitrate degradation
Event actions	Day-night mode, illumination control, LED flash, MQTT publish, notifications, overlay text, recordings, security actions, SNMP traps, image/clip uploads
Analytics
Applications included	AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection
Applications supported	AXIS Camera Application Platform (ACAP) third-party apps
AXIS Object Analytics	Object classes: humans, vehicles (cars, buses, trucks, bikes, other) · Scenarios: line crossing, object/time in area, crossline counting, occupancy, tailgating, PPE monitoring (beta), motion in area · Up to 10 scenarios
AXIS Audio Analytics	Sound pressure level, adaptive audio detection, audio classification: scream, shout, glass break, speech, coughing fit
AXIS Scene Metadata	Object classes: humans, faces, vehicles, license plates; attributes include vehicle color, clothing color, bag, confidence, position
Cybersecurity
Edge security	Signed OS, brute force delay protection, digest authentication, OAuth 2.0, password protection, Axis Cryptographic Module (FIPS 140-2 level 1)
Hardware security	Axis Edge Vault cybersecurity platform; secure keystore (CC EAL 6+, FIPS 140-3 Level 3), system-on-chip security (TEE); Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit)
Network security	IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security, X.509 Certificate PKI, host-based firewall
General
Casing	IP42- and IK08-rated, polycarbonate hard-coated dome, color white (NCS S 1002-B)
Power	PoE IEEE 802.3af/802.3at Type 1 Class 3; max 5.9 W, typical (heater off, IR off) 3.4 W; dynamic power mode, power meter
Wireless interface	Bluetooth® 5.4 Low Energy for direct installation view via AXIS Installer app
Sensor	Acoustic sensor
IR illumination	OptimizedIR, 850 nm LEDs, range of reach 15 m (49 ft) or more
Connectors	Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
Storage	microSD/microSDHC/microSDXC, optional AES-XTS-Plain64 256-bit encryption, NAS recording supported
Operating conditions	0 °C to 45 °C (32 °F to 113 °F), humidity 10–85% RH (non-condensing)
Storage conditions	-40 °C to 65 °C (-40 °F to 149 °F), humidity 5–95% RH (non-condensing)
Weight	206 g (0.45 lb)
Box content	Camera, installation guide, owner authentication key
System tools	AXIS Site Designer, AXIS Device Manager, AXIS Installer, product selector, accessory selector, lens calculator
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Warranty	5-year warranty
Software support	New feature development until 2030 (AXIS OS 12, 13, 14); support until 2035-12-31 (AXIS OS LTS 2030–2035)
Optional accessories	AXIS D6210 Air Quality Sensor, AXIS T8415 Wireless Installation Tool, AXIS TM3401/TM3101 mounts, AXIS T91/T94 mounting accessories, AXIS Surveillance Cards, smoked dome

Note on this specification table: This table is built directly from the AXIS M3098-LV's own current datasheet PDF. Unlike the M3085-V datasheet used earlier in this project, this revision already lists AXIS Live Privacy Shield and AXIS Scene Metadata among the included applications, so there is no feature gap to flag here. One caveat: Axis presents overall product dimensions only as a drawing in the datasheet PDF, not as extractable text, so height/width/depth are left blank rather than estimated. Weight (206 g / 0.45 lb) is confirmed and included below.
