2N IP Verso Keypad, Bluetooth and Secured RFID Reader, 02782-001

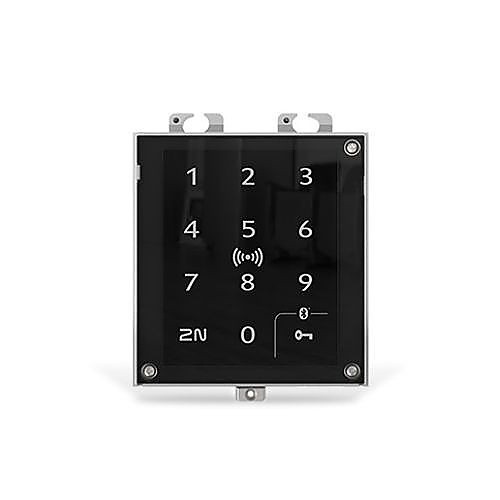

2N IP Verso Touch Keypad, Bluetooth and Secured RFID Reader

The 2N IP Verso Touch Keypad, Bluetooth and Secured RFID Reader combines PIN, phone and card entry in one module. 2N describes it as the backup-PIN, mobile and card option in one slot: the capacitive keypad can be used alone or as the second factor, Bluetooth handles smartphone credentials, and the RFID reader takes 125 kHz cards plus secured 13.56 MHz formats, including 2N PICard.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Three Credentials, One Module Slot

Mobile access, a PIN keypad and a card reader normally need separate parts. Here they share a single module position, which leaves room in the frame for a display, buttons or other modules. The PIN pad also works as the second factor on doors that require two checks.

Reader Details

The secured reader adds MIFARE DESFire, HID SE Seos, iClass and MIFARE SE on top of the standard formats, and reads PACS IDs from HID iClass cards with an SIO object. Bluetooth range is typically about 3 m in short mode and 10 m in long mode, but 2N notes that this varies by phone model and installation.

Compatible Products

Compatible 2N intercoms available at Affinitech Store:

• 2N IP Verso 2.0 Main Unit with Camera, Nickel (02907-001)
• 2N IP Verso 2.0 Main Unit with Camera, Black (02908-001)
• 2N IP Verso 2.0 Audio-Only Main Unit, Nickel (03482-001)
• 2N IP Verso 2.0 Audio-Only Main Unit, Black (03483-001)
• 2N LTE Verso Main Unit with Camera, Black (01791-001)
• 2N LTE Verso Main Unit with Camera, Nickel (01792-001)

Related Products

Other IP Verso modules and mounting parts available at Affinitech Store:

• 2N IP Verso Touch Keypad (01277-001)
• 2N IP Verso Fingerprint Reader (01276-001)
• 2N IP Verso 1-Module Flush Frame, Nickel (01278-001)
• 2N IP Verso 2-Module Flush Frame, Nickel (01280-001)

Explore More

• Browse Readers at Affinitech Store
• Browse all Access Control products at Affinitech Store
• See Network Door Stations and Intercoms

Frequently Asked Questions About 2N IP Verso Touch Keypad, Bluetooth and Secured RFID Reader

What is in this module?

A touch keypad, a Bluetooth reader for smartphone credentials and a multi-frequency RFID reader, all on one 2N IP Verso module.

Can the keypad be a second factor?

Yes. 2N describes the PIN pad as usable alone or as two-factor authentication together with a card or phone.

How does Bluetooth access work?

The phone unlocks via tap in the app, touch mode or by presenting a card; Bluetooth 5.0 (BLE) compatible with about 3 m or 10 m range depending on setup.

Which card formats are read?

125 kHz EM4xxx and HID Prox, plus secured 13.56 MHz types (MIFARE DESFire, HID SE Seos, iClass, MIFARE SE), and 2N PICard.

Which 2N products does it fit?

2N lists IP Verso 2.0 and LTE Verso for this secured version.

Which phone operating systems are supported?

Android 12, iOS 18.0, visionOS 2.0 and watchOS 11.2 or later.

Is there a non-keypad version?

Yes. The Bluetooth-only reader modules are 02778-001 (standard) and 02444-001 (secured).
