2N Access Unit M 125 kHz and 13.56 MHz RFID Reader, 02910-001

2N Access Unit M 125 kHz and 13.56 MHz RFID Reader – Two RFID Frequencies, Built-In Controller

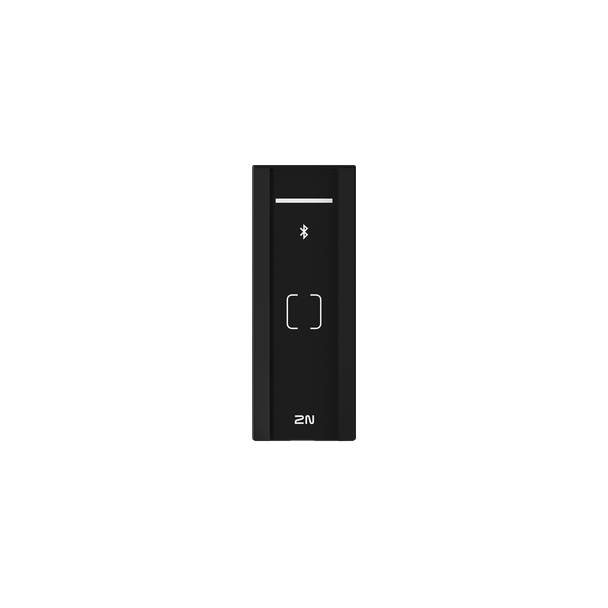

The 2N Access Unit M 125 kHz and 13.56 MHz RFID Reader (02910-001) is a slim 125 kHz and 13.56 MHz RFID reader with a built-in door controller, in a tempered glass and rugged plastic body. This version of the slim Access Unit M reads both 125 kHz and 13.56 MHz cards, so a door-frame installation does not force a card swap. The controller is built in and the unit comes with a roughly 3 m Ethernet pigtail. It runs on PoE or 12 V DC and is rated IP55 and IK7.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the 2N Access Unit M?

• Slim profile made for door frames and narrow mullions
• Reader and controller in one unit with a built-in tamper switch
• Roughly 3 m Ethernet pigtail that can be pulled through the frame to the ceiling
• Tempered glass front with a rugged plastic body, rated IP55 and IK7
• PoE (802.3af, Class 0) or 12 V DC power
• Operates from -40 °C to 60 °C

Built for Door Frames

At 1.97 x 5.24 x 1.06 in the unit is much narrower than a standard Access Unit 2.0, and 2N shows it installed in a door frame with the Ethernet pigtail pulled up to the ceiling. For walls, flush and surface installation boxes are available (the 2N documents list the boxes as 02940-001 flush and 02932-001 surface).

Credentials This Version Reads

The 125 kHz side reads EM4x02 cards. The 13.56 MHz side reads ISO14443A, ISO14443B, PicoPass (HID iClass CSN), FeliCa and ST SR cards plus 2N PICard credentials, with MIFARE DESFire read by CSN only; NFC phone credentials use the My2N app.

Door Control I/O

The unit switches a lock through a passive NO/NC contact rated 30 V, 1 A AC/DC or an active 8-12 V DC output of up to 600 mA, accepts two inputs for an exit button and door contact, and has a built-in tamper switch.

Typical Applications

• Glass and aluminum door frames
• Office suites and coworking spaces
• Apartment building entrances
• Meeting rooms and secured storage

Compatible Accessories

Compatible accessories for the 2N Access Unit M, available at Affinitech Store:

• 2N Security Relay
• 2N Magnetic Door Contact
• 15 W 1-Port PoE Midspan (T8120)

Compare 2N Access Unit Readers

Explore More

• Browse all Access Control Readers at Affinitech Store
• See the full Access Control collection
• See Network Door Stations and Intercoms

Frequently Asked Questions About 2N Access Unit M 125 kHz and 13.56 MHz

What is the 2N Access Unit M?

It is 2N's slim access reader with a built-in controller, designed for door frames. This order number is the 125 kHz and 13.56 MHz version with a roughly 3 m Ethernet cable.

Which credentials does this version read?

125 kHz cards and 13.56 MHz cards and NFC phones.

Does it need a separate controller?

No. It is a reader and controller in one, with a relay output, two inputs and a tamper switch.

How long is the Ethernet cable?

This version has a roughly 3 m Ethernet pigtail. 2N's specification table prints the figure as 29 m, which conflicts with its own feature text and manual, so treat 3 m as the cable length.

How is it powered?

By PoE (IEEE 802.3af, Class 0, 12.95 W) or a 12 V / 3 A DC supply.

What are the protection ratings?

IP55 and IK7, with an operating range of -40 °C to 60 °C at 10 to 95 percent humidity, non-condensing.

How does it mount?

In a door frame with the pigtail pulled through to the ceiling, or on a wall using a flush or surface installation box.

How big is it?

About 1.97 x 5.24 x 1.06 in and 500 g (1.1 lb).

How is it different from the 2N Access Unit 2.0?

The Access Unit M is a slimmer, glass-fronted unit with IP55 and a 3 m cable pigtail, while the Access Unit 2.0 uses 2N IP Verso frames and modules. Their accessories are not interchangeable.
