2N Access Unit M Surface Installation Box Spacer, 02932-001

2N Access Unit M Surface Installation Box (Spacer)

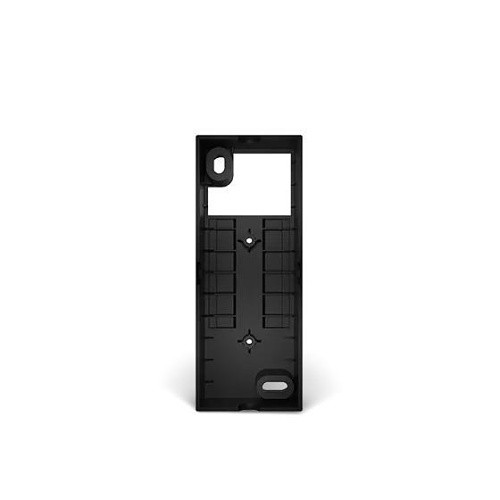

The 2N Access Unit M Surface Installation Box is a spacer that sits between the wall and a 2N Access Unit M reader, creating a cavity where the cables can be terminated. It is the answer for walls that cannot be drilled or chased, such as the concrete wall of a garage, because the reader is always surface mounted and the cabling has to go somewhere behind it. Where the wall can be cut, the matching flush installation box (02940-001) is the alternative.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Where It Fits in the Installation

The Access Unit M is a slim reader meant for door frames and walls, and 2N points out that it is always mounted on the surface of the wall. This box raises the reader slightly off the wall and gives the installer a pocket to land the Ethernet cable and the lock and sensor wiring. 2N's installation manual describes it as the surface counterpart to the flush box, which is built into the wall.

Compatible Products

2N Access Unit M readers available at Affinitech Store:

• 2N Access Unit M 13.56 MHz NFC RFID Reader (02909-001)
• 2N Access Unit M 125 kHz and 13.56 MHz RFID Reader (02910-001)
• 2N Access Unit M Bluetooth and RFID Reader (02911-001)
• 2N Access Unit M Touch Keypad and RFID Reader (02912-001)

Related Products

• 2N Access Unit M Flush Installation Box (02940-001), the in-wall alternative

Explore More

• Browse all Access Control products at Affinitech Store
• See Network Door Stations and Intercoms

Frequently Asked Questions About 2N Access Unit M Surface Installation Box

What is the 2N Access Unit M Surface Installation Box?

A spacer-style mounting box that gives a 2N Access Unit M reader a cavity behind it for terminating cables when the wall cannot be cut.

When should I choose it over the flush box?

Choose it on solid walls such as concrete, where cutting a hole is impractical. The flush box (02940-001) is meant for walls where a hole is easy to cut, such as brick.

Which readers does it fit?

The 2N Access Unit M readers: 02909-001, 02910-001, 02911-001 and 02912-001.

Does it work with the 2N Access Unit 2.0?

2N documents this box for the Access Unit M. Do not assume it fits the Access Unit 2.0 or other 2N readers.

Does the reader mount on the surface or in the wall?

2N states that the Access Unit M reader is always surface mounted; the box only supplies the space behind it.

Are the size and weight listed here those of the box itself?

No. The weight and dimensions shown are packaging figures from Axis product data, so the box itself is smaller.
