Description

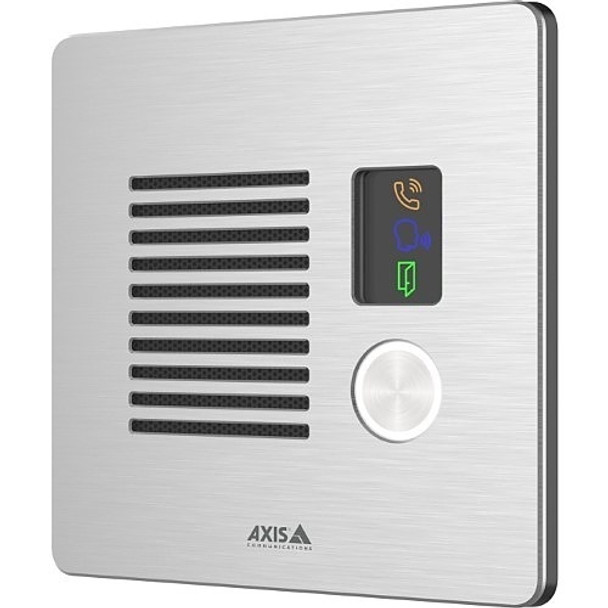

AXIS I7010-VE Network Intercom – Anti-Ligature Audio Intercom, 92 dB, IK10

The AXIS I7010-VE is a compact, camera-free network audio intercom with a 92 dB speaker, echo cancellation and noise reduction, built into an anti-ligature, IK10-rated stainless steel and zinc casing. Because there is no camera, it suits locations where privacy matters, while IP66/IP69 and NEMA 4X ratings, a -40 °C to 60 °C operating range and a 2-gang form factor let it work indoors and out at entrances, help points and secure facilities.

Key Specifications

Device type	Audio-only network intercom (no camera)
Max sound pressure	92 dBSPL at 1 m (39 in)
Audio	Two-way full duplex; echo cancellation, noise reduction, wind reduction, beamforming
Microphones	2x built-in (can be disabled), plus line input
VoIP / integration	SIP peer to peer or SIP/PBX; VAPIX and ACAP
Entry control	1 relay (30 V, 0.7 A), 2 supervised I/Os, RS485 for OSDP reader
Entry list	Integrated, up to 50 credentials
Power	PoE Type 1 Class 3 (max 12.7 W) or Type 2 Class 4 (max 25.5 W)
IP / vandal rating	IP66, IP69, NEMA 4X, IK10; anti-ligature
Operating temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Mounting	US 2-gang or 4-inch square box, recessed or wall mount
Warranty	5-year Axis warranty

Full specifications are listed in the Detailed Specifications tab.

Why Choose the AXIS I7010-VE?

No camera, so conversations can be offered where video is not allowed
Loud, clear 92 dB audio with echo cancellation and noise reduction
Anti-ligature casing with no visible screws; the cover snaps on
IK10, IP66, IP69 and NEMA 4X rated for harsh indoor and outdoor sites
SIP for IP phone systems, with parallel and sequential call forking
Relay, supervised I/Os and an OSDP reader port for door control
Axis Edge Vault hardware-based cybersecurity
Fits standard US 2-gang boxes for fast installation

Clear Audio Without a Camera

The built-in speaker reaches 92 dBSPL at 1 m, and two beamforming microphones with echo cancellation, noise reduction and wind reduction keep both sides of a call intelligible near traffic, machinery or crowds. Full-duplex streaming supports natural conversation, and a line input connects external audio sources. With no image sensor at all, the AXIS I7010-VE is a good choice for restrooms, patient areas, cells or any location where video recording is not permitted.

Built for High-Security and Harsh Environments

The stainless steel and zinc casing is anti-ligature to help prevent self-harm, IK10-rated against impact and IP66/IP69 and NEMA 4X rated against water, dust and high-pressure washdown. It passes ISO 21207 (Method B) corrosion testing and operates from -40 °C to 60 °C in condensing humidity. Replacement face plates and glass kits keep units in service after damage.

Open Integration for Calls and Door Control

SIP support connects the intercom peer to peer or through a SIP/PBX to IP phones and answering units such as the AXIS I5304 Network Answering Unit, and it has been tested with Cisco, Grandstream, Avaya and Asterisk. VAPIX and ACAP integrate it with AXIS Camera Station and partner VMS. The I/O port can be switched to an RS485 reader port for OSDP readers, an integrated entry list stores up to 50 credentials, and the relay or the optional AXIS A9801 Security Relay drives the door lock. It can also be paired with an Axis camera through edge-to-edge technology for visual verification.

Built-In Cybersecurity

Axis Edge Vault provides a secure element (CC EAL 6+), system-on-chip security, Axis device ID, a secure keystore, secure boot and an encrypted filesystem. Signed OS, IEEE 802.1X, MACsec, HTTPS/HSTS, TLS 1.2/1.3 and a host-based firewall protect the device and the network, and the datasheet lists ETSI EN 303 645 and FIPS 140.

Typical Applications

Correctional facilities, holding cells and psychiatric wards
Help points and emergency call stations in parks, campuses and transit
Building and gate entrances where video is not wanted
Healthcare, restroom and privacy-sensitive areas
Parking garages and loading docks

Compatible Accessories

Compatible accessories for the AXIS I7010-VE, available at Affinitech Store:

Need a complete help point? The AXIS I9410 Help Point Kit bundles the AXIS I7010-VE with the TI9400 Help Point and TI7301 Adapter Plate under one part number.

Compare AXIS Network Intercoms

Model	Video	Type	Best for
AXIS I8016-LVE	5 MP, 150° view, 940 nm IR	Anti-ligature video intercom, IK10	Gates, correctional and high-security sites
AXIS I8116-E	5 MP with WDR	Small video intercom	Office and residential entrances
AXIS A8207-VE Mk II	6 MP with RFID reader	Video door station	Entrances needing a reader at the door
AXIS I8307-VE	8 MP, 7-inch touch display, RFID reader	Video intercom with display	Lobbies and visitor management
AXIS I7010-VE (this intercom)	No camera, 92 dB audio	Audio-only intercom, IK10	Privacy-sensitive help points
AXIS I7010-VE Safety	No camera, 92 dB audio, orange RAL 2004	Audio-only safety intercom, IK10	Emergency call points and help points
AXIS I7020	No camera, 85 dB audio	Cleanable indoor audio intercom	Clean rooms, labs and healthcare

Explore More

Browse all Network Door Stations and Intercoms at Affinitech Store
See Network Door Controllers for entry control
See the full Access Control collection
More from AXIS

Frequently Asked Questions About AXIS I7010-VE

Does the AXIS I7010-VE have a camera?

No. It is an audio-only intercom, which makes it suitable for locations where video is not allowed. It can be paired with a separate Axis camera through edge-to-edge technology.

How loud is the speaker?

The built-in speaker reaches up to 92 dBSPL at 1 m (39 in), with echo cancellation, noise reduction, wind reduction and beamforming microphones.

Is it anti-ligature?

Yes. The stainless steel and zinc casing is anti-ligature with no visible screws, which suits correctional and psychiatric facilities.

Can it be installed outdoors?

Yes. It is IP66, IP69, NEMA 4X and IK10 rated and operates from -40 °C to 60 °C (-40 °F to 140 °F) at 10-100% RH, condensing.

How is it mounted?

Recessed in a US 2-gang or 4-inch square installation box or the AXIS TI8202 Recessed Mount, or on a wall with the AXIS TI8602 Wall Mount; add the AXIS TI8603 Conduit Adapter for conduit.

Does it support SIP?

Yes. It supports SIP peer to peer or through a SIP/PBX, with SRTP, SIPS, SIP TLS, DTMF and parallel or sequential call forking.

How does it control a door?

Through its relay (30 V, 0.7 A), two supervised I/Os, the AXIS A9801 Security Relay, or an OSDP reader on the RS485 port. An integrated entry list holds up to 50 credentials.

How is it powered?

By PoE IEEE 802.3af/802.3at Type 1 Class 3 (max 12.7 W) or IEEE 802.3at Type 2 Class 4 (max 25.5 W). Power out (4.8 W) is available with Class 4.

Can it be used as a help point?

Yes. Mount it in the AXIS TI9400 Help Point with the AXIS TI7301 Adapter Plate, or order the complete AXIS I9410 Help Point Kit.

Does it support local recording?

Yes. It supports microSD, microSDHC and microSDXC cards with encryption, plus recording to network-attached storage.

What warranty does it have?

A 5-year Axis warranty.

View AllClose

Detailed Specifications

AXIS I7010-VE Specifications

Specification	Details
System on Chip (SoC)
Model	CV25
Memory	2 GB RAM, 1 GB Flash
Audio
Audio features	Echo cancellation, noise reduction, wind reduction, beamforming
Audio streaming	Two-way (full duplex)
Audio input	2x built-in microphones (can be disabled), line input
Audio output	Built-in speaker, max 92 dBSPL (at 1 m / 39 in)
Audio encoding	LPCM 16 kHz, AAC 8/16 kHz, G.711 A-law, G.711 µ-law, G.722, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz; configurable bit rate
Lock Control
Lock integration	AXIS A9801 Security Relay: 350 mA at 12 V DC; OSDP reader integration
Entry list	Integrated entry list with up to 50 credentials
Network
Network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
System Integration
Application Programming Interface	Open API for software integration, including VAPIX, metadata and AXIS Camera Application Platform (ACAP)
VoIP	Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. Tested with SIP software such as Cisco and Grandstream and PBX software such as Cisco, Avaya and Asterisk
Call forking	AXIS Parallel Call Forking, AXIS Sequential Call Forking
Supported SIP features	Secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN), contact list, parallel call forking, sequential call forking
Supported codecs	PCMU, PCMA, Opus, L16/16000, L16/8000, speex/8000, speex/16000, G.726-32, G.722
Video management systems	AXIS Companion, AXIS Camera Station and video management software from Axis Application Development Partners
Event conditions	Audio: audio detection, audio clip playing. Call: state, state change. Device status: above/below/within operating temperature, casing open, IP address blocked/removed, live stream active, new IP address, network lost, system ready, shock detected, RFID tag detected. Digital audio input status. Edge storage: recording ongoing, storage disruption, storage health issues detected. I/O: digital input/output, manual trigger, relay or digital output, virtual input. MQTT: subscribe. Scheduled and recurring: schedule
Event actions	Audio clips: play, stop. Calls: answer call, end call, make call. I/O: toggle I/O once, toggle I/O while the rule is active. LEDs: flash status LED, flash status LED while the rule is active. MQTT: publish. Notification: HTTP, HTTPS, TCP and email. Recordings: SD card and network share. Security: erase configuration. SNMP traps: send, send while the rule is active
Analytics
Applications included	Active tampering alarm, audio detection
Application support	AXIS Camera Application Platform, enabling installation of third-party applications
Approvals
Product markings	CSA, UL/cUL, CE, KC, VCCI, RCM
Supply chain	TAA compliant
EMC	CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2; Australia/New Zealand: RCM AS/NZS CISPR 32 Class A; Canada: ICES(A)/NMB(A); Japan: VCCI Class A; Korea: KS C 9835, KS C 9832 Class A; USA: FCC Part 15 Subpart B Class A
Safety	CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3
Environment	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP69, IEC/EN 62262 IK10, ISO 21207 (Method B), NEMA 250 Type 4X
Cybersecurity
Standards	ETSI EN 303 645, FIPS 140
Edge security	Software: signed OS, brute force delay protection, digest authentication, OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection. Hardware: Axis Edge Vault cybersecurity platform with secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit)
Network security	IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 certificate PKI, host-based firewall
Documentation	AXIS OS Hardening Guide, Axis Vulnerability Management Policy, Axis Security Development Model, AXIS OS Software Bill of Material (SBOM)
General
Casing	Anti-ligature; IP66/IP69-, NEMA 4X- and IK10-rated; stainless steel and zinc casing
Color	Black NCS S 9000-N
Mounting	Recessed: US 2-gang or 4-inch square installation boxes, or AXIS TI8202 Recessed Mount. Wall: AXIS TI8602 Wall Mount. Wall with conduit: AXIS TI8602 Wall Mount and AXIS TI8603 Conduit Adapter
Power, PoE IEEE 802.3at Type 2 Class 4	Typical 3 W, max 25.5 W; power out 4.8 W
Power, PoE IEEE 802.3af/802.3at Type 1 Class 3	Typical 3 W, max 12.7 W; power out disabled
Relay rating	30 V, 0.7 A
Connectors	Network: shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE. I/O: terminal block for two configurable supervised inputs/digital outputs (12 V DC output, max load 50 mA) and one relay. Audio: 4-pin terminal block for audio input and output. Serial: RS485, half duplex/2-wire (shares one connector with I/O)
Storage	Support for microSD/microSDHC/microSDXC card and SD card encryption (AES-XTS-Plain64 256-bit); recording to network-attached storage (NAS)
Operating conditions	-40 °C to 60 °C (-40 °F to 140 °F); humidity 10-100% RH (condensing)
Storage conditions	-40 °C to 65 °C (-40 °F to 149 °F); humidity 5-95% RH (non-condensing)
Weight	890 g (2.0 lb)
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Box Content
Included	Intercom, installation guide, RESISTORX L-key, terminal block connector, owner authentication key
Optional Accessories
Optional accessories	AXIS TI8202 Recessed Mount, AXIS TI8602 Wall Mount, AXIS TI8603 Conduit Adapter, AXIS TI8906 Glass Replacement Kit, AXIS TI8905 Face Plate Replacement, AXIS A9801 Security Relay
System Tools
System tools	AXIS Site Designer, AXIS Device Manager, product selector, accessory selector
Warranty
Warranty	5-year warranty
