2N IP Style 10-Inch Touchscreen Video Intercom, Secured, 02407-001

2N IP Style 10-Inch Touchscreen Video Intercom – Secured Reader

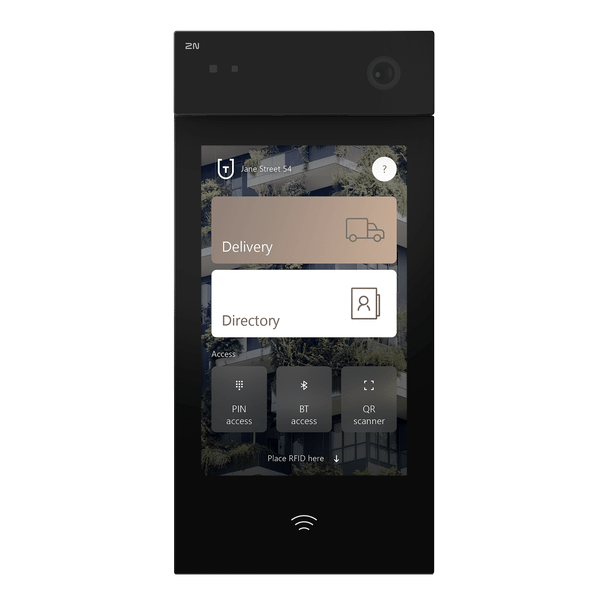

The 2N IP Style secured version (02407-001) is a 10.1-inch touchscreen video intercom whose embedded reader also handles secured 13.56 MHz credentials. Beyond the 5MP wide-angle camera, WDR, Bluetooth access with WaveKey and a 125 kHz and 13.56 MHz RFID reader found on every IP Style, this order number adds MIFARE DESFire, HID SE Seos and iCLASS PACS ID reading. It is rated IP65 and IK08 and installs on the surface or flush with the wall using separate boxes.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the 2N IP Style?

• 10.1-inch touchscreen with office and residential directory modes and up to 10,000 users
• 5MP wide-angle camera with forensic WDR and Adaptive Face Zooming
• Mobile access with Bluetooth WaveKey, plus RFID, PIN and QR code entry
• Secured 13.56 MHz reader for MIFARE DESFire, HID SE Seos and iCLASS PACS ID
• Bi-directional video, so hearing-impaired visitors can use sign language
• Patented tilt-out panel that frees both hands for cabling
• IP65 and IK08 rating with a hardened glass cover
• Backed by a 5-year 2N warranty

Touchscreen Directory and Calls

The 10.1-inch IPS display runs at 1280 x 800 with a 170° viewing angle and an on-screen keypad. Two display modes, office and residential, let you present a name list or a tenant directory of up to 10,000 users. Two microphones and two 4 W speakers handle calls, with echo cancellation and automatic volume. 2N also highlights bi-directional video so people who use sign language can communicate through the door unit.

Camera and Face Zooming

The 5MP wide-angle camera records up to 2560 x 1920 and offers forensic WDR, infrared and multiple simultaneous streams in H.264, H.265, MJPEG and Zipstream. Adaptive Face Zooming detects faces and zooms in, and the 138° by 114° view covers the visitor and their surroundings.

Access Control Options

This secured order number reads 13.56 MHz secured credentials, including MIFARE DESFire EV2/EV3 through 2N PICard technology, HID SE (Seos, iCLASS, MIFARE SE) and PACS ID from iCLASS cards with SIO objects, along with the 125 kHz and standard 13.56 MHz types. Bluetooth 5.0 LE with WaveKey supports touch, tap-in-app, card and motion modes, and the My2N app supports Android 6 and iOS 12 or later.

Installation

The unit weighs 1,950 g and measures 6.693 x 13.976 in with a depth of 1.575 in surface-mounted or 0.866 in flush. Axis product data points to the surface box 02406-001 and the flush box 02405-001. Power is 12 V DC at 4 A or PoE+ 802.3at Class 4 (25.5 W), so a 15 W midspan will not be enough. A mechanical tamper switch is built in.

Typical Applications

• Apartment building lobbies
• Office and corporate entrances
• Campuses and healthcare facilities
• Retrofit entrances using the cover plates
• Residential gates with a tenant directory

Compatible Accessories

Compatible accessories for the 2N IP Style, available at Affinitech Store. The mounting boxes are listed afterwards as plain text:

• 2N External IP Relay, 1 Output and 1 Input (01397-001)
• 2N External IP Relay, 4 Outputs (01398-001)
• 2N Security Relay (01386-001)
• 2N Magnetic Door Contact (01388-001)
• AXIS A9210 Network I/O Relay Module (02861-001)
• 2N Wiegand Module (01259-001)
• 2N EM4100 RFID Card, 125 kHz (01395-001)
• 2N EM4100 RFID Key Fob, 125 kHz (01396-001)
• 2N Mifare Classic 1K RFID Key Fob, 13.56 MHz (01385-001)
• Flush box 02405-001 and surface box 02406-001 (required for mounting): not yet carried
• Retrofit cover plates 03672-001 and 03673-001, OSDP module 02577-001, exit button 02523-001, PoE+ injector 02445-001 and MIFARE DESFire EV3 cards and fobs 02787-001 and 02788-001: not yet carried

Compare 2N IP Intercoms

Need the other reader version? The 2N IP Style standard order number is without secured-card support (02521-001).

Explore More

• Browse all Network Door Stations at Affinitech Store
• Shop Access Control Readers at Affinitech Store
• See the full Access Control collection

Frequently Asked Questions About 2N IP Style

What is the difference between 02407-001 and 02521-001?

02407-001 is the secured version, whose embedded 13.56 MHz reader also handles secured credentials such as MIFARE DESFire, HID SE Seos and iCLASS PACS ID. 02521-001 is the standard version of the same intercom.

How big is the touchscreen?

10.1 inches, IPS, 1280 x 800, with a 170° viewing angle and an on-screen numeric keypad.

What camera does the IP Style have?

A 5MP wide-angle camera with forensic WDR and infrared, up to 2560 x 1920 (4:3) or QHD (16:9) at 30 fps and a 138° by 114° view.

How is it powered?

By PoE+ 802.3at (Class 4, 25.5 W) or by a 12 V DC supply at 4 A.

What mounting boxes are required?

Axis product data states it suits surface (02406-001) or flush (02405-001) installation. The boxes are sold separately.

Does it have a built-in card reader?

Yes. The embedded reader covers 125 kHz and 13.56 MHz and there is Bluetooth 5.0 LE access with WaveKey. Card support depends on the order number, so confirm your credentials.

How many directory entries can it hold?

The directory supports up to 10,000 users in office or residential display mode.

What is the weather rating?

IP65 and IK08 with a hardened white glass cover. Operating range is -30 °C to 60 °C (-22 °F to 140 °F).

Can it control doors?

Yes. It has an NC/NO relay rated 30 V, 1 A, three passive or active inputs, an active 12 V output up to 600 mA and a built-in tamper switch.

What warranty does 2N list?

2N lists a 5-year warranty for the IP Style. Full terms are on the 2N warranty page.
