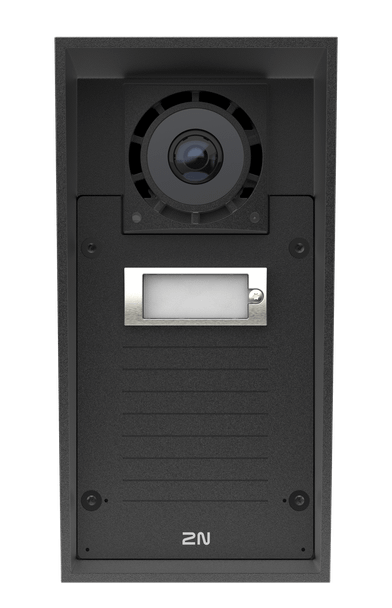

2N IP Force 2.0 1-Button Video Intercom with 5MP Camera, 03361-001

2N IP Force 2.0 1-button video Intercom – IP69, IK10, 10 W Audio, 5MPx Camera

The 2N IP Force 2.0 1-button video is a second-generation, vandal-resistant IP intercom with one call button and a 5MPx camera. A 5MPx camera with wide-angle optics, WDR and infrared lighting shows who is at the door, while a 10 W speaker, two microphones and noise suppression keep the conversation clear. Its aluminium body is rated IP69 and IK10, it runs on PoE+ or 12 V DC, and it is aimed at gates, industrial sites and building entrances.

This is the 2N IP Force 2.0 generation (order number 03361-001). It is not interchangeable with the first-generation 2N IP Force; accessories and modules below are the ones 2N lists for IP Force 2.0.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the 2N IP Force 2.0 One-button video Model?

• 5MPx camera with Adaptive Face Zooming, WDR and night vision for clear visitor identification
• QR code reading for visitor access, powered by the ARTPEC-8 processor
• Two microphones with noise cancellation and adaptive speaker volume for intelligible calls outdoors
• IP69 and IK10 body for rain, dust, wash-down and impact
• Gigabit PoE+ or 12 V DC power, with a tamper-aware security relay available for lock circuits
• SIP 2.0 with SIPS and SRTP, plus ONVIF, SNMP and 802.1x for network integration
• Secure boot, signed firmware and a secure key store
• 5-year warranty stated by 2N

Built for the Weather and for Abuse

The housing is ADC12 aluminium with chromate treatment and a powder-coated finish. 2N specifies an IP69 cover rating, IK10 for the body and IK08 for the camera and front panel, and an operating range of -30 °C to +55 °C at 10% to 95% non-condensing humidity. A protective dome over the camera is there to resist shattering.

Clear Audio at a Noisy Door

Two integrated microphones, acoustic echo cancellation and a 10 W / 4 Ω amplifier and speaker deliver up to 94 dB at 1 m. 2N quotes a Speech Transmission Index of 0.89, adaptive volume that follows ambient noise, and automatic audio-loop tests. Codecs include G.711, G.729, G.722 and L16/16 kHz over SIP (UDP, TCP or TLS) with RTP or SRTP.

Identification and QR Access

The camera has a 1.935 mm lens, a 133° by 112° view and a minimum illumination of 0.1 lux without IR. It streams up to 2560 x 1920 at 30 fps in H.264 or H.265 with Zipstream, or 1280 x 960 at 15 fps in MJPEG, and supports ONVIF Profile S and T. Adaptive Face Zooming helps frame the visitor, and QR codes assigned through the My2N App or a management platform can be read for access. An external IP camera can be added (H.264, up to 1280 x 720 at 30 fps).

Door Control, Connectivity and Management

A solid-state relay (30 V, 1 A AC/DC), a 12 V / 0.6 A active switch output and three configurable inputs handle locks and sensors, and a VBus connector accepts Verso 2.0 modules. Settings can be made through the web interface, the My2N Management Platform or 2N Access Commander.

Typical Applications

• Gates, industrial sites and building entrances
• Industrial and logistics sites
• Schools, campuses and public buildings
• Parking facilities and perimeter gates
• Residential and mixed-use complexes

Compatible Accessories

Compatible accessories for the 2N IP Force 2.0. Linked items are available at Affinitech Store; contact us for the others:

• 2N IP Force Brick Flush Mounting Box (01348-001)
• 2N IP Force Plasterboard Flush Mounting Box (01349-001)
• 2N IP Force Security Screws (01345-001)
• 2N Gooseneck Stand (01351-001)
• 2N Double Gooseneck Stand (01550-001)
• 2N Installation Adapter for IP Force and IP Safety (01352-001)
• 2N Additional Switch and Tamper (01350-001)
• 2N Security Relay (01386-001)
• 2N External IP Relay, 1 Output, 1 Input (01397-001)
• 2N External IP Relay, 4 Outputs (01398-001)
• 2N IP Force 2.0 Camera Dome, 3 pcs (03516-001)
• 2N PoE+ Injector (02445-001)
• 2N 12 V Power Supply, US Adapter (02520-001)

Compare 2N IP Force 2.0 Intercoms

Looking for the first generation? The older 2N IP Force 1-button video intercom (01337-001) is a different model and not interchangeable with IP Force 2.0 parts.

Explore More

• Browse all Network Door Stations and Intercoms at Affinitech Store
• See the full Access Control collection
• See Readers for credential options

Frequently Asked Questions About the 2N IP Force 2.0 One-button video Model

What is the 2N IP Force 2.0 1-button video?

It is the one-button video version of the second-generation 2N IP Force intercom, order number 03361-001, with one call button and a 5MPx camera.

Does it have a camera?

Yes. It has a 5MPx camera with a 133° horizontal and 112° vertical view, WDR and infrared light.

Can it read QR codes?

Yes. QR code access is supported through the ARTPEC-8 based camera, with codes assigned in the My2N App or a management platform.

How tough is it?

The body is rated IP69 and IK10, with IK08 for the camera and front panel, and it operates from -30 °C to +55 °C.

How is it powered?

By PoE+ (IEEE 802.3at) over Gigabit Ethernet or by a 12 V / 4 A DC supply.

How loud is the speaker?

The 10 W / 4 Ω speaker reaches a maximum of 94 dB at 1 kHz and 1 m, with adaptive volume control.

Which protocols does it support?

SIP 2.0 with SIPS and SRTP, ONVIF, RTSP, RTP, HTTP and HTTPS, SNMP, TR069, 802.1x, SMTP, DHCP option 66, TFTP and Syslog.

How does it control a door?

Through a solid-state relay rated 30 V / 1 A AC/DC, a 12 V / 0.6 A active output and three inputs. A separate 2N Security Relay can be added for lock circuits.

Can I add a card reader?

This variant is not the card-reader-ready version. If you need RFID, look at the card-reader-ready versions in the compare table above.

Is it the same as the first-generation 2N IP Force?

No. IP Force 2.0 is a separate generation with its own order numbers and modules, so first-generation accessories should not be assumed to fit.

What warranty applies?

2N states a 5-year warranty for the IP Force 2.0 family.
