Hanwha Vision SLA-F2480HA 5MP, Height Strip with 2.45mm Lens

Brand: Hanwha Vision America
SKU:
SLA-F2480HA
Condition:
New
(No reviews yet) Write a Review
MSRP: $670.00
Price: $435.50
— You save $234.50

Description

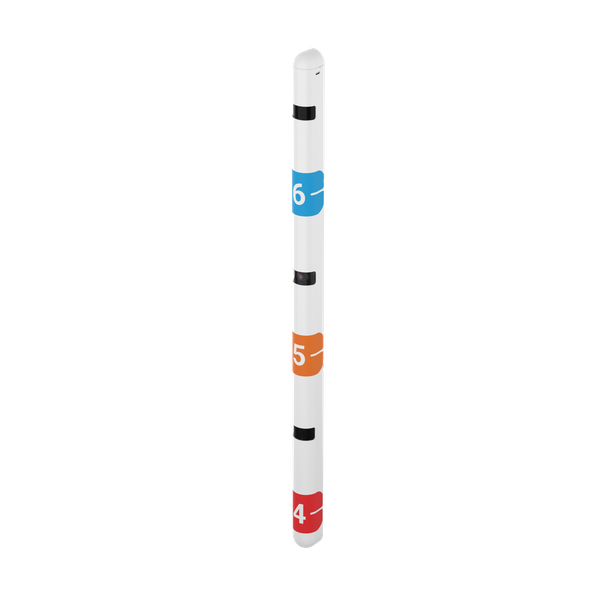

Hanwha Vision SLA-F2480HA – 5MP, Height Strip with 2.45mm Lens

The Hanwha Vision SLA-F2480HA is a 5MP, Height Strip with 2.45mm Lens. Highlights are listed below, and the full specifications are in the Detailed Specifications tab.

Key Specifications

Storage Condition - Temperature -50°C~+60°C(-58°F~+140°F)
Supported Products PNM-C20000QB
Product Dimensions 48x955x44mm(1.89x37.61x1.73"), Cable: 8m(26.2ft)
Product Weight 1,043g(2.30lb), Cable: 350g(0.77lb)

Full specifications are listed in the Detailed Specifications tab.

Highlights

  • 5MP
  • Height Strip with 2.45mm lens module
  • FoV (H:123°, V:91°)
  • Compatible with PNM-C20000QB
  • 8m (26ft) cable included
  • Indoor

Note: Compatible with PNM-C20000QB

Explore More

Frequently Asked Questions About Hanwha Vision SLA-F2480HA

What is the Hanwha Vision SLA-F2480HA?

5MP, Height Strip with 2.45mm Lens. 5MP, Height Strip with 2.45mm lens module, FoV (H:123°, V:91°), Compatible with PNM-C20000QB, 8m (26ft) cable included, Indoor

Where can I find the full specifications?

The full manufacturer specifications are listed in the Detailed Specifications tab.

View AllClose

Detailed Specifications

Hanwha Vision SLA-F2480HA Specifications

SpecificationDetails
Video
Imaging Device - Size1/2.8"
Imaging Device - TypeCMOS
Min. Illumination (Lux) - Color(1/30sec, 30IRE)0.08
Min. Illumination (Lux) - BW(1/30sec, 30IRE)0.08
Lens
Focal Length (mm)2.45
Max. Aperture Ratio (F number) - Wide2.0
Max. Aperture Ratio (F number) - Tele2.0
Angular Field of View - Horizontal123°
Angular Field of View - Vertical91°
Angular Field of View - Diagonal159°
Mount TypeRJ12 connected with main unit
Focus ControlFixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - PanFlexible panning ±30°
Environmental & Electrical
Operating Condition - Temperature-10°C ~ +55°C (+14°F ~ +131°F)
Operating Condition - Humidity0~95% RH
Storage Condition - Temperature-50°C~+60°C(-58°F~+140°F)
Storage Condition - HumidityLess than 90% RH
Mechanical
ColorWhite
MaterialPlastic
Product Dimensions48x955x44mm(1.89x37.61x1.73"), Cable: 8m(26.2ft)
Product Weight1,043g(2.30lb), Cable: 350g(0.77lb)
Supported ProductsPNM-C20000QB
Certification & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentNone, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
