Hanwha SLA-F2480BA 5MP, 2.45mm Lens, Bandit Barrier for PNM-C20000QB

Brand: Hanwha Vision America
SKU:
SLA-F2480BA
Condition:
New
(No reviews yet) Write a Review
MSRP: $960.00
Price: $624.00
— You save $336.00

Description

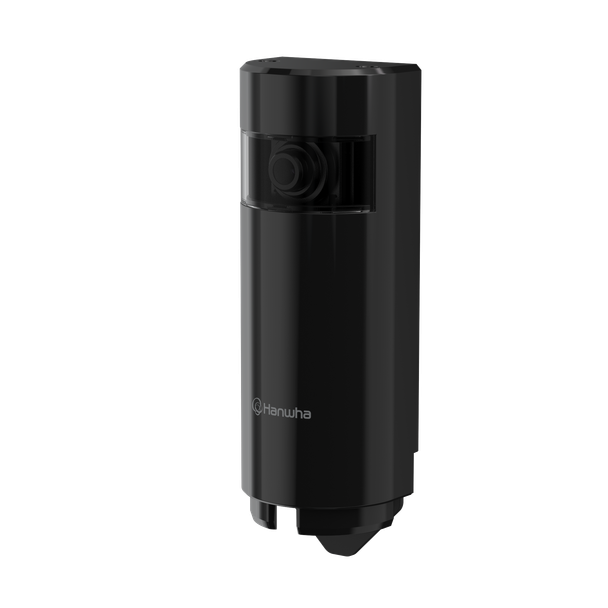

Hanwha Vision SLA-F2480BA – 5MP, 2.45mm Lens, Bandit Barrier for PNM-C20000QB

The Hanwha Vision SLA-F2480BA is a 5MP, 2.45mm Lens, Bandit Barrier for PNM-C20000QB. Highlights are listed below, and the full specifications are in the Detailed Specifications tab.

Key Specifications

Storage Condition - Temperature -50°C~+60°C(-58°F~+140°F)
Supported Products PNM-C20000QB
Product Dimensions Bandit Barrier: 66.5x46x175~688mm(2.62x1.81x6.89~27.09"), Cable: 8m(26.2ft)
Product Weight Bandit Barrier: 208~1,310g(0.46~2.89lb), Cable: 350g(0.77lb)

Full specifications are listed in the Detailed Specifications tab.

Highlights

  • 5MP
  • Bandit Barrier with 2.45mm fixed lens module
  • 0.08 Lux
  • FoV (H:123°, V:91°)
  • 8m (26ft) Lens cable included
  • Black color
  • Compatible with PNM-C20000QB

Note: Compatible with PNM-20000QB

Explore More

Frequently Asked Questions About Hanwha Vision SLA-F2480BA

What is the Hanwha Vision SLA-F2480BA?

5MP, 2.45mm Lens, Bandit Barrier for PNM-C20000QB. 5MP, Bandit Barrier with 2.45mm fixed lens module, 0.08 Lux, FoV (H:123°, V:91°), 8m (26ft) Lens cable included, Black color, Compatible with PNM-C20000QB

Where can I find the full specifications?

The full manufacturer specifications are listed in the Detailed Specifications tab.

View AllClose

Detailed Specifications

Hanwha Vision SLA-F2480BA Specifications

SpecificationDetails
Video
Imaging Device - Size1/2.8"
Imaging Device - TypeCMOS
Min. Illumination (Lux) - Color(1/30sec, 30IRE)0.08
Min. Illumination (Lux) - BW(1/30sec, 30IRE)0.08
Lens
Focal Length (mm)2.45
Max. Aperture Ratio (F number) - Wide2.0
Max. Aperture Ratio (F number) - Tele2.0
Angular Field of View - Horizontal123°
Angular Field of View - Vertical91°
Angular Field of View - Diagonal159°
Mount TypeRJ12 connected with main unit
Focus ControlFixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - PanFlexible panning ±30°
Environmental & Electrical
Operating Condition - Temperature-10°C ~ +55°C (+14°F ~ +131°F)
Operating Condition - Humidity0~95% RH
Storage Condition - Temperature-50°C~+60°C(-58°F~+140°F)
Storage Condition - HumidityLess than 90% RH
Mechanical
ColorBlack
MaterialPlastic
Product DimensionsBandit Barrier: 66.5x46x175~688mm(2.62x1.81x6.89~27.09"), Cable: 8m(26.2ft)
Product WeightBandit Barrier: 208~1,310g(0.46~2.89lb), Cable: 350g(0.77lb)
Supported ProductsPNM-C20000QB
Certification & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentNone, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
