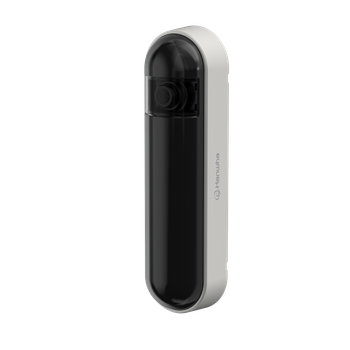

Hanwha Vision SLA-T4680DSA 2MP Door Jamb Lens Module

Brand: Hanwha Vision America
SKU:
SLA-T4680DSA
Condition:
New
(No reviews yet) Write a Review
MSRP: $280.00
Price: $182.00
— You save $98.00

Description

Hanwha Vision SLA-T4680DSA 2MP Door Jamb Lens Module

The Hanwha Vision SLA-T4680DSA is a 2MP door jamb lens module for the XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B. Door Jamb head with a 4.6mm lens; compatible with PNM-9000QB; and XNB-6002 (not included); cable length 8m (26 feet).

Key Specifications

Part number SLA-T4680DSA
Type Door Jamb Lens (silver)
Imaging Device - Size 1/2.8"
Imaging Device - Type CMOS
Min. Illumination (Lux) - Color(1/30sec, 30IRE) 0.06
Min. Illumination (Lux) - BW(1/30sec, 30IRE) 0.06
Focal Length (mm) 4.6
Max. Aperture Ratio (F number) - Wide 2.5
Max. Aperture Ratio (F number) - Tele 2.5
Angular Field of View - Horizontal 73°
Compatible with XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B

Full specifications are listed in the Detailed Specifications tab.

Compatible Cameras

The Hanwha Vision SLA-T4680DSA works with these models available at Affinitech Store:

Related Products

Explore More

Frequently Asked Questions About Hanwha Vision SLA-T4680DSA

What is the Hanwha Vision SLA-T4680DSA?

The Hanwha Vision SLA-T4680DSA is a 2MP door jamb lens module for the XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B.

Which cameras is the SLA-T4680DSA compatible with?

Hanwha Vision lists XNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B.

What are its dimensions?

Housing: 42.9(W)x33.0(H)x170.0(D)mm(1.69"x1.30"x6.69") Lens: 30(W)x27.9(H)x45(D)mm(1.18"x1.10"x1.77") Cable: 8m(26.2ft).

What is it made of?

Material: Plastic. Color: Silver.

Where can I find the full specifications?

The full manufacturer specifications are listed in the Detailed Specifications tab.

View AllClose

Detailed Specifications

Hanwha Vision SLA-T4680DSA Specifications

SpecificationDetails
Video
Imaging Device - Size1/2.8"
Imaging Device - TypeCMOS
Min. Illumination (Lux) - Color(1/30sec, 30IRE)0.06
Min. Illumination (Lux) - BW(1/30sec, 30IRE)0.06
Lens
Focal Length (mm)4.6
Max. Aperture Ratio (F number) - Wide2.5
Max. Aperture Ratio (F number) - Tele2.5
Angular Field of View - Horizontal73°
Angular Field of View - Vertical39°
Angular Field of View - Diagonal85°
Mount TypeRJ12 connected with main unit
Focus ControlFixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - PanFlexible panning ±30°
Environmental & Electrical
Operating Condition - Temperature-10°C ~ +55°C (+14°F ~ +131°F)
Operating Condition - HumidityLess than 90% RH
Storage Condition - Temperature-50°C~+60°C(-58°F~+140°F)
Storage Condition - HumidityLess than 90% RH
Mechanical
ColorSilver
MaterialPlastic
Product DimensionsHousing: 42.9(W)x33.0(H)x170.0(D)mm(1.69"x1.30"x6.69") Lens: 30(W)x27.9(H)x45(D)mm(1.18"x1.10"x1.77") Cable: 8m(26.2ft)
Product WeightHousing: 70g(0.15lb) Lens: 41g(0.09lb)
Supported ProductsXNB-6002, PNM-9000QB, PNM-C20000QB, XNB-A8004B
View AllClose

Additional Information

Data Sheet:
SLA-T4680DSA
