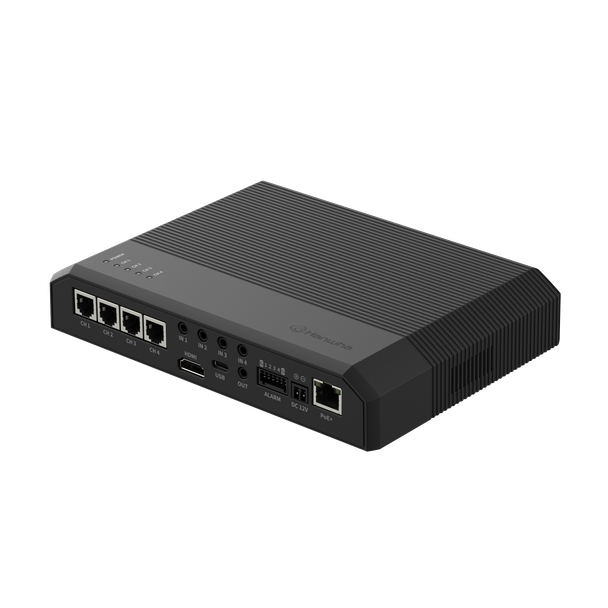

Hanwha Vision PNM-C20000QB AI Remote head 2MP/5MP x 4CH camera

Brand: Hanwha Vision America
SKU:
PNM-C20000QB
Condition:
New
(No reviews yet) Write a Review
MSRP: $1,600.00
Price: $1,040.00
— You save $560.00

Description

Hanwha Vision PNM-C20000QB – AI Remote head 2MP/5MP x 4CH camera

The Hanwha Vision PNM-C20000QB is an AI Remote head 2MP/5MP x 4CH camera built for classrooms, retail and offices. Wisenet P series network remote head camera 4CH x 2MP @ 30FPS or 4CH x 5MP @ 15FPS, Triple codec H.265/H.264/MJPEG, 120dB WDR, Analytics events based on AI engine: Classified object type: Person/Face/Vehicle/License plate, Attributes: Vehicle(Type and color: car/bus/truck/motorcycle/bicycle), Person (upper and bottom clothing color), IVA (Virtual line/Area, Enter/Exit, Loitering, Intrusion), Appear/Disappear, Business intelligence based on AI engine: People counting, Vehicle counting, Queue management, Heatmap, WiseNR Ⅱ(Based on AI engine), WiseStreamⅢ(Based on AI engine), USB-C for easy installation, 4 x Selectable I/O, 4 x Audio inputs, 1 Audio Out, TPM with FIPS 140-3 level3, Built-in microSD card slots (Up to 512GB x2), 12VDC/PoE+, Compatible with 2MP lenses: SLA-T4680A/T4680VA, SLA-T2480A/T2480VA, SLA-T1080FA / 5MP Lenses: SLA-F2480BA, SLA-F2480WA, SLA-F2480WDA, SLA-F4780A, SLA-F4780VA, SLA-F2480A, SLA-F2480VA, SLA-F1080FA.

Key Specifications

Max video resolution 2592x1944 (2MP)
Max frames per second 30fps/25fps(60Hz/50Hz)
Wide dynamic range 120 dB
Onboard AI (object classes) Person, Face, Vehicle, License plate
Power PoE+(IEEE802.3at, Class4), 12VDC · Max. 25.5W, typical 23.8W
Operating temperature -10°C~+45°C(+14°F~+113°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision PNM-C20000QB?

  • 2MP 2592x1944 video at up to 30fps/25fps
  • 120 dB WDR for bright and backlit scenes
  • AI object classification: Person, Face, Vehicle, License plate
  • Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)
  • Power: PoE+(IEEE802.3at, Class4), 12VDC

Clear Video Day and Night

120 dB WDR keeps detail in scenes with bright and dark areas.

Coverage and Resolution

resolution is up to 2592x1944 at 30fps/25fps(60Hz/50Hz).

AI Analytics on the Edge

The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear); business intelligence features include People counting, Queue management, Heatmap, Vehicle counting.

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1); IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE+(IEEE802.3at, Class4), 12VDC (Max. 25.5W, typical 23.8W); operating temperature: -10°C~+45°C(+14°F~+113°F); edge storage: Max. 1TB x 2slot(Total 2TB); compression: H.265/H.264: Main/Baseline/High, MJPEG.

Typical Applications

  • Classrooms
  • Retail stores
  • Offices

Compatible Accessories

Compatible accessories for the Hanwha Vision PNM-C20000QB. Linked items are available at Affinitech Store; contact us for the others:

Explore More

Frequently Asked Questions About Hanwha Vision PNM-C20000QB

What resolution does the Hanwha Vision PNM-C20000QB capture?

Up to 2592x1944 (2MP) at 30fps/25fps(60Hz/50Hz).

What is the operating temperature?

-10°C~+45°C(+14°F~+113°F).

What can the AI analytics detect?

It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear).

How is it powered?

PoE+(IEEE802.3at, Class4), 12VDC (Max. 25.5W, typical 23.8W).

What video compression does it support?

H.265/H.264: Main/Baseline/High, MJPEG.

Does it support onboard storage?

Yes: Max. 1TB x 2slot(Total 2TB).

What cybersecurity features are built in?

Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1).

Is it ONVIF compliant?

Yes, ONVIF Profile S, G, T, M.

View AllClose

Detailed Specifications

Hanwha Vision PNM-C20000QB Specifications

SpecificationDetails
Video
Resolution2592x1944, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240, 320x180
Max. Framerate - H.265/H.26430fps/25fps(60Hz/50Hz)
Max. Framerate - MJPEG30fps
Video OutUSB: USB Type C. Preview and installation ONLY. Requires WiFi dongle., HDMI(Single/Quad view)
Lens
Optional LensSLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T2480WDA, SLA-T2480WA, SLA-T2480BA, SLA-T2880BA, SLA-T4680DA, SLA-T4680DSA, SLA-F1080FA, SLA-F2480A, SLA-F2480VA, SLA-F4780A, SLA-F4780VA, SLA-F2480WDA, SLA-F2480WA, SLA-F2480BA, SLA-F2480DA, SLA-F2480DSA, SLA-F2480HA, SLA-T4615VA, SLA-T2480HA
Operational
Day & NightAuto(Electrical)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion Detection - Quantity8ea
Motion Detection - Shape8point Polygonal zones
Privacy Masking - Quantity16ea
Privacy Masking - Shape4point Quadrangle zones
Privacy Masking - Color / OptionGray, Green, Red, Blue, Black, White
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
LDCSupport
Electronic Shutter - ModeMinimum, Maximum, Anti flicker
Electronic Shutter - Speed Range2~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°) - Each channel separately
Alarm Interface - In/Out4 configurable I/O ports
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In4 x Selectable(mic in/line in)
Audio OutLine out
Analytics
Classified Object TypePerson, Face, Vehicle, License plate
Attributes - PersonUpper/Lower clothes color
Attributes - VehicleType(car, bus, truck, motorcycle, bicycle), Color
ThumbnailBestShot
Analytics Events - Based on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
Analytics Events - NormalDefocus detection, Motion detection, Tampering, Audio detection, Shock detection
Business Intelligence - Based on AI EnginePeople counting, Queue management, Heatmap, Vehicle counting
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps)
Smart CodecWiseStream(Based on AI engine)
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
Streaming - UnicastUp to 20 users
Streaming - MulticastSupport
Streaming - Multiple StreamingUp to 4 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS)
Application Programming Interface - ONVIFS, G, T, M
Application Programming Interface - OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), Secure element
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)
General
SoC - TypeNT98690
Memory - RAM8GB
Memory - Flash8GB
Edge Storage - Micro SD/SDHC/SDXCMax. 1TB x 2slot(Total 2TB)
Environmental & Electrical
Operating Condition - Temperature-10°C~+45°C(+14°F~+113°F)
Operating Condition - Humidity0~95% RH(non-condensing)
Storage Condition - Temperature-50°C~+60°C(-58°F~+140°F)
Storage Condition - Humidity0~90% RH(non-condensing)
Input VoltagePoE+(IEEE802.3at, Class4), 12VDC
Power Consumption - PoEMax. 25.5W, typical 23.8W
Power Consumption - 12VDCMax. 23.1W, typical 21.5W
Mechanical
ColorBlack
MaterialPlastic
Material Management - DeclarationRoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL CodeRAL9005
Product Dimensions200(W)x37(H)x146(D)mm(7.87x1.46x5.75")
Product Weight1,015g(2.24lb)
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC/EN 63000
