Hanwha Vision PNM-C32083RQZ 4K AI IR PTRZ Multi-directional

Name: Hanwha Vision PNM-C32083RQZ 4K AI, IR, and PTRZ Multi-directional
Brand: Hanwha Vision America
SKU: PNM-C32083RQZ
Price: 2535 USD
Availability: InStock

Description
Detailed Specifications

Description

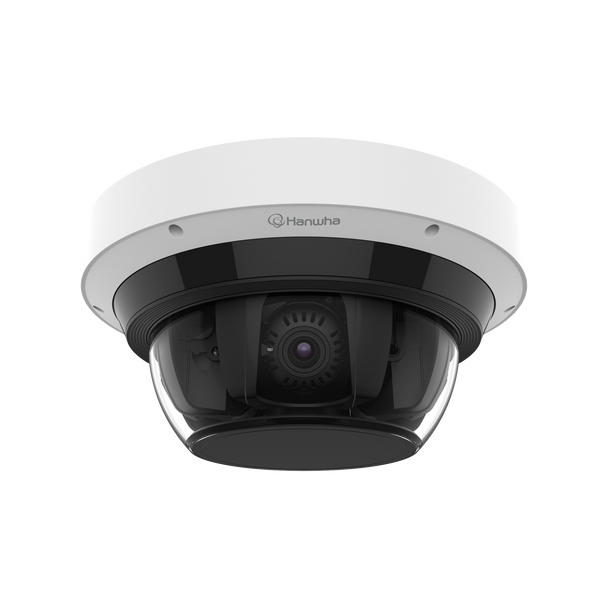

Hanwha Vision PNM-C32083RQZ – 4K AI, IR, and PTRZ Multi-directional

The Hanwha Vision PNM-C32083RQZ is a 4K AI IR PTRZ multi-directional outdoor camera built for intersections, large lots and building corners. It combines four 4K sensors in one housing. It offers 4K video at up to 15 fps, a 4.38-9.33 mm motorized varifocal lens with a 113° to 47° horizontal view and built-in IR reaching 25 m (82 ft). Onboard AI classifies people, faces, vehicles, and license plates. It carries IP66, NEMA 4X, IK10 ratings.

Key Specifications

Max video resolution	3840x2160 (4K)
Max frames per second	15fps/15fps(60Hz/50Hz)
Image sensor	1/1.8" CMOS
Focal length / lens	4.38~9.33 mm · 2.1x optical zoom
Horizontal field of view	113°~47°
Wide dynamic range	120 dB
Min illumination (color)	0.07 lux
Built-in IR	WiseIR PoE++ 25m(82.02ft) / PoE+ 15m(49.21ft)
Onboard AI (object classes)	Person, Face, Vehicle, License plate
Power	PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6) · Max. 41W, typical 22W
IP / vandal rating	IP66, NEMA 4X, IK10
Operating temperature	-40°C~+55°C(-40°F~+131°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision PNM-C32083RQZ?

4K 3840x2160 video at up to 15fps/15fps
4.38~9.33 mm lens with 2.1x optical zoom and a 113°~47° horizontal view
120 dB WDR for bright and backlit scenes
Built-in IR: WiseIR PoE++ 25m(82.02ft) / PoE+ 15m(49.21ft)
AI object classification: Person, Face, Vehicle, License plate
Built-in cybersecurity: TPM 2.0 with FIPS 140-2 level2, Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)
IP66, NEMA 4X, IK10 rated housing
Power: PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6)

Clear Video Day and Night

The PNM-C32083RQZ captures color video down to 0.07 lux; its built-in IR reaches WiseIR PoE++ 25m(82.02ft) / PoE+ 15m(49.21ft); 120 dB WDR keeps detail in scenes with bright and dark areas.

Coverage and Resolution

A 4.38~9.33 mm lens with 2.1x optical zoom covers a 113°~47° horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 5.1m(16.68ft); resolution is up to 3840x2160 at 15fps/15fps(60Hz/50Hz).

AI Analytics on the Edge

The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit).

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: TPM 2.0 with FIPS 140-2 level2, Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1); IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6) (Max. 41W, typical 22W); operating temperature: -40°C~+55°C(-40°F~+131°F); ratings: IP66, NEMA 4X, IK10; edge storage: Max. 512GB x 2slot(Total 1TB); compression: H.265/H.264: Main/High, MJPEG.

Typical Applications

Intersections
Large parking lots
Building corners
Campuses

Compatible Accessories

Compatible accessories for the Hanwha Vision PNM-C32083RQZ. Linked items are available at Affinitech Store; contact us for the others:

Compare Hanwha Vision P Series Multi-Directional Cameras

Model	Max resolution	Type	Best for
Hanwha Vision PNM-C16083RVQ	4MP x 4	4MP AI IR multi-directional outdoor camera	Intersections, large lots and building corners
Hanwha Vision PNM-9085RQZ1	5MP x 4	5MP x 4 IR outdoor multi-sensor dome camera with PTRZ adjustment	Intersections, large lots and building corners
Hanwha Vision PNM-C19183RVTP	5MP x 3 + PTZ	3-channel AI IR multi-directional with 18x PTZ	Intersections, large lots and building corners
Hanwha Vision PNM-C32083RQZ (this camera)	4K x 4	4K AI IR PTRZ multi-directional outdoor camera	Intersections, large lots and building corners
Hanwha Vision PNM-C32083RVQ	4K x 4	4K AI IR multi-directional outdoor camera	Intersections, large lots and building corners
Hanwha Vision PNM-C32084RQZ-8XE256G	4K x 4	4K x 4 AI IR PTRZ, open version, Jetson Orin 8GB	Intersections, large lots and building corners
Hanwha Vision PNM-C32084RQZ-8XE256G-LU	4K x 4	4K x 4 AI IR PTRZ, Jetson Orin with Lumeo Analytics	Intersections, large lots and building corners
Hanwha Vision PNM-C32084RQZ-8XE4T-W	4K x 4	4K x 4 AI IR PTRZ SolidEDGE, 4 TB SSD	Intersections, large lots and building corners

Explore More

Browse Panoramic Cameras at Affinitech Store
Browse Outdoor Cameras at Affinitech Store
Browse IR Cameras at Affinitech Store
Browse AI-Powered Cameras at Affinitech Store
Shop all Hanwha Vision products at Affinitech Store

Frequently Asked Questions About Hanwha Vision PNM-C32083RQZ

What resolution does the Hanwha Vision PNM-C32083RQZ capture?

Up to 3840x2160 (4K) at 15fps/15fps(60Hz/50Hz).

What lens does it use?

4.38~9.33 mm with 2.1x optical zoom; horizontal field of view 113°~47°.

Does it see in the dark?

Yes. Built-in IR reaches WiseIR PoE++ 25m(82.02ft) / PoE+ 15m(49.21ft).

Can it be installed outdoors?

Yes. It is rated IP66, NEMA 4X, IK10 and operates from -40°C~+55°C(-40°F~+131°F).

What can the AI analytics detect?

It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit).

How is it powered?

PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6) (Max. 41W, typical 22W).

What video compression does it support?

H.265/H.264: Main/High, MJPEG.

Does it support onboard storage?

Yes: Max. 512GB x 2slot(Total 1TB).

What cybersecurity features are built in?

Encrypted firmware, Secure boot, Signed firmware; TPM 2.0 with FIPS 140-2 level2, Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1).

Is it ONVIF compliant?

Yes, ONVIF Profile S, G, T, M.

View AllClose

Detailed Specifications

Hanwha Vision PNM-C32083RQZ Specifications

Specification	Details
Video
Imaging Device - Size	1/1.8"
Imaging Device - Type	CMOS
Resolution	3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate - H.265/H.264	15fps/15fps(60Hz/50Hz)
Max. Framerate - MJPEG	15fps(@8MP Max. 5fps)
Max. Framerate - Others	Max. 20fps when AI off(MJPEG@8MP Max. 5fps)
Min. Illumination (Lux) - Color(1/30sec, 30IRE)	0.07
Min. Illumination (Lux) - BW(1/30sec, 30IRE)	0.007
Lens
Focal Length (mm)	4.38~9.33
Zoom Ratio - Optical	2.1x
Max Aperture Ratio (F number) - Wide	1.3
Max Aperture Ratio (F number) - Tele	2.15
Angular Field of View - Horizontal	113°~47°
Angular Field of View - Vertical	58°~26°
Angular Field of View - Diagonal	138°~54°
Min. Object Distance	1.3m(4.27ft)
Focus Control	Simple focus
Lens Type	P iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - Pan	0°~360°
Pan / Tilt / Rotate Range - Tilt	30°~90°
Pan / Tilt / Rotate Range - Rotate	0°~90°
Pan / Tilt / Rotate Range - Others	Remote adjustment(Max. 200cycles)
Operational
Day & Night	Auto(ICR)
Backlight Compensation	BLC, WDR, SSDR
Wide Dynamic Range (dB)	120
Digital Noise Reduction	WiseNRⅡ(Based on AI engine), SSNRⅤ
Defog	Support
Motion Detection - Quantity	8ea
Motion Detection - Shape	8point Polygonal zones
Privacy Masking - Quantity	6ea
Privacy Masking - Shape	4point Quadrangle zones
Privacy Masking - Color / Option	Gray, Black, White
Gain Control	Low, Middle, High
White Balance	ATW, AWC, Manual, Indoor, Outdoor
LDC	Support
Electronic Shutter - Mode	Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter - Speed Range	1/5~1/12,000sec
Video Rotation	Flip, Mirror, Hallway view(90°/270°) - Each channel separately
Alarm Interface - In/Out	2 configurable I/O ports
Alarm Interface - Others	Support extra alarm I/O via optional I/O box
Alarm Triggers	Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Case tampering
Alarm Events When Alarm Trigger Occurred	File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
Audio In	Support via optional I/O box
Audio Out	Support via optional I/O box
Light Type	IR LED
Light Viewable Length - IR	WiseIR PoE++ 25m(82.02ft) / PoE+ 15m(49.21ft)
IR Wavelength	850nm
Analytics
Classified Object Type	Person, Face, Vehicle, License plate
Attributes - Person	Upper/Lower clothes color
Attributes - Vehicle	Type(car, bus, truck, motorcycle, bicycle), Color
Thumbnail	BestShot
Analytics Events - Based on AI Engine	Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics Events - Normal	Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
Network
Ethernet	Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/High, MJPEG
Smart Codec	Manual, WiseStreamⅢ
Bitrate Control	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming - Unicast	Up to 10 users
Streaming - Multicast	Support
Streaming - Multiple Streaming	Up to 3 profiles
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface - ONVIF	S, G, T, M
Application Programming Interface - Others	SUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware Protect	Encrypted firmware, Secure boot, Signed firmware
User authentication	Digest authentication
Network authentication	IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication	HTTPS, WSS(WebSocket Secure)
Access Control	IP-based access control
Data Protect	Encryption credentials, Encrypt compress for live recording file export
Audit	Access / System / Event Log management
Device ID	Device certificate(Hanwha Vision Root CA)
Secure Storage	TPM(Trusted platform module), SDcard partition encrypt(AES-256)
Security Certificate	TPM 2.0 with FIPS 140-2 level2, Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)
General
SoC - Type	CV5
Memory - RAM	8GB
Memory - Flash	8GB
Edge Storage - Micro SD/SDHC/SDXC	Max. 512GB x 2slot(Total 1TB)
Edge Storage(OnCloud) - Micro SD/SDHC/SDXC	Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating Condition - Temperature	-40°C~+55°C(-40°F~+131°F)
Operating Condition - Humidity	0~100% RH(condensing)
Operating Condition - Others	Start up should be done at above -35°C, Humidity control with AIR vent
Storage Condition - Temperature	-50°C~+60°C(-58°F~+140°F)
Storage Condition - Humidity	0~90% RH(non-condensing)
EPA(Effective Projected Area)	0.035㎡
Input Voltage	PoE+(IEEE802.3at, Class4), PoE++(IEEE802.3bt type3, Class6)
Power Consumption - PoE	Max. 41W, typical 22W
Power Consumption - Others	PoE+: Max. 25.5W, typical 22W
Mechanical
Color	White
Material	Aluminum, Plastic, Hard-coated dome
RAL Code	RAL9003
Product Dimensions	ø312.7x145.9mm(ø12.31x5.74")
Product Weight	4,400g(9.7lb)
Compatible Conduit Hole	19.1mm(3/4")(M25)
Compatible Gang Box	Single, Double, 4" Octagon, Square
Certifications & Standards
EMC	FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety	UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment	IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) - Wide	50.8m(166.77ft)
Detect (25PPM/ 8PPF) - Tele	176.6m(579.49ft)
Observe (63PPM/ 19PPF) - Wide	20.3m(66.71ft)
Observe (63PPM/ 19PPF) - Tele	70.7m(231.80ft)
Recognize (125PPM/ 38PPF) - Wide	10.2m(33.35ft)
Recognize (125PPM/ 38PPF) - Tele	35.3m(115.90ft)
Identify (250PPM/ 76PPF) - Wide	5.1m(16.68ft)
Identify (250PPM/ 76PPF) - Tele	17.7m(57.95ft)
