Hanwha PNM-C32084RQZ-8XE256G 4K AI, IR, PTRZ Multi-directional, Open V

Brand: Hanwha Vision America
SKU:
PNM-C32084RQZ-8XE256G
Condition:
New
(No reviews yet) Write a Review
MSRP: $9,100.00
Price: $5,915.00
— You save $3,185.00

Description

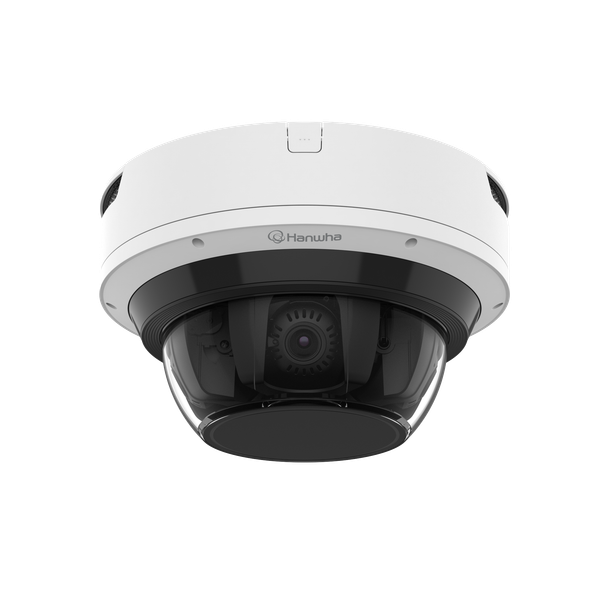

Hanwha Vision PNM-C32084RQZ-8XE256G – 4K AI, IR, PTRZ Multi-directional, Open Version with Jetson Orin 8GB (L)

The Hanwha Vision PNM-C32084RQZ-8XE256G is a 4K AI, IR, PTRZ Multi-directional, Open Version with Jetson Orin 8GB (L) built for intersections, large lots and building corners. Wisenet P series network vandal outdoor Multi-Directional camera [WiseAI ON] 4CH x 8MP @ 15FPS / [WiseAI OFF] 4CH x 8MP @ 20FPS, Motorized Varifocal Lens 4.38~9.33mm (FoV H: 112.1°~47.5°, V: 58°~26.6°) with PTRZ function, triple codec H.265/H.264/MJPEG, 120dB WDR; IR viewable length 25m (82ft); Lumeo: Retail, Transportation, Smart Cities, Logistics, Enterprise Security and more.

Key Specifications

Max video resolution 3840x2160 (4K)
Max frames per second 15fps/15fps(60Hz/50Hz)
Image sensor 1/1.8" CMOS
Focal length / lens 4.38~9.33 mm · 2.1x optical zoom
Horizontal field of view 113°~47°
Wide dynamic range 120 dB
Min illumination (color) 0.07 lux
Built-in IR WiseIR 25m(82.02ft)
Onboard AI (object classes) Person, Face, Vehicle, License plate
Power PoE++(IEEE802.3bt type4, Class8) · Max. 71W, typical 40W(Orin NX 16GB)
IP / vandal rating IP66, NEMA 4X, IK10
Operating temperature -40°C~+55°C(-40°F~+131°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision PNM-C32084RQZ-8XE256G?

  • 4K 3840x2160 video at up to 15fps/15fps
  • 4.38~9.33 mm lens with 2.1x optical zoom and a 113°~47° horizontal view
  • 120 dB WDR for bright and backlit scenes
  • Built-in IR: WiseIR 25m(82.02ft)
  • AI object classification: Person, Face, Vehicle, License plate
  • Built-in cybersecurity: TPM 2.0 with FIPS 140-2 level2
  • IP66, NEMA 4X, IK10 rated housing
  • Power: PoE++(IEEE802.3bt type4, Class8)

Clear Video Day and Night

The PNM-C32084RQZ-8XE256G captures color video down to 0.07 lux; its built-in IR reaches WiseIR 25m(82.02ft); 120 dB WDR keeps detail in scenes with bright and dark areas.

Coverage and Resolution

A 4.38~9.33 mm lens with 2.1x optical zoom covers a 113°~47° horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 5.1m(16.68ft); resolution is up to 3840x2160 at 15fps/15fps(60Hz/50Hz).

AI Analytics on the Edge

The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit).

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: TPM 2.0 with FIPS 140-2 level2; IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE++(IEEE802.3bt type4, Class8) (Max. 71W, typical 40W(Orin NX 16GB)); operating temperature: -40°C~+55°C(-40°F~+131°F); ratings: IP66, NEMA 4X, IK10; edge storage: Max. 512GB x 2slot(Total 1TB); compression: H.265/H.264: Main/High, MJPEG.

Typical Applications

  • Intersections
  • Large parking lots
  • Building corners
  • Campuses

Compatible Accessories

Compatible accessories for the Hanwha Vision PNM-C32084RQZ-8XE256G. Linked items are available at Affinitech Store; contact us for the others:

Compare Hanwha Vision PNM-C Series Cameras

ModelMax resolutionTypeBest for
Hanwha Vision PNM-C32084RQZ-8XE256G (this camera) 3840x2160 4K AI, IR, PTRZ Multi-directional, Open Version with Jetson Orin 8GB (L) Intersections, large lots and building corners
Hanwha Vision PNM-C34404RQPZ 4K 5 CH, AI, IR, PTRZ Multi-directional outdoor... Campuses, parking lots and large open areas
Hanwha Vision PNM-C32084RQZ-8XE4T-W - 4CH AI Multi-sensor Camera with WAVE VMS Intersections, large lots and building corners
Hanwha Vision PNM-C32083RVQ 4K 4K x 4, AI, IR Multi-directional outdoor camera Intersections, large lots and building corners
Hanwha Vision PNM-C32083RQZ 4K 4K x 4, AI, IR Multi-directional outdoor... Intersections, large lots and building corners

Explore More

Frequently Asked Questions About Hanwha Vision PNM-C32084RQZ-8XE256G

What resolution does the Hanwha Vision PNM-C32084RQZ-8XE256G capture?

Up to 3840x2160 (4K) at 15fps/15fps(60Hz/50Hz).

What lens does it use?

4.38~9.33 mm with 2.1x optical zoom; horizontal field of view 113°~47°.

Does it see in the dark?

Yes. Built-in IR reaches WiseIR 25m(82.02ft).

Can it be installed outdoors?

Yes. It is rated IP66, NEMA 4X, IK10 and operates from -40°C~+55°C(-40°F~+131°F).

What can the AI analytics detect?

It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit).

How is it powered?

PoE++(IEEE802.3bt type4, Class8) (Max. 71W, typical 40W(Orin NX 16GB)).

What video compression does it support?

H.265/H.264: Main/High, MJPEG.

Does it support onboard storage?

Yes: Max. 512GB x 2slot(Total 1TB).

What cybersecurity features are built in?

Encrypted firmware, Secure boot, Signed firmware; TPM 2.0 with FIPS 140-2 level2.

Is it ONVIF compliant?

Yes, ONVIF Profile S, G, T, M.

View AllClose

Detailed Specifications

Hanwha Vision PNM-C32084RQZ-8XE256G Specifications

SpecificationDetails
Video
Imaging Device - Size1/1.8"
Imaging Device - TypeCMOS
Resolution3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate - H.265/H.26415fps/15fps(60Hz/50Hz)
Max. Framerate - MJPEG15fps(@8MP Max. 5fps)
Max. Framerate - OthersMax. 20fps when AI off(MJPEG@8MP Max. 5fps)
Min. Illumination (Lux) - Color(1/30sec, 30IRE)0.07
Min. Illumination (Lux) - BW(1/30sec, 30IRE)0.007
Lens
Focal Length (mm)4.38~9.33
Zoom Ratio - Optical2.1x
Max Aperture Ratio (F number) - Wide1.3
Max Aperture Ratio (F number) - Tele2.15
Angular Field of View - Horizontal113°~47°
Angular Field of View - Vertical58°~26°
Angular Field of View - Diagonal138°~54°
Min. Object Distance1.3m(4.27ft)
Focus ControlSimple focus
Lens TypeP iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - Pan0°~360°
Pan / Tilt / Rotate Range - Tilt30°~90°
Pan / Tilt / Rotate Range - Rotate0°~90°
Pan / Tilt / Rotate Range - OthersRemote adjustment(Max. 200cycles)
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
DefogSupport
Motion Detection - Quantity8ea
Motion Detection - Shape8point Polygonal zones
Privacy Masking - Quantity6ea
Privacy Masking - Shape4point Quadrangle zones
Privacy Masking - Color / OptionGray, Black, White
Gain ControlLow, Middle, High
White BalanceATW, AWC, Manual, Indoor, Outdoor
LDCSupport
Electronic Shutter - ModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter - Speed Range1/5~1/12,000sec
Video RotationFlip, Mirror, Hallway view(90°/270°) - Each channel separately
Alarm Interface - In/Out2 configurable I/O ports
Alarm Interface - OthersSupport extra alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Case tampering
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
Audio InSupport via optional I/O box
Audio OutSupport via optional I/O box
Light TypeIR LED
Light Viewable Length - IRWiseIR 25m(82.02ft)
IR Wavelength850nm
Analytics
Classified Object TypePerson, Face, Vehicle, License plate
Attributes - PersonUpper/Lower clothes color
Attributes - VehicleType(car, bus, truck, motorcycle, bicycle), Color
ThumbnailBestShot
Analytics Events - Based on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics Events - NormalDefocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Smart CodecManual, WiseStreamⅢ
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
Streaming - UnicastUp to 10 users
Streaming - MulticastSupport
Streaming - Multiple StreamingUp to 3 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface - ONVIFS, G, T, M
Application Programming Interface - OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure)
Access ControlIP-based access control
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageTPM(Trusted platform module), SDcard partition encrypt(AES-256)
Security CertificateTPM 2.0 with FIPS 140-2 level2
General
Memory - RAM8GB
Memory - Flash8GB
Edge Storage - Micro SD/SDHC/SDXCMax. 512GB x 2slot(Total 1TB)
NVIDIA Carrier Board - Supported ModulesNVIDIA Jetson Orin NX 8GB
NVIDIA Carrier Board - Storage256G SSD Included
NVIDIA Carrier Board - OthersIncludes NVIDIA Jetpack SDK
Environmental & Electrical
Operating Condition - Temperature-40°C~+55°C(-40°F~+131°F)
Operating Condition - Humidity0~100% RH(condensing)
Operating Condition - OthersStart up should be done at above -20°C, Humidity control with AIR vent
Storage Condition - Temperature-50°C~+60°C(-58°F~+140°F)
Storage Condition - Humidity0~90% RH(non-condensing)
EPA(Effective Projected Area)0.046㎡
Input VoltagePoE++(IEEE802.3bt type4, Class8)
Power Consumption - PoEMax. 71W, typical 40W(Orin NX 16GB)
Power Consumption - OthersMax. 66W, typical 40W(Orin NX 8GB)
Mechanical
ColorWhite
MaterialAluminum, PC(Polycarbonate), Hard-coated dome
RAL CodeRAL9003
Product Dimensionsø315x180mm(ø12.40x7.09")
Product Weight6,100g(13.45lb)
Compatible Conduit Hole19.1mm(3/4")(M25)
Compatible Gang BoxSingle, Double, 4" Octagon, Square
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
EnvironmentIEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) - Wide50.8m(166.77ft)
Detect (25PPM/ 8PPF) - Tele176.6m(579.49ft)
Observe (63PPM/ 19PPF) - Wide20.3m(66.71ft)
Observe (63PPM/ 19PPF) - Tele70.7m(231.80ft)
Recognize (125PPM/ 38PPF) - Wide10.2m(33.35ft)
Recognize (125PPM/ 38PPF) - Tele35.3m(115.90ft)
Identify (250PPM/ 76PPF) - Wide5.1m(16.68ft)
Identify (250PPM/ 76PPF) - Tele17.7m(57.95ft)
