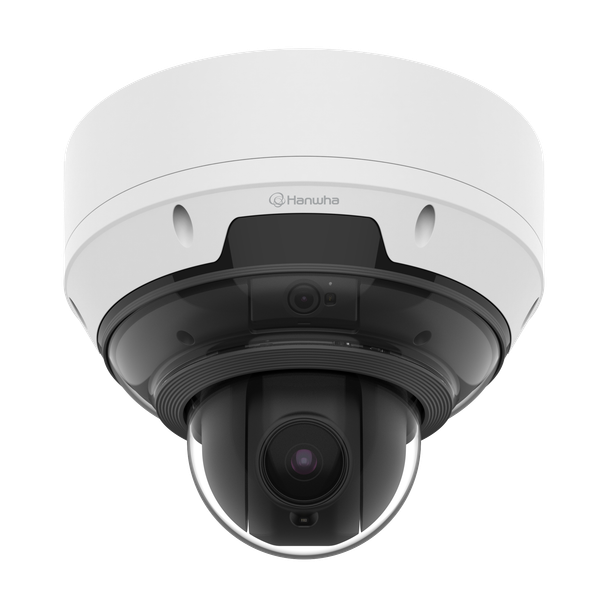

Hanwha PNM-C19183RVTP 3CH + PTZ, AI, IR Multi directional outdoor came
Description
Hanwha Vision PNM-C19183RVTP – 3CH + PTZ, AI, IR Multi directional outdoor camera / 5MP x 3CH + 4MP 18x PTZ
The Hanwha Vision PNM-C19183RVTP is a 3CH + PTZ, AI, IR Multi directional outdoor camera / 5MP x 3CH + 4MP 18x PTZ built for campuses, parking lots and large open areas. Wisenet P series network vandal outdoor Multi-Directional camera, 3CH x 5MP @ 30FPS and 4MP PTZ 18x Zoom, 3CH Fix Lens 2.4mm (FoV H: 123°, V: 91°), 120dB WDR; IR viewable length 15m(49ft), Analytics events based on AI engine: Classified object type: Person/Face/Vehicle/License plate; Attributes: Vehicle(type and color: car/bus/truck/motorcycle/bicycle), Person (upper and bottom clothing color), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion), Appear/Disappear.
Key Specifications
| Max video resolution | 2592x1944 (5MP) |
| Max frames per second | 30fps | 30fps | 30fps | 30fps |
| Image sensor | 1/2.8" CMOS |
| Focal length / lens | 2.4 | 2.4 | 2.4 | 5.42~98.29 mm · 18x optical zoom |
| Horizontal field of view | 123° | 123° | 123° | 53.1°~3.39° |
| Wide dynamic range | 120 dB |
| Min illumination (color) | 0.08 | 0.08 | 0.08 | 0.05 lux |
| Built-in IR | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation |
| Onboard AI (object classes) | Person, Face, Vehicle, License plate |
| Power | PoE++(IEEE802.3bt type3, Class6) · 42W |
| IP / vandal rating | IP66, NEMA 4X, IK10 |
| Operating temperature | -40°C~+55°C(-40°F~+131°F) |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Hanwha Vision PNM-C19183RVTP?
- 5MP 2592x1944 video at up to 30fps | 30fps | 30fps | 30fps
- 2.4 | 2.4 | 2.4 | 5.42~98.29 mm lens with 18x optical zoom and a 123° | 123° | 123° | 53.1°~3.39° horizontal view
- 120 dB WDR for bright and backlit scenes
- Built-in IR: 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation
- AI object classification: Person, Face, Vehicle, License plate
- Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)
- IP66, NEMA 4X, IK10 rated housing
- Power: PoE++(IEEE802.3bt type3, Class6)
Clear Video Day and Night
The PNM-C19183RVTP captures color video down to 0.08 | 0.08 | 0.08 | 0.05 lux; its built-in IR reaches 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation; 120 dB WDR keeps detail in scenes with bright and dark areas.
Coverage and Resolution
A 2.4 | 2.4 | 2.4 | 5.42~98.29 mm lens with 18x optical zoom covers a 123° | 123° | 123° | 53.1°~3.39° horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 2.8m(9.23ft) | 2.8m(9.23ft) | 2.8m(9.23ft) | 10.4m(34.04ft); resolution is up to 2592x1944 at 30fps | 30fps | 30fps | 30fps.
AI Analytics on the Edge
The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection; business intelligence features include People counting, Queue management, Heatmap, Vehicle counting | People counting, Queue management, Heatmap, Vehicle counting | People counting, Queue management, Heatmap, Vehicle counting.
Built-In Cybersecurity
Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1); IEEE 802.1X network authentication.
Installation and Integration
Key installation details: power input: PoE++(IEEE802.3bt type3, Class6) (42W); operating temperature: -40°C~+55°C(-40°F~+131°F); ratings: IP66, NEMA 4X, IK10; edge storage: Max. 1TB x 2slot(Total 2TB); compression: H.265/H.264: Main/Baseline/High, MJPEG.
Typical Applications
- Campuses and large open areas
- Parking lots and garages
- City surveillance
- Industrial yards
Compatible Accessories
Compatible accessories for the Hanwha Vision PNM-C19183RVTP. Linked items are available at Affinitech Store; contact us for the others:
- Hanwha Vision SBP-250C Mounting Hole Cover
- Hanwha Vision SBP-250HMW White Cap Adapter
- Hanwha Vision SBP-250WMW Wall and Pole Mount
- Hanwha Vision SBP-140CMB Ceiling Mount
- Hanwha Vision SBP-115PFA Wall and Pole Adaptor
- Hanwha Vision SBP-180CMB Ceiling Mount Base
- Hanwha Vision SBP-180CMS Ceiling Mount
- Hanwha Vision SBP-150CMI Ceiling Mount
- Hanwha Vision SBP-150CMP Ceiling Mount
- Hanwha Vision SBP-150NBW Cabinet
- Hanwha Vision SBP-150PMW Pole Mount
- Hanwha Vision SBP-156KMW Corner Mount Adapter
- Hanwha Vision SBP-156LMW1 Telescopic Parapet Mount
- Hanwha Vision SBP-300BW1 Table Top Mount
- Hanwha Vision SBP-300CMI White Pendant Mount
- Hanwha Vision SBP-300CMP Ceiling Mount
- Hanwha Vision SBP-300CMTS Telescopic Ceiling Mount
- Hanwha Vision SBP-300CMTW Telescopic Ceiling Mount
- Hanwha Vision SBP-300CMW1 Ceiling Mount
- Hanwha Vision SBP-900CMP Ceiling Mount
- Hanwha Vision SBP-900CMW Ceiling Mount
- Hanwha Vision SBP-C15H Thread Converter
- Hanwha Vision SBP-C15NP Thread Converter
- Hanwha Vision SBP-C15P Ceiling Mount Coupler
- Hanwha Vision SBP-C35H Pipe Converter
- Hanwha Vision SHD-2501FPW Plenum In-Ceiling Mount
- Hanwha Vision SBP-400WMW Wall and Pole Mount
- Hanwha Vision SPB-MDC41V Smoke Dome Cover
- Hanwha Vision SPM-4210 Network I/O Box
- Hanwha Vision SBP-300WMW Gooseneck Wall Mount
- Hanwha Vision SBP-300WMW1 White Wall Mount
- Hanwha Vision SBP-300PMW2 Pole Mount Base
- Hanwha Vision SBP-300KMW1 Corner Mount Base
- Hanwha Vision SBP-300LMW Parapet Mount
- Hanwha Vision SBP-300NBW Installation Box
Compare Hanwha Vision PNM-C Series Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| Hanwha Vision PNM-C19183RVTP (this camera) | 2592x1944 | 3CH + PTZ, AI, IR Multi directional outdoor camera / 5MP x 3CH + 4MP 18x PTZ | Campuses, parking lots and large open areas |
| Hanwha Vision PNM-C16083RVQ | 4MP | 4MP x 4, AI, IR Multi-directional outdoor camera | Intersections, large lots and building corners |
| Hanwha Vision PNM-C16083RQZ | 16MP | 16MP 4-Channel AI IR PTRZ Multi-Directional... | Intersections, large lots and building corners |
| Hanwha Vision PNM-C16013RVQ | 4MP | 4MP x 4, AI, IR mini multi-directional camera | Intersections, large lots and building corners |
| Hanwha Vision PNM-C12083RVD | 6MP | 6MP X 2 AI Dual Sensor Outdoor Dome Camera... | Entrances, building perimeters and parking areas |
Explore More
- Browse PTZ Cameras at Affinitech Store
- Browse Outdoor Cameras at Affinitech Store
- Browse IR Cameras at Affinitech Store
- Browse AI-Powered Cameras at Affinitech Store
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision PNM-C19183RVTP
What resolution does the Hanwha Vision PNM-C19183RVTP capture?
Up to 2592x1944 (5MP) at 30fps | 30fps | 30fps | 30fps.
What lens does it use?
2.4 | 2.4 | 2.4 | 5.42~98.29 mm with 18x optical zoom; horizontal field of view 123° | 123° | 123° | 53.1°~3.39°.
Does it see in the dark?
Yes. Built-in IR reaches 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation.
Can it be installed outdoors?
Yes. It is rated IP66, NEMA 4X, IK10 and operates from -40°C~+55°C(-40°F~+131°F).
What can the AI analytics detect?
It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection.
How is it powered?
PoE++(IEEE802.3bt type3, Class6) (42W).
What video compression does it support?
H.265/H.264: Main/Baseline/High, MJPEG.
Does it support onboard storage?
Yes: Max. 1TB x 2slot(Total 2TB).
What cybersecurity features are built in?
Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1).
Is it ONVIF compliant?
Yes, ONVIF Profile S, G, T, M.
Detailed Specifications
Hanwha Vision PNM-C19183RVTP Specifications
| Specification | Details |
|---|---|
| Video | |
| Imaging Device - Size | 1/2.8" |
| Imaging Device - Type | CMOS |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate - H.265/H.264 | 30fps | 30fps | 30fps | 30fps |
| Max. Framerate - MJPEG | 30fps(@5MP Max. 5fps) | 30fps(@5MP Max. 5fps) | 30fps(@5MP Max. 5fps) | 30fps(@4MP Max. 5fps) |
| Min. Illumination (Lux) - Color(1/30sec, 30IRE) | 0.08 | 0.08 | 0.08 | 0.05 |
| Min. Illumination (Lux) - BW(1/30sec, 30IRE) | 0.008 | 0.008 | 0.008 | 0.005 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
| Lens | |
| Focal Length (mm) | 2.4 | 2.4 | 2.4 | 5.42~98.29 |
| Zoom Ratio - Optical | 18x |
| Zoom Ratio - Digital | 32x |
| Max Aperture Ratio (F number) - Wide | 2.0 | 2.0 | 2.0 | 2.0 |
| Max Aperture Ratio (F number) - Tele | 3.27 |
| Angular Field of View - Horizontal | 123° | 123° | 123° | 53.1°~3.39° |
| Angular Field of View - Vertical | 91° | 91° | 91° | 31.75°~1.98° |
| Angular Field of View - Diagonal | 159° | 159° | 159° | 60.8°~3.92° |
| Min. Object Distance | 0.5m(1.64ft) | 0.5m(1.64ft) | 0.5m(1.64ft) | 5.0m(16.4ft) |
| Focus Control | Fixed | Fixed | Fixed | Oneshot AF, Focus save |
| Lens Type | Fixed iris | Fixed iris | Fixed iris | Adaptive P iris |
| Pan / Tilt / Rotate | |
| Pan Speed - Preset | Max. 600°/sec |
| Pan Speed - Manual | 0.024°/sec~250°/sec |
| Tilt Speed - Preset | Max. 500°/sec |
| Tilt Speed - Manual | 0.024°/sec~250°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2° |
| Operational | |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR | BLC, WDR, SSDR | BLC, WDR, SSDR | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection - Quantity | 8ea |
| Motion Detection - Shape | 8point Polygonal zones |
| Privacy Masking - Quantity | 12ea | 12ea | 12ea | 32ea |
| Privacy Masking - Shape | 4point Quadrangle zones | 4point Quadrangle zones | 4point Quadrangle zones | 4point Quadrangle zones |
| Privacy Masking - Color / Option | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White | Gray, Green, Red, Blue, Black, White, Mosaic |
| Gain Control | Low, Middle, High | Low, Middle, High | Low, Middle, High | Off, Max gain, Manual |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor | ATW, AWC, Manual, Indoor, Outdoor | ATW, AWC, Manual, Indoor, Outdoor | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium |
| LDC | Support | Support | Support |
| Electronic Shutter - Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter - Speed Range | 1/5~1/12,000sec |
| Video Rotation | Flip, Mirror |
| Alarm Interface - Others | Support alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, MQTT: publication, Smart zoom |
| Audio In | Support via optional I/O box |
| Audio Out | Support via optional I/O box |
| Light Type | IR LED | IR LED | IR LED |
| Light Viewable Length - IR | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation | 15m(49.21ft), 10m(32.8ft) under 3m height installation |
| IR Wavelength | 850nm | 850nm | 850nm |
| Auto Tracking | Object auto tracking(Person/Vehicle), Target lock tracking |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes - Person | Upper/Lower clothes color | Upper/Lower clothes color | Upper/Lower clothes color |
| Attributes - Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color | Type(car, bus, truck, motorcycle, bicycle), Color | Type(car, bus, truck, motorcycle, bicycle), Color | Type(car, bus, truck, motorcycle, bicycle) |
| Thumbnail | BestShot | BestShot | BestShot | DetectionShot |
| Analytics Events - Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection | Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection |
| Analytics Events - Normal | Tampering, Audio detection, Virtual area(Appear/Disappear) | Tampering, Audio detection, Virtual area(Appear/Disappear) | Tampering, Audio detection, Virtual area(Appear/Disappear) | Tampering, Fog detection, Audio detection |
| Business Intelligence - Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting | People counting, Queue management, Heatmap, Vehicle counting | People counting, Queue management, Heatmap, Vehicle counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual, WiseStream(Based on AI engine) | Manual, WiseStream(Based on AI engine) | Manual, WiseStream(Based on AI engine) | Manual, WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming - Unicast | Up to 5 users | Up to 5 users | Up to 5 users | Up to 5 users |
| Streaming - Multicast | Support | Support | Support | Support |
| Streaming - Multiple Streaming | Up to 4 profiles | Up to 4 profiles | Up to 4 profiles | Up to 3 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS) |
| Application Programming Interface - ONVIF | S, G, T, M |
| Application Programming Interface - Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
| General | |
| SoC - Type | Wisenet 7 + NT98690 |
| Memory - RAM | 8GB | 8GB | 8GB | 4GB |
| Memory - Flash | 8GB | 8GB | 8GB | 512MB |
| Edge Storage - Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
| Edge Storage(OnCloud) - Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition - Temperature | -40°C~+55°C(-40°F~+131°F) |
| Operating Condition - Humidity | 0~100% RH(condensing) |
| Operating Condition - Others | Start up should be done at above -35°C, Humidity control with AIR vent |
| Storage Condition - Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition - Humidity | 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.038㎡ |
| Input Voltage | PoE++(IEEE802.3bt type3, Class6) |
| Power Consumption - PoE | 42W |
| Mechanical | |
| Color | White |
| Material | Aluminum, Hard-coated dome |
| Material Management - Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9003 |
| Product Dimensions | ø251.4x212mm(ø9.9x8.35") |
| Product Weight | 4,800g(10.58lb) |
| Compatible Conduit Hole | 19.1mm(3/4")(M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) - Wide | 28.1m(92.35ft) | 28.1m(92.35ft) | 28.1m(92.35ft) | 103.7m(340.38ft) |
| Detect (25PPM/ 8PPF) - Tele | 1751.8m(5474.46ft) |
| Observe (63PPM/ 19PPF) - Wide | 11.3m(36.94ft) | 11.3m(36.94ft) | 11.3m(36.94ft) | 41.5m(136.15ft) |
| Observe (63PPM/ 19PPF) - Tele | 700.7m(2298.99ft) |
| Recognize (125PPM/ 38PPF) - Wide | 5.6m(18.47ft) | 5.6m(18.47ft) | 5.6m(18.47ft) | 20.7m(68.08ft) |
| Recognize (125PPM/ 38PPF) - Tele | 350.4m(1149.49ft) |
| Identify (250PPM/ 76PPF) - Wide | 2.8m(9.23ft) | 2.8m(9.23ft) | 2.8m(9.23ft) | 10.4m(34.04ft) |
| Identify (250PPM/ 76PPF) - Tele | 175.2m(574.75ft) |
