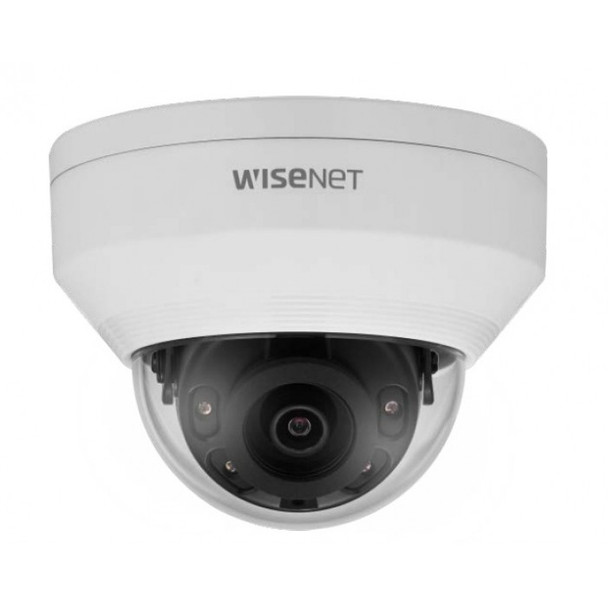

Hanwha Vision LNV-6032R 2MP Outdoor IR Vandal-Resistant Dome Camera

Brand: Hanwha Vision America
SKU:
LNV-6032R
Condition:
New
(No reviews yet) Write a Review
Price: $172.25

Description

Newer model available: Hanwha Vision has discontinued the Hanwha Vision LNV-6032R and has not named a direct replacement. Contact Affinitech Store for current availability and the closest current model.

Hanwha Vision LNV-6032R – 2MP Outdoor IR Vandal-Resistant Dome

The Hanwha Vision LNV-6032R is a 2MP outdoor IR vandal dome camera built for entrances, building perimeters and parking areas. It offers 1920x1080 (2MP) video at up to 30 fps, a 6mm lens with a 52.8° horizontal view and built-in IR reaching 30 m (98 ft). It is rated IP66, IK10.

Key Specifications

Max video resolution 1920x1080 (2MP)
Max frames per second 30 fps
Image sensor 2 MP 1/2.8" CMOS
Focal length / lens 6mm
Horizontal field of view 52.8°
Min illumination (color) 0.1 lux
Built-in IR 30 m (98 ft)
Power PoE 802.3af (15 W)
IP / vandal rating IP66, IK10
Operating temperature -22 to 131°F / -30 to 55°C

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision LNV-6032R?

  • 1920x1080 (2MP) video at up to 30 fps
  • 6mm lens and a 52.8° horizontal view
  • Built-in IR: 30 m (98 ft)
  • IP66, IK10 rated housing
  • Power: PoE 802.3af (15 W)

Clear Video Day and Night

The LNV-6032R captures color video down to 0.1 lux; it has built-in IR that reaches 30 m (98 ft).

Coverage and Resolution

For the LNV-6032R: a 6mm lens covers a 52.8° horizontal field of view; resolution is up to 1920x1080 (2MP) at 30 fps.

Analytics and Events

Onboard analytics and event features include Motion Detection (4 Rectangular Areas), Tampering.

Built-In Cybersecurity

Security features include Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log.

Installation and Integration

Key installation details: power input: PoE 802.3af (15 W); operating temperature: -22 to 131°F / -30 to 55°C; ratings: IP66, IK10; edge storage: Single Slot: microSD/microSDHC [32 GB Maximum]; compression: H.264, MJPEG; integration: ONVIF.

Typical Applications

  • Building entrances
  • Building perimeters
  • Parking areas
  • Walkways and loading areas

Compare Hanwha Vision L Series Dome Cameras

ModelMax resolutionTypeBest for
Hanwha Vision LND-6012R 2MP Indoor IR dome camera Classrooms, retail and offices
Hanwha Vision LND-6032R 2MP Indoor IR dome camera Classrooms, retail and offices
Hanwha Vision LND-6072R 2MP Indoor IR dome camera Classrooms, retail and offices
Hanwha Vision LNV-6012R 2MP Outdoor IR vandal dome camera Entrances, building perimeters and parking areas
Hanwha Vision LNV-6022R 2MP Outdoor IR vandal dome camera Entrances, building perimeters and parking areas
Hanwha Vision LNV-6032R (this camera) 2MP Outdoor IR vandal dome camera Entrances, building perimeters and parking areas
Hanwha Vision LNV-6072R 2MP Outdoor IR vandal dome camera Entrances, building perimeters and parking areas

Explore More

Frequently Asked Questions About Hanwha Vision LNV-6032R

What resolution does the Hanwha Vision LNV-6032R capture?

Up to 1920x1080 (2MP) at 30 fps.

What lens does it use?

6mm; horizontal field of view 52.8°.

Does it see in the dark?

Yes. Built-in IR reaches 30 m (98 ft).

Can it be installed outdoors?

Yes. It is rated IP66, IK10 and operates from -22 to 131°F / -30 to 55°C.

How is it powered?

PoE 802.3af (15 W).

What video compression does it support?

H.264, MJPEG.

Does it support onboard storage?

Yes: Single Slot: microSD/microSDHC [32 GB Maximum].

What cybersecurity features are built in?

Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log.

Is it ONVIF compliant?

Yes, ONVIF is supported.

What analytics are supported?

Motion Detection (4 Rectangular Areas), Tampering.

What are the dimensions and weight of the Hanwha Vision LNV-6032R?

Dimensions: ø120.3x91.7 mm (ø4.74x3.61 in). Weight: 0.9 lb.

View AllClose

Detailed Specifications

Hanwha Vision LNV-6032R Specifications

SpecificationDetails
Specifications
Sensor2 MP 1/2.8" CMOS
Focal Length6mm
Maximum Aperturef/2
Lens Field of ViewHorizontal: 52.8°; Vertical: 30.3°; Diagonal: 60.4°
IR Cut FilterMechanical
Day/NightYes
Minimum IlluminationColor: 0.1 Lux; B&W: 0 Lux
Camera Angle AdjustmentHorizontal: 0 to 350°; Vertical: 0 to 67°
Streaming Resolution1920 x 1080 at 30 fps (H.264)
Supported Video CompressionH.264, MJPEG
Multi-View StreamingYes, 3 Streams
Built-In MicNo
SecurityDigest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log
Supported ProtocolsARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
Application Programming Interface (API)ONVIF Profiles G, S & T, SUNAPI (HTTP API)
AnalyticsMotion Detection (4 Rectangular Areas), Tampering
Event TriggerYes
Event ActionRecording, Notification, Alarm
Data StreamingYes
Windows OS SupportWindows 7, 8.1, 10
Mac OS SupportmacOS 10.14, macOS 10.13, macOS 10.12
Operating Temperature-22 to 131°F / -30 to 55°C
Storage Temperature-22 to 131°F / -30 to 55°C
Operating Humidity0 to 90%
IP RatingIP66
IK RatingIK10
Memory512 MB RAM / 256 MB Flash
Media/Memory Card SlotSingle Slot: microSD/microSDHC [32 GB Maximum]
Pan/TiltNone
I/O Connections1 x RJ45
IR Range98.43' / 30 m
Internal StorageNone
Power SourcePoE 802.3af (15 W)
Power Consumption5 W
Material of ConstructionAluminum, Plastic
Package Weight1.54 lb
Box Dimensions (LxWxH)6.3 x 6.3 x 5.2"
Mechanical
Product Dimensionsø120.3x91.7 mm (ø4.74x3.61 in)
Product Weight0.9 lb
