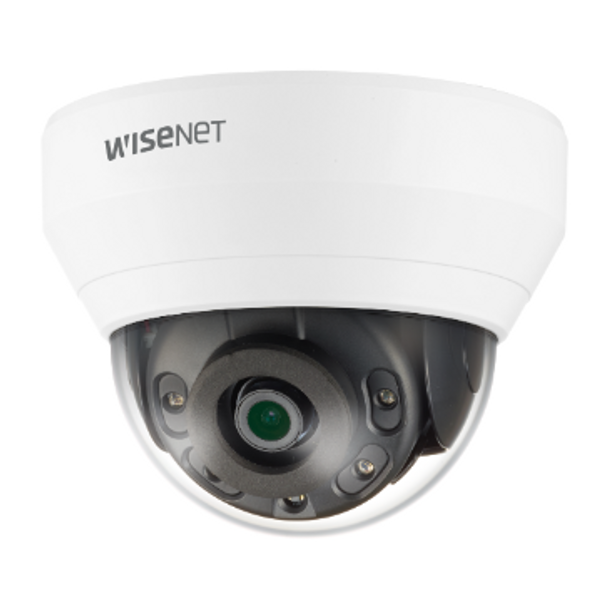

Hanwha Vision QND-6032R 2MP Indoor Vandal-Resistant Dome Camera
Description
Hanwha Vision QND-6032R – 2MP Indoor Vandal-Resistant Dome
The Hanwha Vision QND-6032R is a 2MP indoor IR dome camera built for classrooms, retail and offices. It offers 1920x1080 (2MP) video at up to 30 fps, a 2.8mm lens with a 113.74° horizontal view and built-in IR reaching 20 m (66 ft).
Key Specifications
| Max video resolution | 1920x1080 (2MP) |
| Max frames per second | 30 fps |
| Image sensor | 2 MP 1/2.8" CMOS |
| Focal length / lens | 2.8mm |
| Horizontal field of view | 113.74° |
| Min illumination (color) | 0.1 lux |
| Built-in IR | 20 m (66 ft) |
| Power | DC, PoE 802.3af (15 W) |
| Operating temperature | 14 to 131°F / -10 to 55°C |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Hanwha Vision QND-6032R?
- 1920x1080 (2MP) video at up to 30 fps
- 2.8mm lens and a 113.74° horizontal view
- Built-in IR: 20 m (66 ft)
- Power: DC, PoE 802.3af (15 W)
Clear Video Day and Night
The QND-6032R captures color video down to 0.1 lux; it has built-in IR that reaches 20 m (66 ft).
Coverage and Resolution
For the QND-6032R: a 2.8mm lens covers a 113.74° horizontal field of view; resolution is up to 1920x1080 (2MP) at 30 fps.
Analytics and Events
Onboard analytics and event features include Defocus Detection, Directional/Virtual Line Detection, Motion Detection (4 Polygonal Zones), Enter/Exit, Tampering.
Built-In Cybersecurity
Security features include Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log.
Installation and Integration
Key installation details: power input: DC, PoE 802.3af (15 W); operating temperature: 14 to 131°F / -10 to 55°C; edge storage: Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum]; compression: H.264, H.265, MJPEG; integration: ONVIF.
Typical Applications
- Classrooms and school hallways
- Retail floors and checkout areas
- Offices and lobbies
- Hallways and stairwells
Compare Hanwha Vision Q Series Dome Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| Hanwha Vision QND-6032R (this camera) | 2MP | Indoor IR dome camera | Classrooms, retail and offices |
| Hanwha Vision QNV-6023R | 2MP | Outdoor IR vandal dome camera | Entrances, building perimeters and parking areas |
| Hanwha Vision QNV-6032R | 2MP | Outdoor IR vandal dome camera | Entrances, building perimeters and parking areas |
| Hanwha Vision QNV-7080R | 4MP | Outdoor IR vandal dome camera | Entrances, building perimeters and parking areas |
| Hanwha Vision QND-8030R | 5MP | Indoor IR dome camera | Classrooms, retail and offices |
| Hanwha Vision QNV-8030R | 5MP | Outdoor IR vandal dome camera | Entrances, building perimeters and parking areas |
Explore More
- Browse Dome Cameras at Affinitech Store
- Browse IR Cameras at Affinitech Store
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision QND-6032R
What resolution does the Hanwha Vision QND-6032R capture?
Up to 1920x1080 (2MP) at 30 fps.
What lens does it use?
2.8mm; horizontal field of view 113.74°.
Does it see in the dark?
Yes. Built-in IR reaches 20 m (66 ft).
What is the operating temperature range?
14 to 131°F / -10 to 55°C.
How is it powered?
DC, PoE 802.3af (15 W).
What video compression does it support?
H.264, H.265, MJPEG.
Does it support onboard storage?
Yes: Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum].
What cybersecurity features are built in?
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log.
Is it ONVIF compliant?
Yes, ONVIF is supported.
What analytics are supported?
Defocus Detection, Directional/Virtual Line Detection, Motion Detection (4 Polygonal Zones), Enter/Exit, Tampering.
What are the dimensions and weight of the Hanwha Vision QND-6032R?
Dimensions: ø110x86 mm (ø4.33x3.39 in). Weight: 0.56 lb.
Detailed Specifications
Hanwha Vision QND-6032R Specifications
| Specification | Details |
|---|---|
| Specifications | |
| Sensor | 2 MP 1/2.8" CMOS |
| Focal Length | 2.8mm |
| Maximum Aperture | f/2 |
| Lens Field of View | Horizontal: 113.74°; Vertical: 61.5°; Diagonal: 134.45° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 Lux; B&W: 0 Lux |
| Shutter Speed | 1/12,000 to 1/5 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 350°; Vertical: 0 to 67° |
| Video | |
| Streaming Resolution | 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711, G.726 |
| Built-In Mic | Yes |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, PIM, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, SUNAPI (HTTP API), Wisenet Open Platform |
| Analytics | Defocus Detection, Directional/Virtual Line Detection, Motion Detection (4 Polygonal Zones), Enter/Exit, Tampering |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| System Requirements | |
| Windows OS Support | Windows 7, 8.1, 10 |
| Mac OS Support | macOS 10.14, macOS 10.13, macOS 10.12 |
| Environmental | |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 90% |
| General | |
| Memory | 512 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] |
| Pan/Tilt | None |
| Alarm I/O | 1 / 1 |
| I/O Connections | 1 x RJ45; 1 x Power; 1 x BNC |
| IR Range | 65.6' / 20 m |
| Supported Languages | Czech; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Polish; Portuguese; Russian; Simplified Chinese; Spanish; Swedish; Turkish |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | PoE: 6 W; DC: 5.1 W |
| Material of Construction | Plastic |
| Product Dimensions | ø110x86 mm (ø4.33x3.39 in) |
| Product Weight | 0.56 lb |
