AXIS Electrical Safety Kit B 230 V AC with Surge Protection, 03537-001
Description
AXIS Electrical Safety Kit B 230 V AC
The AXIS Electrical Safety Kit B 230 V AC adds surge protection, a miniature circuit breaker and terminal blocks to an AXIS Surveillance Cabinet. It is designed to protect the installer and the equipment inside the cabinet, and it makes mains wiring cleaner and more reliable. Axis says the kit should be connected to main power by a certified electrician. The matching Electrical Safety Kit A (120 V AC) covers the other mains supply and is sold separately.
Key Specifications
| Part number | 03537-001 |
| Type | Electrical safety kit for surveillance cabinets |
| Mains voltage | 230 V/400 V |
| Includes | Surge protector, MCB fuse, terminal block |
| Surge protector | Type II / Type III (IEC 61643-11), Imax 50 kA (8/20 µs) |
| Protection level Up | ≤ 1.5 kV |
| MCB tripping curve | Curve C |
| Operating temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Approvals | UL/cUL, CE, RCM, UKCA; TAA compliant |
| Weight | 263 g (0.6 lb) |
Full specifications are listed in the Detailed Specifications tab.
Installation and Use
- Surge protection and a miniature circuit breaker in one kit, with terminal blocks for the connections.
- Intended for the AXIS Surveillance Cabinet series; connect it to main power through a certified electrician.
- The box contains the kit, the MCB fuse, the surge protector, the terminal block and third-party documentation.
Compatible Products
Axis lists these cabinets and power supplies as compatible, available at Affinitech Store:
- AXIS T98A15-VE Surveillance Cabinet
- AXIS T98A16-VE Surveillance Cabinet
- AXIS T98A17-VE Surveillance Cabinet
- AXIS T98A18-VE Surveillance Cabinet
- AXIS TQ1808-VE Surveillance Cabinet
- AXIS TQ1817-VE Surveillance Cabinet
- AXIS Power Supply DIN CP-D 24/4.2 100 W
- AXIS Power Supply DIN PS24 480 W
- AXIS Power Supply DIN PS56 240 W
- AXIS Power Supply DIN PS56 480 W
Axis also lists the TQ1825-VE to TQ1828-VE Safety Cabinets, which are not currently on the store.
Related Products
Related AXIS accessories, available at Affinitech Store:
- AXIS Electrical Safety Kit A 120 V AC
- AXIS TU8001 Ethernet Surge Protector
- AXIS T8061 Outdoor Ethernet Surge Protector
Explore More
- Browse all Power Supplies at Affinitech Store
- Browse all Cabinets at Affinitech Store
- Shop more AXIS products at Affinitech Store
Frequently Asked Questions About AXIS Electrical Safety Kit B
What is the AXIS Electrical Safety Kit B?
It is a kit with a surge protector, a miniature circuit breaker and a terminal block for AXIS Surveillance Cabinets, made for a 230 V AC mains supply.
Who should install it?
Axis says the kit can be connected to main power by a certified electrician.
What protection does it offer?
The surge protector is Type II/Type III to IEC 61643-11 with a combined pulse of 6 kV and a protection level of ≤ 1.5 kV; the MCB uses a Curve C tripping curve.
What temperature range does it handle?
-30 °C to 70 °C (-22 °F to 158 °F).
Which cabinets is it for?
Axis lists the T98A15-VE to T98A18-VE, TQ1808-VE and TQ1817-VE surveillance cabinets as compatible.
Detailed Specifications
AXIS Electrical Safety Kit B Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | AXIS Electrical Safety Kit B 230 V AC |
| Part number | 03537-001 |
| Approvals | |
| Product markings | UL/cUL, CE, RCM, UKCA |
| Supply chain | TAA compliant |
| Safety | |
| Surge protector | IEC/EN 61643-11 |
| MCB fuse | IEC 60947-2 |
| Terminal block | IEC 60947-7-1:2009, IEC 60947-7-2:2009 |
| Power - Surge Protector | |
| Surge voltage category | III |
| Requirements category (IEC 61643-11) | Type II, Type III |
| Mains voltage | 230 V/400 V |
| Discharge current In (8/20 µs) wire-PE | 20 kA |
| Short-circuit current rating ISCCR | 50 kA |
| Combined pulse UOC | 6 kV |
| Low voltage network | Single-phase, TN-S |
| Response time | 25 ns or less |
| Temporary surge voltage (over-voltage) UTOV | 337 V |
| Max. continuous voltage Uc (AC) | 300 V |
| Discharge current Imax (8/20 µs) wire-PE | 50 kA |
| Discharge current (type III) | 3 kA |
| Protection level Up at IN (L/N-PE) | ≤ 1.5 kV |
| Power - MCB Fuse | |
| Breaking capacity | 3 kA Icu 415 V AC EN/IEC 60947-2; 10 kA Icu 240 V AC EN/IEC 60947-2; 14 kA AIR 240 V AC UL 489 |
| Tripping curve | Curve C |
| Operating Conditions | |
| Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 5-95% RH (non-condensing) |
| Storage Conditions | |
| Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Humidity | 5-95% RH (non-condensing) |
| Weight | |
| Weight | 263 g (0.6 lb) |
| Box Content | |
| Contents | Electrical safety kit, MCB fuse, surge protector, terminal block, third-party documentation |
| Sustainability | |
| Substance control | PVC free; BFR/CFR free in accordance with JEDEC/ECA Standard JS709; RoHS in accordance with EU RoHS Directive 2011/65/EU and 2015/863 and EN IEC 63000:2018; REACH in accordance with (EC) No 1907/2006 |
| Warranty | |
| Warranty | 3-year warranty per Axis datasheet |
| Shipping | |
| Shipping weight | 1.03 lb |
| Shipping dimensions (W x D x H) | 4.33 x 6.5 x 1.77 in |
Related Products
Related Products
AXIS Electrical Safety Kit A 120 V AC with Surge Protection, 03536-001
Brand: AXIS Communications

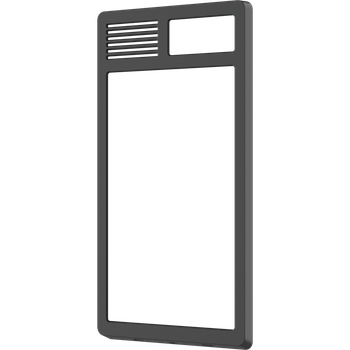

AXIS TI8909 Safety Protection Cover for I8307-VE, 03173-001
