AXIS 90 W Midspan AC/DC for 24 V AC or 20-26.4 V DC, 02209-001
Description

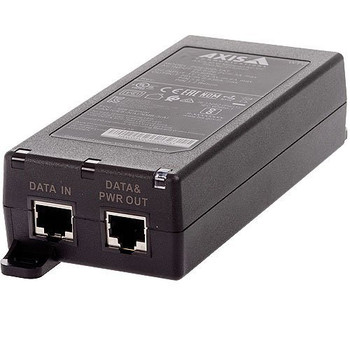

AXIS 90 W Midspan AC/DC

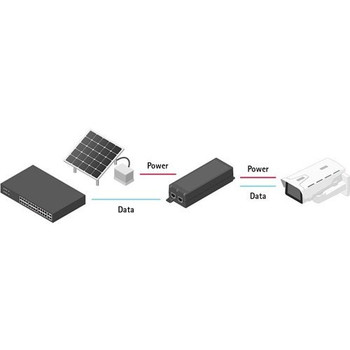

The AXIS 90 W Midspan AC/DC is a PoE injector that runs from 24 V AC or 20-26.4 V DC and supplies up to 90 W over Ethernet, including IEEE 802.3bt and Axis High PoE 60 W. Use it where mains power is not an option, such as retrofit PTZ installations, battery-backed or solar-powered sites, and equipment with its own low-voltage supply. It detects PoE and PoE+ devices automatically, passes 10/100/1000 Mbps data and mounts on a wall, shelf or DIN rail.
Key Specifications
| Part number | 02209-001 |
| Type | PoE++ midspan, AC/DC input |
| PoE standards | IEEE 802.3af, 802.3at, 802.3bt (90 W and 60 W), Axis High PoE 60 W |
| Output | 56 V DC, max 90 W |
| Input | 20-26.4 V DC or 24 V AC +/-20% |
| Data rate | 10/100/1000 Mbps |
| Mounting | Wall, shelf or DIN rail |
| Operating temperature | -20 to 70 °C at 30 W down to -20 to 40 °C at 90 W |
| Dimensions | 189 x 80 x 44 mm (7.44 x 3.15 x 1.73 in) |
| Weight | 500 g (1.1 lb) |
| Warranty | 3-year Axis warranty |
Full specifications are listed in the Detailed Specifications tab.
Related Products
Related AXIS accessories, available at Affinitech Store:
- AXIS 30 W Midspan AC/DC
- AXIS TU8004 90 W Midspan
- AXIS Q62 90 W 1-Port Midspan
- AXIS TU8003 90 W Connectivity Midspan
- AXIS TU8006 60 W PoE Midspan
- AXIS T8127 60 W PoE Splitter 12/24 V DC
Explore More
- Browse all PoE Devices at Affinitech Store
- Browse all Power Supplies at Affinitech Store
- See every Network Camera Accessory we carry
- Shop more AXIS products at Affinitech Store
Frequently Asked Questions About AXIS 90 W Midspan AC/DC
What does the AXIS 90 W Midspan AC/DC do?
It sends data and up to 90 W of PoE power over one Ethernet cable and runs from 24 V AC or 20-26.4 V DC instead of mains power.
Which PoE levels does it support?
IEEE 802.3af (15 W), 802.3at (30 W), Axis High PoE 60 W and IEEE 802.3bt (90 W and 60 W).
What input power does it need?
20 to 26.4 V DC or 24 V AC with a 20% tolerance.
Is it good for retrofitting PTZ cameras?
Axis highlights it for retrofit installations where new cabling is not possible, including box, dome and PTZ cameras.
Does the temperature range change with the load?
Yes. It operates up to 70 degrees C at 30 W and up to 40 degrees C at the full 90 W.
How can it be mounted?
On a wall, on a shelf or on a DIN rail.
What is the warranty?
Axis gives the AXIS 90 W Midspan AC/DC a 3-year warranty.
Detailed Specifications
AXIS 90 W Midspan AC/DC Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | AXIS 90 W Midspan AC/DC |
| Category | Midspans |
| Part number | 02209-001 |
| Data and Power | |
| Function | Delivers data and power to a network video product over one Ethernet cable; pair with a PoE splitter for products without built-in PoE |
| Data rate | 10/100/1000 Mbps |
| Power | 15 W: IEEE 802.3af; 30 W: IEEE 802.3at; 60 W: Axis High PoE 60 W (dual signature); 90 W: IEEE 802.3bt |
| DC input | 20 to 26.4 V DC |
| AC input | 24 V AC +/-20% |
| Output | 56 V DC (max 90 W) |
| Connectors | Shielded RJ45 (EIA 568A and 568B); 3-pin AC/DC connector |
| Wiring | Data on pairs 1/2 and 3/6 (10/100 Ethernet) or all four pairs (Gigabit Ethernet); power on pairs 1/2 (return) and 3/6 (+) and on pairs 7/8 (return) and 4/5 (+), each max 0.80 A |
| Installation and Management | |
| Detection | Automatically detects PoE and PoE+ devices and supplies inline power |
| Display | Local LED management display |
| General | |
| Casing | Plastic |
| Color | Black |
| Sustainability | PVC free; halogen free |
| Indicators | Main power LED, fault LED, PoE LED |
| Mounting | Wall, shelf or DIN rail |
| Operating Conditions | |
| Temperature | 30 W: -20 to 70 °C; 45 W: -20 to 60 °C; 60 W: -20 to 55 °C; 75 W: -20 to 50 °C; 90 W: -20 to 40 °C |
| Humidity | Max 95% RH (non-condensing) |
| Storage temperature | -40 to 75 °C (-40 to 167 °F) |
| Approvals | |
| Safety | IS 13252, IEC/EN/UL 62368-1 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27 |
| EMC | EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, EAC |
| Dimensions and Weight | |
| Dimensions | 189 x 80 x 44 mm (7.44 x 3.15 x 1.73 in) |
| Weight | 500 g (1.1 lb) |
| Box Content | |
| Included accessories | Installation guide |
| Compatibility | |
| Compatible with | Axis PoE devices; use with a PoE splitter for network video products without built-in PoE support |
| Warranty | |
| Warranty | Axis 3-year warranty |
| Shipping (Axis product data) | |
| Shipping weight | 1.28 lb |
| Shipping dimensions (W x D x H) | 3.54 x 8.66 x 2.17 in |
