AXIS Lens CS 12-50 mm F1.4 P-Iris 8MP, 01690-001
Description
AXIS Lens CS 12-50 mm F1.4 P-Iris 8MP
The AXIS Lens CS 12-50 mm F1.4 P-Iris 8MP is a varifocal CS-mount telephoto lens with precise P-Iris control for AXIS P1378, P1388 and Q1656 box cameras. P-Iris corrects the imperfections of an auto-iris lens and improves contrast, clarity, resolution and depth of field, and the lens is IR-corrected so focus holds between day and night mode. It supports sensors up to 1/1.8-inch and reaches objects far away.
Key Specifications
| Part number | 01690-001 |
| Type | Optional lens (CS-mount, varifocal, telephoto) |
| Focal length | 12-50 mm |
| F-number | F1.4 |
| Iris | P-Iris |
| Mount | CS-mount |
| Image sensor size | Up to 1/1.8-inch |
| IR correction | IR-corrected |
| Resolution class | Up to 8 megapixel |
| Shipping weight | 0.49 lb |
Full specifications are listed in the Detailed Specifications tab.
Compatible Cameras
Axis lists the P1378, P1388 and Q1656 families as compatible. Available at Affinitech Store:
- AXIS P1378 8MP 4K Indoor Varifocal Box Camera
- AXIS P1378-LE 8MP 4K Outdoor IR Varifocal Box Camera
- AXIS P1388 8MP 4K Indoor AI Box Camera
- AXIS P1388-B 8MP Indoor AI Box Camera (barebone, no lens)
- AXIS P1388-LE 8MP 4K Outdoor AI IR Box Camera
- AXIS P1388-BE 8MP Outdoor AI Box Camera (barebone, no lens)
- AXIS Q1656 4MP Indoor AI Box Camera
- AXIS Q1656-B 4MP Indoor AI Box Camera (barebone, no lens)
- AXIS Q1656-LE 4MP Outdoor AI Box Camera with IR and Wiper
- AXIS Q1656-BE 4MP Outdoor AI Box Camera (barebone, no lens)
- AXIS Q1656-BLE 4MP Outdoor IR Box Camera (barebone, no lens)
Axis US product data also gives the AXIS Q1645, Q1647 and P1377 (with their LE versions) as examples; those are on our store but not on the current Axis compatibility list, so confirm before ordering.
Related Products
Related AXIS accessories, available at Affinitech Store:
- AXIS Lens CS 3.9-10 mm F1.5 P-Iris 8MP
- AXIS Lens i-CS 9-50 mm F1.5 8MP
- AXIS Tamron 5MP Lens P-Iris 8-50 mm F1.6
- AXIS Lens CS 15-100 mm F1.9 P-Iris
- AXIS Computar Lens CS 12.5-50 mm DC-Iris
Explore More
- Browse all Lenses at Affinitech Store
- See every Network Camera Accessory we carry
- Shop more AXIS products at Affinitech Store
Frequently Asked Questions About AXIS Lens CS 12-50 mm F1.4 P-Iris 8MP
What is the AXIS Lens CS 12-50 mm F1.4 P-Iris 8MP?
A varifocal CS-mount telephoto lens, part number 01690-001, with a 12-50 mm focal length and F1.4 aperture.
Which cameras does it fit?
Axis lists the AXIS P1378, P1388 and Q1656 families, including the barebone and LE versions.
What does P-Iris do?
It gives precise iris control that Axis says improves contrast, clarity, resolution and depth of field compared with an auto-iris lens.
Is it IR-corrected?
Yes, so you do not need to refocus when the camera switches between day and night mode.
What sensor size does it support?
Sensors up to 1/1.8-inch.
What angle of view does it give?
On the AXIS P1378 and P1388 it covers 36 to 9 degrees, and on the AXIS Q1656 it covers 36 to 9.5 degrees. Angles on the outdoor models are measured with the lens in the IK10 position.
Detailed Specifications
AXIS Lens CS 12-50 mm F1.4 P-Iris 8MP Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | AXIS Lens CS 12-50 mm F1.4 P-Iris 8MP |
| Part number | 01690-001 |
| Description | Varifocal IR-corrected 12-50 mm P-Iris lens for cameras up to 8 megapixel and a 1/1.8-inch sensor |
| Key Specifications | |
| Focal length | 12-50 mm |
| F-number | F1.4 |
| Iris | P-Iris |
| Mount | CS-mount |
| Correction | IR-corrected |
| Image sensor size | 1/1.8-inch (9.3 mm diameter) |
| Dimensions (max length x max width) | 79.5 x 68.6 mm (3.1 x 2.7 in) |
| Angle of view | P1378/P1388 families: 36-9 degrees; Q1656 families: 36-9.5 degrees (outdoor models measured in the IK10 position) |
| Compatibility | |
| Compatible with | AXIS P1378/-LE, P1388/-B/-LE/-BE, Q1656/-B/-LE/-BE/-BLE |
| Also named in Axis US product data | AXIS Q1615/-LE Mk II, Q1645/-LE, Q1647/-LE, P1377/-LE |
| Parts Included | |
| Contents | 1 lens |
| Quantity | 1 |
| Shipping (Axis product data) | |
| Weight | 0.49 lb |
| Dimensions (W x D x H) | 4.72 x 5.12 x 3.74 in |
Related Products
Related Products
AXIS Lens CS 2.8-13 mm F1.4 DC-Iris 5MP, 01775-001
Brand: AXIS Communications

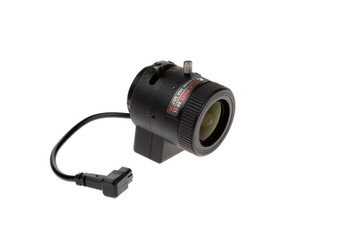

AXIS Lens CS 3-10.5 mm F1.4 DC-Iris 2 MP, 01774-001
