AXIS 30 W 1-Port PoE+ Gigabit Midspan, 02172-004
Description
AXIS 30 W 1-Port PoE+ Midspan
The AXIS 30 W Midspan is a single-port PoE+ injector for IEEE 802.3at Type 2 Class 4 cameras and other network devices. It adds up to 30 W of power to one Ethernet cable at 10/100/1000 Mbps, so a PoE+ camera can run from an existing switch without PoE. It also supports IEEE 802.3af devices, runs on 100 to 240 V AC, and mounts on a wall, a shelf or a DIN rail.
Key Specifications
| Part number | 02172-004 |
| Type | 1-port PoE+ midspan (power injector) |
| PoE standard | IEEE 802.3at Type 2 Class 4; IEEE 802.3af |
| Power output | 56 V DC, max 30 W |
| Data rate | 10/100/1000 Mbps |
| Input voltage | 100–240 V AC, 47–63 Hz (C13 power connector) |
| Compatible with | IEEE 802.3at Class 4 and IEEE 802.3af PoE devices |
| Mounting | Wall, shelf or DIN rail |
| Operating temperature | -20 °C to 40 °C (-4 °F to 104 °F) at 30 W; -20 °C to 55 °C (-4 °F to 131 °F) at 15 W |
| Dimensions | 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in) |
Full specifications are listed in the Detailed Specifications tab.
Installation and Use
- Plug-and-play: it detects a PoE device automatically and supplies inline power.
- Comes with a mains cable (IEC C13) and an installation guide.
- Front-panel port LED shows power and data connectivity.
- Plastic, PVC-free and halogen-free casing in black.
Compatible Cameras
The AXIS 30 W Midspan powers any IEEE 802.3at Class 4 (PoE+) or IEEE 802.3af device that needs 30 W or less. A selection of popular Class 4 AXIS cameras available at Affinitech Store:
- AXIS Q1656-LE 4MP Outdoor AI Box Camera with IR
- AXIS Q3546-LVE 4MP Outdoor AI IR Dome Camera
- AXIS Q3548-LVE 8MP 4K Outdoor AI IR Dome Camera
- AXIS Q3556-LVE 4MP AI Dome with Audio Analytics
- AXIS Q3558-LVE 8MP AI Dome with Audio Analytics
- AXIS M4308-PLE 12MP 360° Panoramic Camera
- AXIS P4707-PLVE 2x5MP Multisensor Camera
- AXIS P4708-PLVE 2x8MP Multisensor Camera
- AXIS P5655-E 1080p 32x Outdoor PTZ Camera
- AXIS Q1805-LE 1080p 32x Outdoor IR Bullet Camera
- AXIS Q1806-LE 3K 32x Outdoor IR Bullet Camera
- AXIS Q1808-LE 10MP Outdoor IR Bullet Camera
and other AXIS PoE Class 1-4 devices. Cameras that need more than 30 W, such as high-power PTZ models, need a 60 W or 90 W midspan.
Related Products
Related AXIS power accessories, available at Affinitech Store:
- AXIS T8120 15 W 1-Port PoE Midspan
- AXIS 30 W Midspan AC/DC

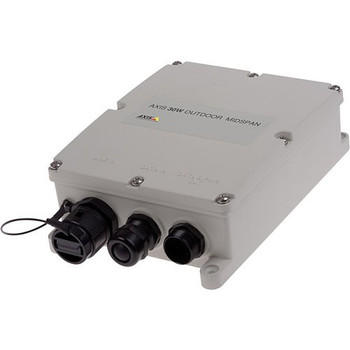

- AXIS 30 W Outdoor Midspan
- AXIS TU8006 60 W PoE Midspan
- AXIS T8061 Ethernet Surge Protector
- AXIS TU8001 Ethernet Surge Protector
Explore More
- Browse all PoE Devices at Affinitech Store
- Browse all Power Supplies at Affinitech Store
- Shop more AXIS products at Affinitech Store
Frequently Asked Questions About AXIS 30 W Midspan
What is the AXIS 30 W Midspan used for?
It adds PoE+ power to one Ethernet cable so a camera or other device can get data and power from a switch without PoE.
Which PoE standards does it support?
IEEE 802.3at Type 2 Class 4 (PoE+) and IEEE 802.3af.
How much power does it deliver?
56 V DC, up to 30 W.
Does it support Gigabit Ethernet?
Yes, 10/100/1000 Mbps.
What is in the box?
The midspan, an installation guide and an IEC C13 mains cable.
What is the warranty?
Axis gives the AXIS 30 W Midspan a 3-year warranty.
Detailed Specifications
AXIS 30 W Midspan Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | AXIS 30 W Midspan |
| Part number | 02172-004 (US) |
| Approval model | POEA30U-1ATE |
| Midspans | |
| Function | Data and power are fed to a network video product through an Ethernet cable; use together with a PoE splitter for a network video product without built-in PoE support |
| Data rate | 10/100/1000 Mbps |
| Installation and management | Automatically detects PoE and supplies inline power; local LED management display |
| Data & Power | |
| Power | Power over Ethernet Plus (PoE+) |
| Standard | IEEE 802.3at Type 2 Class 4 |
| Power | |
| Input | AC input voltage: 100 to 240 V AC; AC frequency: 47–63 Hz |
| Output | 56 V DC (max 30 W) |
| Power consumption | No remote device connected: 100 mW; 30 W remote device connected: 36 W |
| Connectors | |
| Ethernet | Shielded RJ45 |
| Power connector | C13 |
| Wiring | |
| Data | Pairs 1/2 and 3/6 for 10/100 Ethernet; all four pairs for Gigabit Ethernet |
| Power | Pairs 1/2 -ve, 3/6 +ve |
| General | |
| Casing | Plastic |
| Color | Black |
| Sustainability | PVC free; halogen free |
| Display and indicators | LEDs located on the front panel; port LED: power indicator and data connectivity |
| Mounting | Wall, shelf or DIN rail |
| Operating Conditions | |
| Temperature | At 30 W: -20 °C to 40 °C (-4 °F to 104 °F); at 15 W: -20 °C to 55 °C (-4 °F to 131 °F) |
| Humidity | Max 95% RH (non-condensing) |
| Storage Conditions | |
| Temperature | -40 °C to 75 °C (-40 °F to 167 °F) |
| Approvals | |
| Safety | IS 13252, UL 60950-1, UL 62368-1, CCC |
| EMC | EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24, EAC |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| Dimensions and Weight | |
| Dimensions | 30 x 46 x 140.1 mm (1.1 x 1.8 x 5.5 in) |
| Weight | 145 g (0.3 lb) |
| Box Content | |
| Included accessories | Installation guide; mains cable IEC C13 |
| Optional Accessories | |
| Mounting | AXIS T91A03 DIN Rail Clip |
| Warranty | |
| Warranty | Axis 3-year warranty |
