Avigilon H5A 12C-H5A-4MH-DP1-B 12MP 360° Outdoor Multisensor Camera
Description
Avigilon H5A 12C-H5A-4MH-DP1-B 12MP 360° Outdoor Multisensor Camera
The Avigilon H5A 12C-H5A-4MH-DP1-B is a 12 MP outdoor multisensor camera with 4 adjustable 3MP sensors and 360° of maximum coverage in a single pendant-mount unit. It combines AI-powered video analytics, varifocal 3.3 - 5.7 mm lenses, true WDR and optional IR in an IK10, IP66/IP67 and NEMA 4X rated housing, so one camera can replace several fixed cameras at building corners, parking lots and crossroads. The package includes the camera module, the H5AMH-AD-PEND1 pendant adapter and a clear dome cover; order a WLMT-1001 wall arm or NPTA-1001 NPT adapter to mount it. It works with Avigilon Unity Video and Avigilon Control Center.
Key Specifications
| Sensors / total resolution | 4 x 3MP sensors; 7680 (H) x 1080 (V) (16:9); 8192 (H) x 1536 (V) (4:3) with 4 sensors |
| Max coverage | 360° with adjustable sensor positions |
| Max frames per second | 30 / 25 fps (60 Hz / 50 Hz); 4 sensors |
| Lens (per sensor) | 3.3 - 5.7 mm varifocal, F1.5 - F1.9, remote focus and zoom |
| Horizontal field of view (per sensor) | 53° - 97° (16:9); 53° - 99° (4:3) |
| Wide dynamic range | 120 dB true WDR (dual exposure) |
| Min illumination (color) | 0.020 lux (F1.5); 0 lux with optional IR illuminator |
| Optional IR | H4AMH-AD-IRIL1 ring, 30 m (98 ft) at 0 lux |
| Analytics | AI object classification (person, vehicle) with Teach by Example |
| Power | PoE+ (802.3at Type 2) without IR; 60 W PoE++ (802.3bt Type 3) with IR; 24 VDC / 24 VAC |
| IP / IK rating | IP66, IP67, NEMA 4X / IK10 |
| Operating temperature | -40 °C to +60 °C (-40 °F to 140 °F), pendant mount |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Avigilon H5A 12C-H5A-4MH-DP1-B?
- 4 sensors of 3 MP each give a combined view of 7680 (H) x 1080 (V) (16:9)
- 360° maximum field of view from one camera, with sensors that can be aimed independently
- Varifocal 3.3 - 5.7 mm lenses with remote focus and zoom and lens distortion correction
- True WDR up to 120 dB and 0.020 lux color sensitivity for difficult lighting
- AI-powered analytics that classify people and vehicles with Teach by Example tuning
- IK10 impact, IP66/IP67, NEMA 4X and NEMA TS2 ratings for outdoor installation
- Onboard FIPS 140-3 Level 3 TPM, Secure Boot and signed, encrypted firmware
- Dual microSD slots for onboard recording and an optional IR illuminator ring
One Camera, Wide Coverage
The Avigilon H5A 12C-H5A-4MH-DP1-B packs 4 image sensors into one housing. Each sensor can be tilted from +7° to 96° from the horizon and panned about +/-120°, so installers can build a seamless 360° panorama or aim the sensors at separate areas. Varifocal lenses let you set each field of view for the scene, which makes it a strong fit for outdoor building corners, parking lots and crossroads, and for indoor areas with high ceilings and long corridors.
Clear Images in All Lighting
Each sensor delivers 120 dB true WDR (dual exposure), 3D noise reduction and 0.020 lux color sensitivity at F1.5. For total darkness, add the optional H4AMH-AD-IRIL1 IR illuminator ring, which uses high-power 850 nm LEDs to reach 30 m (98 ft) at 0 lux when the camera is mounted at 4 m (13 ft). IR needs 60 W high-power PoE (802.3bt), so plan the switch or injector accordingly.
AI Video Analytics
Onboard analytics detect objects in an area, loitering, objects crossing a beam, objects that stop, objects too close, direction violations and tampering. In outdoor mode the camera classifies persons and vehicles (car, truck, bicycle, motorcycle and bus), and with Avigilon Control Center 7.2 or higher or Avigilon Unity Video it supports Teach by Example.
Built-In Cybersecurity
Signed and encrypted firmware, Secure Boot, HTTPS encryption, TLS 1.3, 802.1x port-based authentication, a user access log and an onboard TPM with FIPS 140-3 Level 3 support protect the camera. A CAM-FIPS camera license enables the FIPS cryptographic mode.
Typical Applications
- Building corners and exterior walls
- Parking lots and drop-off loops
- Crossroads and campus intersections
- High-ceiling lobbies, warehouses and atriums
- Long corridors and hallway intersections
Compatible Accessories
Compatible accessories for the Avigilon H5A 12C-H5A-4MH-DP1-B. Contact us to order any of these:

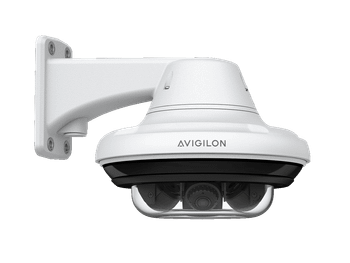

- Avigilon WLMT-1001 Pendant Wall Arm (required for wall mounting; order one of WLMT-1001 or NPTA-1001)
- Avigilon NPTA-1001 Pendant NPT Adapter
- Avigilon PLMT-1001 Aluminum Pole Mount Bracket (works with WLMT-1001)
- Avigilon CRNMT-1001 Corner Mount Bracket (works with WLMT-1001)
- Avigilon H4AMH-AD-IRIL1 IR Illuminator Ring
- Avigilon H5AMH-DO-COVR1-SMOKE Smoked Dome Cover
- Avigilon POE60U-1BTE 60 W Gigabit 802.3bt PoE Injector
- Avigilon CAM-FIPS Camera License (enables the FIPS cryptographic module)
Compare Avigilon Multisensor and Outdoor Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| Avigilon H5A 12C-H5A-4MH-DP1-B (this camera) | 7680 (H) x 1080 (V) (16:9) | 12 MP, 4 sensors, 360° coverage | Building corners, parking lots, crossroads |
| Avigilon H5A 9C-H5A-3MH-DP1-B | 5760 x 1080 | 9 MP, 3 sensors, 270° coverage | Building corners, entrances, parking lot edges |
| Avigilon H6A 4.0C-H6A-DO1-IR-B | 2688 x 1520 | 4 MP single-sensor outdoor IR dome, audio analytics | Entrances, perimeters, parking areas |
Need a single-sensor outdoor camera instead? See the Avigilon H6A 4MP Outdoor IR Dome (4.0C-H6A-DO1-IR-B).
Explore More
- Browse all Panoramic Cameras at Affinitech Store
- Shop Outdoor Cameras at Affinitech Store
- See more AI-Powered Cameras at Affinitech Store
- Explore Avigilon products at Affinitech Store
Frequently Asked Questions About the Avigilon H5A 12C-H5A-4MH-DP1-B
What resolution does the Avigilon H5A 12C-H5A-4MH-DP1-B capture?
Each of its 4 sensors captures 3 MP, for a combined 7680 (H) x 1080 (V) (16:9) at 30 / 25 fps (60 Hz / 50 Hz).
How much area can it cover?
It provides up to 360 degrees of maximum field of view from one camera, using 4 sensors that can each be aimed.
What lens does each sensor use?
A 3.3 - 5.7 mm varifocal lens (F1.5 - F1.9) with remote focus and zoom, a horizontal field of view of 53 - 97 degrees (16:9) and fixed lens distortion correction.
Does it have built-in IR?
No. IR is optional. Add the H4AMH-AD-IRIL1 IR illuminator ring, which reaches 30 m (98 ft) at 0 lux and requires 60 W high-power PoE (802.3bt).
What is included in the package?
The camera module with the H5AMH-AD-PEND1 pendant adapter and a clear dome cover. You also need one pendant mount, either the WLMT-1001 wall arm or the NPTA-1001 NPT adapter.
Is it rated for outdoor use?
Yes. It is rated IP66/IP67, NEMA 4X and IK10 with NEMA TS2 environmental ratings, and operates from -40 to +60 degrees C (-40 to 140 degrees F) in the pendant mount.
How is it powered?
With IEEE 802.3at Type 2 PoE+ (30 W) without IR, 60 W PoE++ (802.3bt Type 3) with IR, or 24 VDC / 24 VAC. Power consumption is 25.5 W without IR and about 51 W with IR on PoE++.
Which video analytics are supported?
Objects in area, loitering, beam crossing, stopped objects, objects too close, direction violated and tamper detection, with person and vehicle classification outdoors and Teach by Example.
Which video management software works with it?
Avigilon Unity Video and Avigilon Control Center 7.2 or higher, plus ONVIF Profile S, T, M and G conformant platforms.
Does it support onboard recording?
Yes. It has a dual microSD/microSDHC/microSDXC slot, with the two cards working as one contiguous storage region. Class V10 or better cards are recommended.
What cybersecurity features are built in?
Signed and encrypted firmware, Secure Boot, HTTPS, TLS 1.3, 802.1x authentication, a user access log and an onboard TPM with FIPS 140-3 Level 3 support. A CAM-FIPS license enables the FIPS cryptographic mode.
Detailed Specifications
Avigilon H5A 12C-H5A-4MH-DP1-B Specifications
| Specification | Details |
|---|---|
| Image Performance | |
| Image sensor | 1/2.8-inch CMOS, 4 sensors |
| Active pixels (per sensor) | 1920 (H) x 1080 (V) (16:9); 2048 (H) x 1536 (V) (4:3) |
| Max resolution | 7680 (H) x 1080 (V) (16:9); 8192 (H) x 1536 (V) (4:3) with 4 sensors |
| Sensor aspect ratio | 4:3 |
| IR illumination (optional) | High-power 850 nm LEDs, 30 m (98 ft) maximum distance at 0 lux with the camera mounted at 4 m (13 ft); intensity depends on supplied PoE power |
| Minimum illumination | 0.020 lux (F1.5) in color mode; 0 lux with optional IR illuminator |
| Dynamic range, WDR on | 120 dB, true WDR, dual exposure |
| Dynamic range, WDR off | 80 dB |
| 3D noise reduction filter | Yes |
| Image rate, analytics enabled on all sensors | 30 / 25 fps (60 Hz / 50 Hz); 4 sensors (full feature mode: analytics and WDR enabled with H.265) |
| Image rate, High Framerate Mode | 40 / 33 fps (60 Hz / 50 Hz), 4 sensors (analytics disabled with H.265; max frame rate with WDR enabled is 30 fps) |
| Image Control | |
| Image compression | H.264 HDSM SmartCodec, H.265 HDSM SmartCodec, Motion JPEG |
| Streaming | Multi-stream H.264, multi-stream H.265, Motion JPEG |
| Motion detection | Selectable sensitivity and threshold |
| Electronic shutter control | Automatic, manual (1/7.5 to 1/8000 sec) |
| Iris control | Fixed |
| Day/night control | Automatic, manual |
| Flicker control | 60 Hz, 50 Hz |
| White balance | Automatic, manual |
| Backlight compensation | Adjustable |
| Privacy zones | Up to 64 zones |
| Removable privacy zones | Up to 8 zones per image sensor |
| Lens distortion correction | Fixed |
| Lens (per image sensor) | |
| Focal length | 3.3 - 5.7 mm |
| Horizontal field of view | 53° - 97° (16:9); 53° - 99° (4:3) |
| Vertical field of view | 29° - 50° (16:9); 39° - 69° (4:3) |
| Aperture range | F1.5 - F1.9 |
| Control | Fixed iris, remote focus and zoom |
| Network | |
| Network | Gigabit Ethernet, 100BASE-TX, 1000BASE-TX |
| Cabling type | CAT5E |
| Connector | RJ-45 |
| API | ONVIF compliance Profile S, T, M and G (www.onvif.org) |
| Security | Signed and encrypted firmware, password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port-based authentication, TLS 1.3, FIPS 140-3 Level 3 via onboard TPM |
| Secure boot | Yes |
| Protocol | IPv4, IPv6, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, HSTS, QoS, DSCP, MQTT |
| Streaming protocols | RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP, SRTP |
| Device management protocols | SNMP v2c, SNMP v3 |
| Peripherals and Auxiliary I/O | |
| USB port | USB 2.0 |
| Onboard storage | Dual microSD/microSDHC/microSDXC slot; video speed class card required, Class V10 or better recommended. The dual SD cards work as one contiguous region of storage |
| Audio compression | G.711 PCM 8 kHz, Opus |
| Audio input/output | Line level input and output |
| External I/O terminal | Alarm in, alarm out |
| Electrical (Pendant Mount) | |
| Power consumption | Without IR: 26 W with 24 VDC; 37 VA with 24 VAC; 25.5 W with IEEE 802.3at Type 2 (PoE+). With IR: 52 W with 24 VDC; 74 VA with 24 VAC; 51 W with high power PoE (PoE++) |
| External power | 24 VDC +/-10%; 24 VAC rms +/-10%, 50 or 60 Hz |
| PoE | 30 W IEEE 802.3at Type 2 (PoE+); with IR: 60 W (PoE++) IEEE 802.3bt Type 3, Cisco UPoE or legacy high-power PoE; up to 35% IR power on 30 W PoE+ |
| Redundant power | Seamless failover between PoE and auxiliary power and back without interruption in camera operation |
| RTC backup battery | 3 V manganese lithium |
| Mechanical (Pendant Mount) | |
| Dimensions | With wall arm: 385 mm x 262 mm x 299 mm (15.15 x 10.30 x 11.77 in); with NPT adapter: 299 mm x 248 mm (11.77 x 9.76 in) |
| Weight | Pendant: 1680 g (3.7 lb); bezel: 1250 g (2.8 lb); camera module (4 lenses): 1590 g (3.5 lb); optional IR illuminator ring: 670 g (1.5 lb); wall mount: 1190 g (2.6 lb); NPT adapter mount: 470 g (1.04 lb) |
| Body | Aluminum |
| Finish | Cast, anodized and powder coated, Pantone 427C |
| Optional IR illuminator ring | Optional accessory, 30 m (98 ft) IR range |
| Adjustment range (per sensor) | Tilt +7° to 96° from horizon; pan +/-120° (depending on position of image sensors); azimuth +/-180° |
| Environmental (Pendant Mount) | |
| Operating temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Storage temperature | -30 °C to +70 °C (-22 °F to 158 °F) |
| Humidity | 0 - 95% condensing |
| IR illumination behavior | The IR illuminator operates at 100% power from -40 °C to 44 °C (-40 °F to 111 °F), reduces to 60% from 44 °C to 53 °C (111 °F to 127 °F) and turns off above 53 °C (127 °F); hysteresis 6 °C (10.8 °F). On 25.5 W PoE+ the IR illuminator operates at only 35% power and turns off below -26 °C (-15 °F) |
| Certifications (Pendant Mount) | |
| Certifications / approvals | UL, cUL, CE, RoHS, RCM, BIS, UKCA, NOM, KC, BSMI |
| Safety standards | UL 62368-1, CSA 62368-1, IEC/EN 62368-1, IEC/EN 62471 |
| Environmental standards / ratings | IEC 60529 IP66, IP67; IEC/EN 62262 Impact (IK10); IEC/EN 60068-2-6 product vibration; IEC/EN 60068-2-27 product shock; NEMA Type 4X |
| Electromagnetic emissions | FCC Part 15 Subpart B (Class A), ICES-003 (Class A), EN 55032 (Class A), EN 61000-3-2, EN 61000-3-3 |
| Electromagnetic immunity | EN 55035, EN 61000-6-1, EN 50121-4, EN 50130-4 |
| NEMA TS2 | NEMA TS2 paragraph 2.2.7 - 2.2.9 |
| Sustainability | |
| RoHS | In accordance with EU RoHS Directive 2011/65/EU and 2015/863, and standard EN IEC 63000:2018 |
| REACH | In accordance with (EC) No 1907/2006 |
| OECD | Screened for conflict minerals in accordance with OECD guidelines |
| ISO | ISO 14001, ISO 45001 and ISO 9001 |
| WEEE | Compliant with EU WEEE Directive 2012/19/EU and standard EN 50419 |
| RBA | RBA membership and operations in alignment with Code of Conduct v8.0 |
| Video Analytics | |
| Supported analytics events | Objects in area, object loitering, objects crossing beam, object appears or enters area, object not present in area, objects enter area, objects leave area, object stops in area, object too close, direction violated, tamper detection |
| Classified object types, outdoor mode | Person and vehicle sub-types: car, truck, bicycle, motorcycle, bus |
| Classified object types, indoor mode | Person |
| Teach by Example (outdoor mode) | Yes, when used with Avigilon Control Center |
| ACC Enterprise Edition 7.2 or higher | All supported analytic events with people and vehicles and all vehicle sub-types as classified objects |
| Ordering Information | |
| Part number | 12C-H5A-4MH-DP1-B |
| Package contents | Camera module with H5AMH-AD-PEND1 pendant adapter and clear dome cover (4 x 3MP, WDR, 360 degree max field of view, Lightcatcher, 3.3-5.7 mm) |
| Also required | One of WLMT-1001 (wall mount) or NPTA-1001 (pendant NPT adapter) |
| Optional accessories | H5AMH-DO-COVR1-SMOKE smoked dome, H4AMH-AD-IRIL1 IR illuminator, POE60U-1BTE 60 W PoE injector, CAM-FIPS FIPS camera license |
