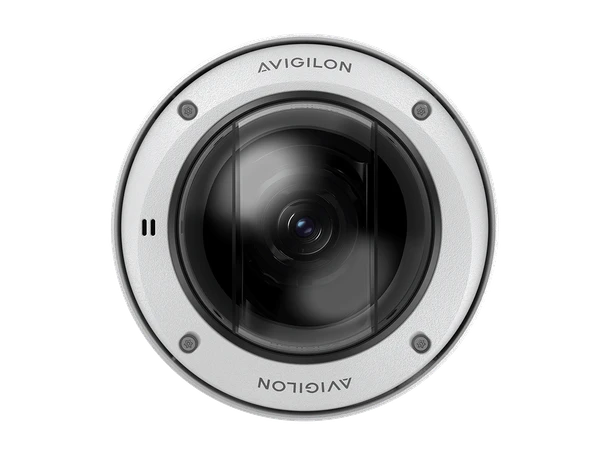

Avigilon H6A 4.0C-H6A-DO1-IR-B 4MP Outdoor IR Dome Camera

Avigilon H6A 4.0C-H6A-DO1-IR-B 4MP Outdoor Dome Camera with IR and Audio Analytics

The Avigilon H6A 4.0C-H6A-DO1-IR-B is a 4 MP outdoor dome camera with built-in IR, a 4.4 - 9.3 mm remote zoom lens and onboard video and audio analytics. Its IP66/IP67/IP68, IPX9K, NEMA 4X and IK11 rated housing stands up to weather and impact, while a built-in microphone listens for screams, breaking glass and car alarms and onboard analytics classify people and vehicles. It suits entrances, building perimeters and parking areas on sites that run Avigilon Unity Video or Avigilon Control Center.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Avigilon H6A 4.0C-H6A-DO1-IR-B?

• 4 MP resolution (2688 x 1520) at 25/30 fps, up to 50/60 fps in High Frame Rate mode
• 4.4 - 9.3 mm F1.3 remote zoom and autofocus lens, so the view can be framed after installation
• High-power 850 nm IR up to 50 m (164 ft) for monitoring in complete darkness
• Outdoor-rated: IP66/IP67/IP68, IPX9K, NEMA 4X and IK11
• Operates down to -50 °C (-58 °F) on PoE+ or 12-24 VDC
• Audio analytics through a built-in microphone with a physical disable switch
• Person and vehicle classification, crowd analytics and onboard FIPS 140-2 Level 3 certified TPM
• Two microSD slots for onboard recording, tested up to 1.5 TB, and a limited 5-year warranty

Clear Video Day and Night

High-power 850 nm IR LEDs light the scene up to 50 m (164 ft) at full telephoto and 25 m (82 ft) at full wide, down to 0 lux in monochrome mode. Without IR, the camera sees down to 0.003 lux in monochrome mode and 0.008 lux in color mode. Wide dynamic range of up to 106 dB (dual exposure) / 136 dB (triple exposure) per IEC 62676 holds detail when bright sky and dark shadows share the frame, and digital defog helps in poor weather.

Adjustable Coverage

The 4.4 - 9.3 mm lens covers a horizontal angle of view of 47° - 111° (16:9), with remote zoom and autofocus, so installers can frame a wide entrance or tighten on a gate without climbing back up. Corridor Mode image rotation, up to 64 privacy zones and electronic image stabilization are built in.

Video and Audio Analytics

Onboard analytics classify people and vehicles (car, pickup truck, large truck, van, bicycle, motorcycle and bus) and detect objects in an area, loitering, beam crossing, direction violations, objects that stop, objects too close, tampering and unusual crowd growth or size, with Teach by Example tuning in Avigilon Unity Video or ACC. Audio analytics detect screams, glass breaks, smoke alarms, dog barks, metal crashes and tire screeches up to 15 m, car alarms up to 30 m, and loud noises and ultrasonic panic alarms up to 40 m.

Built-In Cybersecurity

An onboard FIPS 140-2 Level 3 certified TPM (CC EAL6+), Secure Boot and signed, encrypted firmware protect the camera, along with HTTPS, digest and WS authentication, 802.1x port-based authentication and a user access log. FIPS 140-2 Level 1 operation is available with an optional camera license.

Built for Outdoor Installation

The outdoor dome mounts on a surface, in a ceiling with the in-ceiling adapter, or as a pendant with the NPT adapter and wall arm, and pole and corner adapters extend it to poles and building corners. It powers from PoE (802.3af Class 3, -30 °C to +65 °C), or PoE+ (802.3at Class 4) or 12-24 VDC for -50 °C to +65 °C operation. Pan 360°, azimuth 349° and tilt 92° adjustment makes aiming simple.

Typical Applications

• School and campus entrances
• Building perimeters and exterior walls
• Parking areas and drop-off loops
• Loading areas and service yards
• Covered walkways and outdoor common areas

Compatible Accessories

Compatible accessories for the Avigilon H6A 4.0C-H6A-DO1-IR-B. Contact us to order any of these:

• Avigilon H6A-MT-NPTA1 Pendant NPT Adapter
• Avigilon WLMT-1021 Pendant Wall Arm (1.5" NPT female, 20 cm)
• Avigilon CLADP-1001 In-Ceiling Adapter
• Avigilon CLPNL-1011 Metal Ceiling Panel for suspended ceilings
• Avigilon PLMT-1001 Pole Mount Adapter
• Avigilon CRNMT-1001 Corner Mount Adapter
• Avigilon DMSLD-1001 Weathershield for dome cameras
• Avigilon DMBBL-1011 Replacement IR Dome Bubble
• Avigilon GROM-1011 Pipe Sealing Grommet (10-pack)
• Avigilon CAM-FIPS Camera License (enables FIPS cryptographic module)

Compare Avigilon Dome Cameras

Need an indoor model? See the Avigilon H6A 2MP Indoor IR Dome (2.0C-H6A-D1-IR-B).

Explore More

• Browse the full Dome Cameras collection at Affinitech Store
• Shop Outdoor Cameras at Affinitech Store
• See more AI-Powered Cameras at Affinitech Store
• Shop IR Cameras at Affinitech Store
• Explore Avigilon products at Affinitech Store

Frequently Asked Questions About the Avigilon H6A 4.0C-H6A-DO1-IR-B

What resolution does the Avigilon H6A 4.0C-H6A-DO1-IR-B capture?

Up to 2688 x 1520 (4 MP) at 25/30 fps, or 50/60 fps in High Frame Rate mode, which disables analytics.

What lens and field of view does it have?

A 4.4 - 9.3 mm remote zoom and autofocus lens (F1.3) with a horizontal angle of view of 47° - 111° (16:9) or 35° - 78° (4:3).

How far does the built-in IR reach?

The high-power 850 nm IR LEDs reach up to 50 m (164 ft) at full telephoto and 25 m (82 ft) at full wide, down to 0 lux in monochrome mode. IR power may be reduced at very high or very low temperatures.

Is it rated for outdoor use?

Yes. The outdoor dome is rated IP66, IP67 and IP68 (2 m depth for 2 hours), IPX9K, NEMA 4X and IK11, and operates from -30 °C to +65 °C (-22 °F to 149 °F) on PoE or -50 °C to +65 °C (-58 °F to 149 °F) on PoE+ or 12-24 VDC.

Does it have a built-in microphone?

Yes. The built-in microphone is used for audio analytics and has a physical disable switch. The camera also has line-level audio input and output.

Which sounds can the audio analytics detect?

Scream, glass break, smoke alarm, dog bark, metal crash and tire screech (up to 15 m), car alarm (up to 30 m), and loud noise and ultrasonic panic alarm (up to 40 m).

Which objects can the video analytics classify outdoors?

In outdoor mode it classifies people and vehicles, with vehicle sub-types car, pickup truck, large truck, van, bicycle, motorcycle and bus.

Which video management software works with it?

Avigilon Unity Video 8.0 or higher and Avigilon Control Center (ACC) 7.2 or higher, plus ONVIF Profile S, T, M and G conformant platforms.

How is it powered?

PoE (IEEE 802.3af Class 3), PoE+ (IEEE 802.3at Class 4) or 12-24 VDC. Power consumption is 25 W, or 18 W with IR disabled. Use PoE+ or 12-24 VDC for the full -50 °C operating range.

Does it support onboard recording?

Yes. It has two microSD/microSDHC/microSDXC slots (video speed class V10 or better recommended), tested up to 1.5 TB.

How can it be mounted?

It mounts on a surface, in a ceiling with the CLADP-1001 in-ceiling adapter, or as a pendant with the H6A-MT-NPTA1 NPT adapter and WLMT-1021 wall arm, with optional pole (PLMT-1001) and corner (CRNMT-1001) adapters.

What cybersecurity features are built in?

An onboard FIPS 140-2 Level 3 certified TPM, CC EAL6+, Secure Boot, signed and encrypted firmware, HTTPS, 802.1x port-based authentication and a user access log. FIPS 140-2 Level 1 mode is available with an optional camera license (CAM-FIPS). The camera carries a limited 5-year Avigilon warranty.
