Avigilon H6A-MT-NPTA1 Pendant NPT Adapter for H6A Dome Cameras

Avigilon H6A-MT-NPTA1 Pendant NPT Adapter for H6A Dome Cameras

The Avigilon H6A-MT-NPTA1 is the pendant NPT mount for Avigilon H6A dome cameras, letting the dome hang from a 1-1/2" NPT pipe or from a wall with the WLMT-1021 pendant wall arm. It suits sites with high ceilings, open structures or exterior walls where a flat surface or ceiling mount won't work, and it is covered in Avigilon's installation guides for the H6A, H6X and H6XP domes and the H6A Closed Dome.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Avigilon H6A-MT-NPTA1?

• Avigilon's own pendant mount for the H6A dome family
• Hangs the camera from a standard 1-1/2" NPT pipe
• Mounts to a wall with the WLMT-1021 pendant wall arm
• Extends to poles and building corners with the PLMT-1001 or CRNMT-1001 adapters
• Lock nut included for securing the mount to the pipe adapter
• Cable entry hole and lanyard point for a cleaner, safer install

Mounting Options

Avigilon lists two pendant scenarios for H6A domes. For a pendant NPT mount, order the dome camera and the H6A-MT-NPTA1. For a pendant wall mount, order the dome camera, the H6A-MT-NPTA1 and the WLMT-1021 pendant wall arm, with the PLMT-1001 pole mount adapter or CRNMT-1001 corner mount adapter as options.

Installation Notes

Pull the required cables through the NPT conduit pipe. Apply thread seal tape to the pipe and screw on a 1-1/2" NPT-female to NPT-female pipe adapter, screw the included lock nut onto the pendant NPT mount, then apply thread seal tape to the mount and screw it into the pipe adapter. The NPT pipe and the pipe adapter are not supplied by Avigilon.

Compatible Avigilon Cameras

Compatible cameras for the Avigilon H6A-MT-NPTA1. Linked items are available at Affinitech Store; contact us for the others:

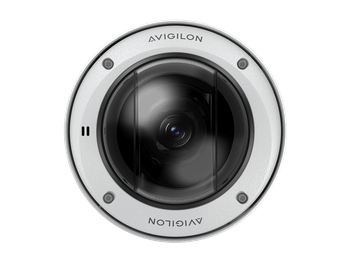

• Avigilon H6A 4.0C-H6A-DO1-IR-B 4MP Outdoor IR Dome Camera
• Avigilon H6A 2.0C-H6A-D1-IR-B 2MP Indoor IR Dome Camera
• Other Avigilon H6A, H6X and H6XP dome cameras
• Avigilon H6A Closed Dome cameras

Related Mounting Accessories

• Avigilon WLMT-1021 Pendant Wall Arm (1.5" NPT female, 20 cm)
• Avigilon PLMT-1001 Pole Mount Adapter
• Avigilon CRNMT-1001 Corner Mount Adapter

Typical Applications

• Gymnasiums, warehouses and atriums with high or open ceilings
• Exterior walls and building corners (with the wall arm)
• Parking structures and covered walkways on conduit pipe

Compare Avigilon NPT Adapters

Explore More

• Browse Housings & Mounts at Affinitech Store
• Shop Dome Cameras at Affinitech Store
• Explore Avigilon products at Affinitech Store

Frequently Asked Questions About the Avigilon H6A-MT-NPTA1

What is the Avigilon H6A-MT-NPTA1?

It is the pendant NPT mount for Avigilon H6A dome cameras. It hangs the dome camera from a 1-1/2 inch NPT pipe, or from a wall when used with the WLMT-1021 pendant wall arm.

Which cameras does it fit?

Avigilon covers the pendant NPT mount in the installation guides for the H6A, H6X and H6XP dome cameras and for the H6A Closed Dome camera. The camera module is mounted to its surface mount adapter, which then attaches to the pendant mount.

What pipe size does it use?

Avigilon recommends a 1-1/2 inch conduit pipe, joined to the mount with a 1-1/2 inch NPT-female to NPT-female pipe adapter.

What is included?

A lock nut for securing the pendant NPT mount on the pipe adapter is included. The NPT pipe and the NPT-female to NPT-female adapter are not supplied by Avigilon and must be sourced separately.

Can I mount the camera on a wall with it?

Yes. Pair it with the Avigilon WLMT-1021 pendant wall arm (1.5 inch NPT female, 20 cm long). For poles or building corners, add the PLMT-1001 pole mount adapter or the CRNMT-1001 corner mount adapter to the wall arm.

How big is the adapter?

The pendant mount accessory measures 155 mm x 65 mm (6.1 x 2.55 inches), depth x height. A dome camera installed on the pendant mount measures 182 mm x 190 mm (7.16 x 7.48 inches).

How much does an H6A dome weigh on the pendant mount?

Avigilon lists 1.63 kg (3.59 lb) for an indoor dome and 2.01 kg (4.43 lb) for an outdoor dome on the pendant mount.

How are cables routed?

Pull the required cables through the NPT conduit pipe. The pendant mount has a cable entry hole for the camera cables, and a lanyard connects to the lanyard hook on the surface mount adapter during installation.

How do I install it on a pipe?

Apply thread seal tape to the pipe and screw on the 1-1/2 inch NPT-female to NPT-female adapter, screw the lock nut onto the pendant NPT mount, then apply thread seal tape to the mount and screw it into the pipe adapter.
