Avigilon H5AMH-AD-PEND1 Pendant Mount Adapter for H5A Multisensor

Avigilon H5AMH-AD-PEND1 Pendant Mount Adapter

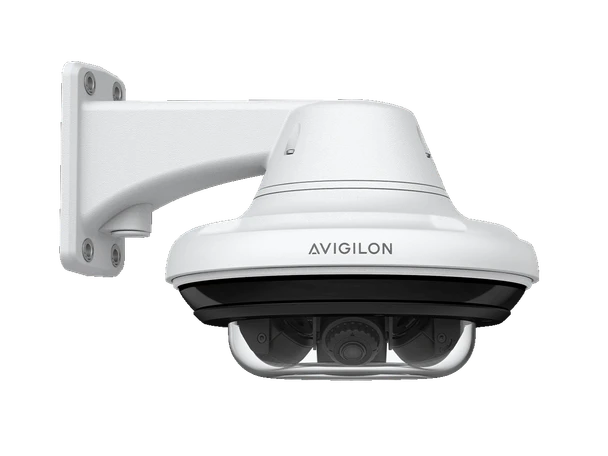

The Avigilon H5AMH-AD-PEND1 is an outdoor pendant mount adapter for the Avigilon H5A Multisensor camera. It lets an H5A camera module hang as a pendant from a WLMT-1001 wall arm or an NPTA-1001 NPT adapter, and it is already included in the H5A pendant (DP1) camera packages. Order one separately when you are building an H5A pendant from a camera module, or replacing an adapter. It must be used with one of the WLMT-1001 or NPTA-1001 mounts and with an H5AMH-DO-COVR1 clear or H5AMH-DO-COVR1-SMOKE smoked dome cover.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Installation Notes

The pendant adapter is one part of a three-piece pendant mount: the adapter itself, a pendant mount (WLMT-1001 wall arm or NPTA-1001 NPT adapter) and a dome cover (H5AMH-DO-COVR1 clear or H5AMH-DO-COVR1-SMOKE smoked). The WLMT-1001 can be extended to poles with the PLMT-1001 pole mount and to corners with the CRNMT-1001 corner mount.

Compatible Products

• Avigilon H5A Multisensor camera modules, including the 12C-H5A-4MH-DP1-B (12 MP, 360°) and 9C-H5A-3MH-DP1-B (9 MP, 270°) pendant packages

Related Products

• Avigilon WLMT-1001 Pendant Wall Arm Mount
• Avigilon H5AMH-DO-COVR1 Clear Dome Cover
• Avigilon H4AMH-AD-IRIL1 IR Illuminator Ring
• Avigilon PLMT-1001 Aluminum Pole Mount Bracket

Explore More

• Browse all Panoramic Cameras at Affinitech Store
• Browse Network Camera Accessories at Affinitech Store
• Explore Avigilon products at Affinitech Store

Frequently Asked Questions About Avigilon H5AMH-AD-PEND1

What is the H5AMH-AD-PEND1?

It is the outdoor pendant mount adapter for the Avigilon H5A Multisensor camera.

What else do I need to build an H5A pendant?

One pendant mount, either the WLMT-1001 wall arm or the NPTA-1001 NPT adapter, and one dome cover, either the clear H5AMH-DO-COVR1 or the smoked H5AMH-DO-COVR1-SMOKE.

Is it included with the H5A pendant camera packages?

Yes. The DP1 multisensor packages, such as the 12C-H5A-4MH-DP1-B, ship with the pendant adapter and a clear dome cover.

Can I add IR to an H5A pendant?

Yes. The optional H4AMH-AD-IRIL1 IR illuminator ring works with the pendant and surface mount adapters and needs 60 W high-power PoE.

Is it used with other Avigilon cameras?

No. It is designed for the H5A Multisensor camera modules.
