Anchor Audio MegaVox 2 AnchorAir Horn PA, 4-Mic AnchorLink, MEGA2-XU4

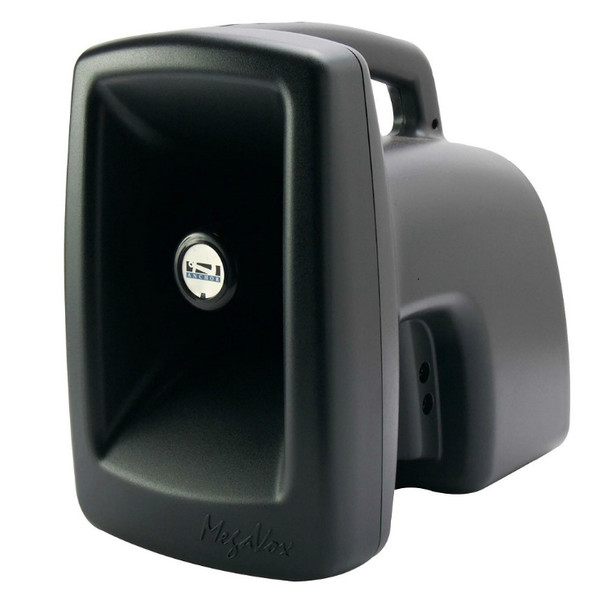

Anchor Audio MegaVox 2 MEGA2-XU4 Bluetooth Horn PA with AnchorAir and 4-Mic AnchorLink

The Anchor Audio MegaVox 2 MEGA2-XU4 is a battery-powered horn PA system built to project voice outdoors: a high-efficiency re-entrant horn driver delivers 119 dB at 1 m, and the built-in LiFePO4 battery gives 7+ hours of playtime. It streams audio over Bluetooth and has two wired mic inputs plus line in and line out, a built-in AnchorLink receiver for up to 4 wireless mics (sold separately), and a built-in AnchorAir transmitter that sends audio to AIR companion speakers without cables. Anchor rates it for about 1,000 people over an area of about 75 x 150 feet.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Anchor Audio MegaVox 2 MEGA2-XU4?

• Loud, clear voice: 119 dB at 1 m from a re-entrant horn driver
• Built-in LiFePO4 battery with 7+ hours of playtime and about 5 hours to recharge
• Bluetooth streaming for music and recorded announcements
• Two wired mic inputs, a line input and a line output
• Built-in AnchorLink receiver for up to 4 wireless mics on 1.9 GHz
• Built-in AnchorAir transmitter for unlimited AIR companion speakers on the same channel
• Speaker output for an unpowered wired companion speaker
• Built-in speaker stand socket and carry handle
• Only 13 lb, so one person can carry and set it up

Built to Project Voice Outdoors

The MegaVox 2 uses a high-efficiency re-entrant horn driver tuned for speech (400 Hz to 10 kHz). It reaches 119 dB at 1 m from a 20 W amplifier, and Anchor rates it for an area of about 75 x 150 ft. and crowds of about 1,000 people. A signal alert button on the control panel gets attention before an announcement.

All-Day Battery Power

A built-in 12 V LiFePO4 battery (5 Ah) gives 7+ hours of playtime and recharges fully in about 5 hours. An active fuel gauge on the panel shows the remaining charge.

AnchorLink Wireless Microphones

The built-in AnchorLink receiver works with up to 4 Anchor Audio WH-LINK handheld or WB-LINK belt pack mics (sold separately). AnchorLink runs on 1.9 GHz (1920-1930 MHz in the USA and Canada), with a range of 300+ ft. line of sight. Each mic runs on two AA batteries for 8-10 hours of continuous use.

AnchorAir Cable-Free Companion Speakers

The built-in AnchorAir transmitter sends audio on 902-928 MHz (100 selectable channels) to MegaVox 2 AIR companion speakers up to 300+ ft. away. There is no limit on the number of companions: set each one to the same channel. The ALB-9000 beltpack receiver also picks up the AnchorAir signal for assistive listening.

Inputs, Outputs and Expansion

Two wired mic inputs, a line input for a mixer or music player, a post-fader line output and a speaker output for an unpowered MegaVox 2 wired companion speaker cover most setups.

Typical Applications

• Coaches, cheer and marching band practice
• Playgrounds and school yards
• Crowd control and emergency response
• Outdoor ceremonies, auctions and drills
• Tours and outdoor events

Compatible Accessories

Compatible accessories for the Anchor Audio MegaVox 2 MEGA2-XU4. Linked items are available at Affinitech Store; contact us for the others:

• Anchor Audio SS-550 Heavy Duty Speaker Stand
• Anchor Audio NL-MEGA MegaVox Soft Cover
• Anchor Audio HC-ARMOR24-MV MegaVox Hard Case
• Anchor Audio CC-550 Soft Case for Two Speaker Stands
• Anchor Audio RC-2 AC Power Supply Charger
• Anchor Audio MIC-50 Coilcord Handheld Mic (1/4-inch plug)
• Anchor Audio MIC-90P Handheld Mic with 20 ft. Cable (1/4-inch plug)
• Anchor Audio WH-LINK AnchorLink Wireless Handheld Mic
• Anchor Audio WB-LINK AnchorLink Wireless Belt Pack Transmitter
• Anchor Audio CM-LINK Collar Mic for WB-LINK
• Anchor Audio LM-LINK Lapel Mic for WB-LINK
• Anchor Audio HBM-LINK Headband Mic for WB-LINK
• Anchor Audio EM-LINK UltraLite Mic for WB-LINK
• Anchor Audio CC-MIC Soft Bag for WH-LINK and WB-LINK
• Anchor Audio ALB-9000 AnchorAir Beltpack Receiver
• Anchor Audio SC-50 Companion Speaker Cable (50 ft.) for the MEGA2-COMP

Related Products

Extend coverage with a matching MegaVox 2 companion speaker:

• Anchor Audio MegaVox 2 MEGA2-AIR AIR Wireless Companion Speaker
• Anchor Audio MegaVox 2 MEGA2-COMP Wired Companion Speaker

Compare Anchor Audio MegaVox 2 Models

Explore More

• Anchor Audio MegaVox PA systems
• Portable sound systems
• Public address systems
• Speakers
• Anchor Audio accessories
• Microphones
• All Anchor Audio products

Frequently Asked Questions About the Anchor Audio MegaVox 2 MEGA2-XU4

How long does the MegaVox 2 MEGA2-XU4 battery last?

Anchor rates the built-in 12 V LiFePO4 battery (5 Ah) for 7+ hours of playtime. A full recharge takes about 5 hours.

How loud is the MegaVox 2?

It is rated at 119 dB at 1 m with 20 W AC/DC of power, and Anchor rates it for about 1,000 people over an area of about 75 x 150 feet.

Does the MegaVox 2 MEGA2-XU4 have Bluetooth?

Yes. Bluetooth audio streaming is built in.

Can I connect wired microphones?

Yes. The MegaVox 2 has two wired mic inputs, a line input and a line output.

How many wireless mics does the MEGA2-XU4 support?

Up to 4 AnchorLink wireless mics, such as the WH-LINK handheld or WB-LINK belt pack. Mics are sold separately.

What frequency does AnchorLink use?

AnchorLink runs on 1.9 GHz (1920-1930 MHz in the USA and Canada) with a range of 300+ ft. line of sight.

What does the AnchorAir transmitter do?

It sends audio cable-free on 902-928 MHz (100 channels) to MegaVox 2 AIR companion speakers up to 300+ ft. away. Any number of companions can share one channel.

Which wired companion speaker works with it?

The MegaVox 2 MEGA2-COMP, connected to the speaker output with the SC-50 cable.

How much does the MegaVox 2 weigh?

The unit weighs 13 lb and measures 14 x 8.5 x 13 in. (H x W x D).

Can it be mounted on a speaker stand?

Yes. It has a built-in speaker stand socket. Anchor pairs it with the SS-550 heavy duty speaker stand.
