Anchor Audio AN-1000X+ Wireless-Mic Speaker Monitor, AN-1000XU2+

Anchor Audio AN-1000XU2+ Speaker Monitor with Built-in Wireless Mic Receiver

The Anchor Audio AN-1000XU2+ is an AC-powered speaker monitor with a 50 W amplifier, a 4.5-inch woofer and a 10 mm dome tweeter, rated at 107 dB at 1 m for audiences of about 250 people. It takes a wired mic on its balanced XLR input, has line inputs for a computer, projector or music player, and mounts on a stand, a wall or ceiling bracket, or sits on a shelf. The AN-1000XU2+ adds a built-in AnchorLink dual receiver for up to 2 wireless mics (sold separately).

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Anchor Audio AN-1000XU2+?

• 50 W amplifier and 107 dB at 1 m for clear speech
• Built-in AnchorLink receiver for up to 2 wireless mics on 1.9 GHz
• Two-way design (4.5-inch woofer, 10 mm dome tweeter) that also handles music
• Balanced XLR mic/line input with switchable phantom power
• Line inputs for a computer, projector or media player
• Line output to daisy chain more speakers
• Mounts on the SS-250 stand, SB-3BK+ ceiling bracket or SB-360BK+ wall mount
• Compact and light at 6.5 lb

Clear Speech for Rooms and Small Crowds

The AN-1000X+ puts out 107 dB at 1 m from a 50 W amplifier through a 4.5-inch woofer and 10 mm dome tweeter. Anchor rates it for crowds of about 250 people, and volume, bass and treble controls let you tune it for voice or music.

Flexible Inputs

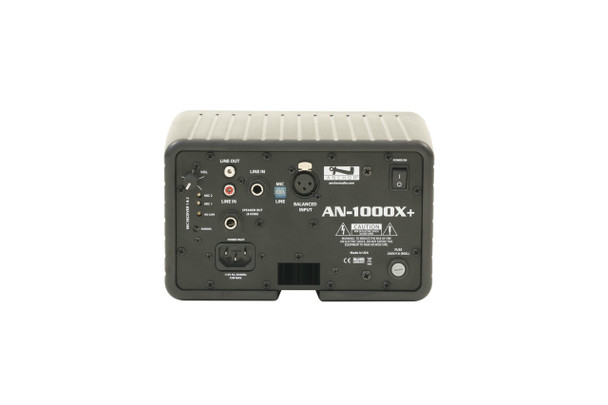

A balanced female XLR input takes a microphone or line source, with switchable phantom power for condenser mics. Hi-Z line inputs connect a laptop, projector or music player, and a line output feeds additional speakers.

AnchorLink Wireless Microphones

The AN-1000XU2+ has a built-in AnchorLink dual receiver on 1.9 GHz for up to two WH-LINK handheld or WB-LINK belt pack mics (sold separately). Each mic runs on two AA batteries for 8-10 hours of continuous use.

Mount It Anywhere

Use the SS-250 speaker stand, the SB-3BK+ 40-degree tilt ceiling bracket or the SB-360BK+ 360-degree swivel wall mount, or set it on a shelf or table. It runs on AC power through the PC-2 power cord; it has no battery.

Typical Applications

• Classrooms and lecture rooms
• Presentations and training rooms
• Meeting rooms and boardrooms
• Trade show booths
• Houses of worship and small venues

Compatible Accessories

Compatible accessories for the Anchor Audio AN-1000XU2+, available at Affinitech Store:

• Anchor Audio SS-250 Speaker Stand
• Anchor Audio SB-3BK+ 40-Degree Tilt Ceiling Bracket
• Anchor Audio SB-360BK+ 360-Degree Swivel Wall Mount
• Anchor Audio PC-2 Power Cord
• Anchor Audio CC-100 Carrying Bag
• Anchor Audio CC-100XL Large Carrying Bag
• Anchor Audio MIC-90 Handheld Mic with 20 ft. Cable (XLR)
• Anchor Audio MIC-90P Handheld Mic with 20 ft. Cable (1/4-inch plug)
• Anchor Audio WH-LINK AnchorLink Wireless Handheld Mic
• Anchor Audio WB-LINK AnchorLink Wireless Belt Pack Transmitter
• Anchor Audio CM-LINK Collar Mic for WB-LINK
• Anchor Audio LM-LINK Lapel Mic for WB-LINK
• Anchor Audio HBM-LINK Headband Mic for WB-LINK
• Anchor Audio EM-LINK UltraLite Mic for WB-LINK
• Anchor Audio CC-MIC Soft Bag for WH-LINK and WB-LINK

Compare Anchor Audio AN-1000X+ Models

Explore More

• Anchor Audio AN-1000X+ speaker monitors
• Speakers
• Public address systems
• Anchor Audio accessories
• Microphones
• All Anchor Audio products

Frequently Asked Questions About the Anchor Audio AN-1000XU2+

Is the AN-1000XU2+ battery powered?

No. It runs on AC power only, through the PC-2 power cord.

How loud is the AN-1000X+?

It is rated at 107 dB at 1 m from a 50 W amplifier, and Anchor rates it for crowds of about 250 people.

What speakers does it use?

A 4.5-inch woofer and a 10 mm dome tweeter.

What can I connect to it?

A wired mic or line source on the balanced female XLR input (switchable phantom power), and a computer, projector or music player on the line inputs. A line output feeds more speakers.

How many wireless mics does the AN-1000XU2+ support?

Up to 2 AnchorLink wireless mics, such as the WH-LINK handheld or WB-LINK belt pack. Mics are sold separately.

What frequency do the wireless mics use?

AnchorLink runs on 1.9 GHz.

How do I mount the AN-1000XU2+?

On the SS-250 speaker stand, the SB-3BK+ ceiling bracket or the SB-360BK+ wall mount, or set it on a shelf or table.

How much does it weigh?

About 6.5 lb, and it measures 9 x 8 x 5.5 in. (H x W x D).

Which wired microphone works with it?

Anchor lists the MIC-90 handheld mic with XLR plug, and pairs the AN-1000X+ with the MIC-90P in its wired system.

Is there a carrying bag?

Yes. The CC-100 and the larger CC-100XL carrying bags fit the AN-1000X+.
