Anchor Audio AN-1000X+ 50W Powered Speaker Monitor

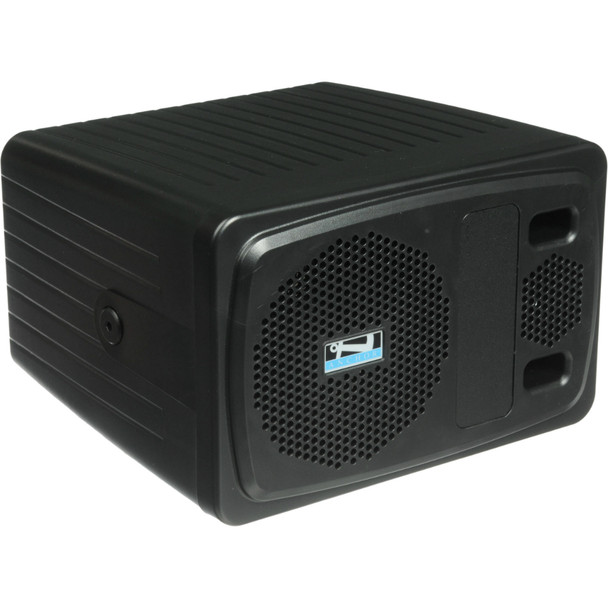

Anchor Audio AN-1000X+ Powered Speaker Monitor

The Anchor Audio AN-1000X+ is an AC-powered speaker monitor with a 50 W amplifier, a 4.5-inch woofer and a 10 mm dome tweeter, rated at 107 dB at 1 m for audiences of about 250 people. It takes a wired mic on its balanced XLR input, has line inputs for a computer, projector or music player, and mounts on a stand, a wall or ceiling bracket, or sits on a shelf. For wireless mics, choose the AN-1000XU2+ with a built-in AnchorLink receiver.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Anchor Audio AN-1000X+?

• 50 W amplifier and 107 dB at 1 m for clear speech
• Two-way design (4.5-inch woofer, 10 mm dome tweeter) that also handles music
• Balanced XLR mic/line input with switchable phantom power
• Line inputs for a computer, projector or media player
• Line output to daisy chain more speakers
• Mounts on the SS-250 stand, SB-3BK+ ceiling bracket or SB-360BK+ wall mount
• Compact and light at 6.5 lb

Clear Speech for Rooms and Small Crowds

The AN-1000X+ puts out 107 dB at 1 m from a 50 W amplifier through a 4.5-inch woofer and 10 mm dome tweeter. Anchor rates it for crowds of about 250 people, and volume, bass and treble controls let you tune it for voice or music.

Flexible Inputs

A balanced female XLR input takes a microphone or line source, with switchable phantom power for condenser mics. Hi-Z line inputs connect a laptop, projector or music player, and a line output feeds additional speakers.

Mount It Anywhere

Use the SS-250 speaker stand, the SB-3BK+ 40-degree tilt ceiling bracket or the SB-360BK+ 360-degree swivel wall mount, or set it on a shelf or table. It runs on AC power through the PC-2 power cord; it has no battery.

Typical Applications

• Classrooms and lecture rooms
• Presentations and training rooms
• Meeting rooms and boardrooms
• Trade show booths
• Houses of worship and small venues

Compatible Accessories

Compatible accessories for the Anchor Audio AN-1000X+, available at Affinitech Store:

• Anchor Audio SS-250 Speaker Stand
• Anchor Audio SB-3BK+ 40-Degree Tilt Ceiling Bracket
• Anchor Audio SB-360BK+ 360-Degree Swivel Wall Mount
• Anchor Audio PC-2 Power Cord
• Anchor Audio CC-100 Carrying Bag
• Anchor Audio CC-100XL Large Carrying Bag
• Anchor Audio MIC-90 Handheld Mic with 20 ft. Cable (XLR)
• Anchor Audio MIC-90P Handheld Mic with 20 ft. Cable (1/4-inch plug)

Compare Anchor Audio AN-1000X+ Models

Explore More

• Anchor Audio AN-1000X+ speaker monitors
• Speakers
• Public address systems
• Anchor Audio accessories
• All Anchor Audio products

Frequently Asked Questions About the Anchor Audio AN-1000X+

Is the AN-1000X+ battery powered?

No. It runs on AC power only, through the PC-2 power cord.

How loud is the AN-1000X+?

It is rated at 107 dB at 1 m from a 50 W amplifier, and Anchor rates it for crowds of about 250 people.

What speakers does it use?

A 4.5-inch woofer and a 10 mm dome tweeter.

What can I connect to it?

A wired mic or line source on the balanced female XLR input (switchable phantom power), and a computer, projector or music player on the line inputs. A line output feeds more speakers.

Does the AN-1000X+ support wireless mics?

Not on its own. The AN-1000XU2+ version has a built-in AnchorLink receiver for up to 2 wireless mics.

How do I mount the AN-1000X+?

On the SS-250 speaker stand, the SB-3BK+ ceiling bracket or the SB-360BK+ wall mount, or set it on a shelf or table.

How much does it weigh?

About 6.5 lb, and it measures 9 x 8 x 5.5 in. (H x W x D).

Which wired microphone works with it?

Anchor lists the MIC-90 handheld mic with XLR plug, and pairs the AN-1000X+ with the MIC-90P in its wired system.

Is there a carrying bag?

Yes. The CC-100 and the larger CC-100XL carrying bags fit the AN-1000X+.
