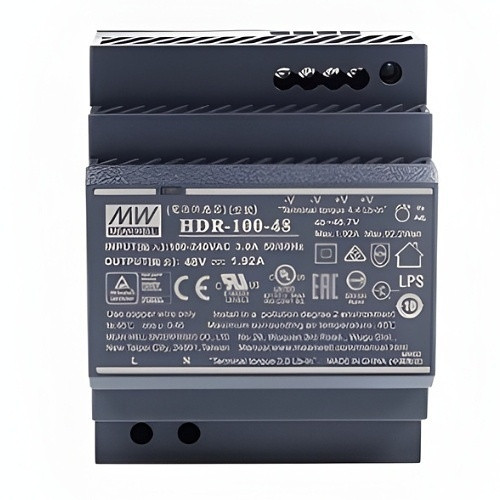

2N Clip 2wire-IP Switch DIN-Rail Power Supply 48 V, 03479-001
Description
Power Supply for the 2N Clip 2wire-IP Switch
This 48 V DIN-rail power supply is the external power source 2N recommends for the 2N Clip 2wire-IP Switch. The switch feeds its six two-wire ports from an outside 48 V DC supply, and every switch needs its own dedicated one. The supply is built for a switchboard: it clips on a DIN rail, cools passively without a fan and has an LED showing that power is on.
Key Specifications
| Part number | 03479-001 |
| Type | DIN-rail power supply |
| Input | 85-264 V AC (2N); Axis product data lists 100-240 V AC at 3 A |
| Output | 48 V DC, 1.92 A |
| Rated power | 92.2 W (Axis product data) |
| Mounting | DIN rail, 4 positions in the breaker box |
| Cooling | Passive, free-air convection |
| Dimensions (W x H x D) | 2.76 x 3.54 x 2.30 in |
| Weight | 0.60 lb |
| Operating temperature | -22 to 158 °F |
Full specifications are listed in the Detailed Specifications tab.
Installation Notes
2N counts nine DIN-rail positions for the switch and four for this supply in the circuit breaker box, so plan the switchboard space for both. One supply goes with each switch; a second switch daisy-chained from the first still needs its own. Axis product data names the unit as a Mean Well HDR-100-48.
Compatible Products
2N recommends this supply for the following product, available at Affinitech Store:
Related Products
- 2N Clip 2wire-IP 4.3-Inch Video Indoor Station (03448-001)
- 2N Clip 2wire-IP Video Indoor Station with Induction Loop (03449-001)
Explore More
- Browse all Access Control products at Affinitech Store
- See Network Door Stations and Intercoms
Frequently Asked Questions About Power Supply for 2N Clip 2wire-IP Switch
What is this power supply for?
It powers the 2N Clip 2wire-IP Switch, which needs an external 48 V DC source.
What are its electrical ratings?
48 V DC output at 1.92 A. 2N gives an input of 85-264 V AC.
How is it mounted?
On a DIN rail inside an electrical switchboard, using 4 positions in the circuit breaker box.
Does it need a fan?
No. 2N states passive cooling by free-air convection.
Do I need one per switch?
Yes. 2N says each switch needs its own dedicated external power supply.
What temperature range does it work in?
-22 to 158 degrees Fahrenheit, according to 2N.
Does it power the indoor stations directly?
The indoor stations take power over the two-wire ports of the switch; this supply feeds the switch.
Detailed Specifications
Power Supply for 2N Clip 2wire-IP Switch Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | Power Supply for 2N Clip 2wire-IP Switch |
| Order number | 03479-001 |
| Type | DIN-rail power supply, 48 V DC |
| Electrical | |
| Input voltage (2N) | 85-264 V AC |
| Input (Axis product data) | 100-240 V AC, 3 A |
| Output | 48 V DC, 1.92 A |
| Rated power (Axis product data) | 92.2 W |
| Indicator | LED power-on |
| Mechanical and Environmental | |
| Mounting | DIN rail (4 positions in the breaker box) |
| Cooling | Passive, free-air convection |
| Dimensions (W x H x D) | 2.76 x 3.54 x 2.30 in |
| Weight | 0.60 lb |
| Operating temperature | -22 to 158 °F |
| Manufacturer type (Axis product data) | Mean Well HDR-100-48 |
| Compatibility | |
| Compatible product | 2N Clip 2wire-IP Switch (03450-001) |
| Shipping | |
| Shipping weight | 0.6 lb |
| Shipping dimensions (package, W x D x H) | 2.95 x 2.48 x 3.78 in |
| EAN / UPC | not listed |
