Hanwha Vision TNO-4040T VGA Thermal Bullet Camera
Description

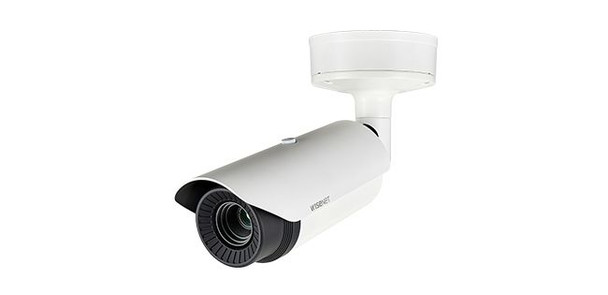

Hanwha Vision TNO-4040T – VGA Thermal Bullet
The Hanwha Vision TNO-4040T is a VGA thermal bullet camera built for perimeters, fence lines and total darkness. It offers an uncooled microbolometer (640x480) thermal detector, thermal sensitivity of ≤50mK and a 19 mm fixed lens with a 32° horizontal view. It is rated IP66, NEMA 4X and IK10.
This model is special order and is non-cancellable and non-returnable. Contact Affinitech Store to confirm availability and lead time.
Key Specifications
| Max video resolution | 640x480 (VGA) |
| Max frames per second | 30fps/25fps(60Hz/50Hz) |
| Thermal detector | Uncooled micro bolometer (640x480) |
| Thermal sensitivity (NETD) | ≤50mK |
| Focal length / lens | 19 mm |
| Horizontal field of view | 32° |
| Power | PoE(IEEE802.3af, Class3), 12VDC, 24VAC · Max. 10W, typical 8.6W |
| IP / vandal rating | IP66, NEMA 4X, IK10 |
| Operating temperature | -40°C~+60°C(-40°F~+140°F) |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Hanwha Vision TNO-4040T?
- VGA 640x480 video at up to 30fps/25fps
- 19 mm lens and a 32° horizontal view
- Uncooled micro bolometer (640x480) thermal detector, NETD ≤50mK
- IP66, NEMA 4X, IK10 rated housing
- Power: PoE(IEEE802.3af, Class3), 12VDC, 24VAC
Thermal Detection Day and Night
The TNO-4040T uses Uncooled micro bolometer (640x480) with NETD ≤50mK, so it detects people and vehicles by heat signature in total darkness, smoke and light fog.
Coverage and Resolution
A 19 mm lens covers a 32° horizontal field of view; resolution is up to 640x480 at 30fps/25fps(60Hz/50Hz).
Built-In Cybersecurity
Security features include IEEE 802.1X network authentication.
Installation and Integration
Key installation details: power input: PoE(IEEE802.3af, Class3), 12VDC, 24VAC (Max. 10W, typical 8.6W); operating temperature: -40°C~+60°C(-40°F~+140°F); ratings: IP66, NEMA 4X, IK10; edge storage: Max. 256GB x 1slot; compression: H.265/H.264: Main/Baseline/High, MJPEG.
Typical Applications
- Perimeters and fence lines
- Critical infrastructure
- Total-darkness areas
- Waterfronts and ports
Compare Hanwha Vision Thermal Bullet Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| Hanwha Vision TNO-L4040TR | VGA | VGA radiometric bullet camera | Perimeters, fence lines and total darkness |
| Hanwha Vision TNO-3050T | QVGA thermal | QVGA thermal bullet camera | Perimeters, fence lines and total darkness |
| Hanwha Vision TNO-4030T | VGA thermal | VGA thermal bullet camera | Perimeters, fence lines and total darkness |
| Hanwha Vision TNO-4040T (this camera) | VGA thermal | VGA thermal bullet camera | Perimeters, fence lines and total darkness |
| Hanwha Vision TNO-4050T | VGA thermal | VGA thermal bullet camera | Perimeters, fence lines and total darkness |
| Hanwha Vision TNO-C4040T | VGA thermal | VGA AI thermal bullet camera | Perimeters, fence lines and total darkness |
| Hanwha Vision TNO-C4042T | VGA thermal | VGA AI thermal bullet camera | Perimeters, fence lines and total darkness |
| Hanwha Vision TNO-C4050T | VGA thermal | VGA AI thermal bullet camera | Perimeters, fence lines and total darkness |
Explore More
- Browse Thermal Cameras at Affinitech Store
- Browse Bullet Cameras at Affinitech Store
- Browse Outdoor Cameras at Affinitech Store
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision TNO-4040T
What resolution does the Hanwha Vision TNO-4040T capture?
Up to 640x480 (VGA) at 30fps/25fps(60Hz/50Hz).
What lens does it use?
19 mm; horizontal field of view 32°.
What thermal detector does it use?
Uncooled micro bolometer (640x480), NETD ≤50mK.
Can it be installed outdoors?
Yes. It is rated IP66, NEMA 4X, IK10 and operates from -40°C~+60°C(-40°F~+140°F).
How is it powered?
PoE(IEEE802.3af, Class3), 12VDC, 24VAC (Max. 10W, typical 8.6W).
What video compression does it support?
H.265/H.264: Main/Baseline/High, MJPEG.
Does it support onboard storage?
Yes: Max. 256GB x 1slot.
Is it ONVIF compliant?
Yes, ONVIF Profile S, G, T.
What are the dimensions and weight of the Hanwha Vision TNO-4040T?
Dimensions: ø101.97x401.8 mm (ø4.01x15.82 in). Weight: 7 lb.
Detailed Specifications
Hanwha Vision TNO-4040T Specifications
| Specification | Details |
|---|---|
| Video | |
| Imaging Device - Type | Uncooled micro bolometer (640x480) |
| Resolution | 640x480, 640x360, 320x240 |
| Max. Framerate - H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate - MJPEG | 30fps |
| Spectral Range | 8~14㎛ |
| NETD | ≤50mK |
| Pixel Size | 17㎛ |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle. |
| Lens | |
| Focal Length (mm) | 19 |
| Max Aperture Ratio (F number) - Wide | 1.0 |
| Angular Field of View - Horizontal | 32° |
| Angular Field of View - Vertical | 24.3° |
| Angular Field of View - Diagonal | 39.2° |
| iFoV | 0.895mRad |
| Min. Object Distance | 11m(36.09ft) |
| Focus Control | Fixed |
| Operational | |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Motion Detection - Quantity | 8ea |
| Motion Detection - Shape | 8point Polygonal zones |
| Privacy Masking - Quantity | 32ea |
| Privacy Masking - Shape | Polygonal zones |
| Privacy Masking - Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface - In/Out | Input 1ea, Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Color Pallettes | Whitehot, Blackhot, Rainbow, Sepia, Red, Iron |
| Analytics | |
| Analytics Events - Normal | Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Temperature change detection |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz |
| Smart Codec | Manual, WiseStreamⅡ |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming - Unicast | Up to 20 users |
| Streaming - Multicast | Support |
| Streaming - Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast) |
| Application Programming Interface - ONVIF | S, G, T |
| Application Programming Interface - Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Security | |
| User authentication | Digest authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Audit | Access / System / Event Log management |
| General | |
| Memory - RAM | 1GB |
| Memory - Flash | 256MB |
| Edge Storage - Micro SD/SDHC/SDXC | Max. 256GB x 1slot |
| Environmental & Electrical | |
| Operating Condition - Temperature | -40°C~+60°C(-40°F~+140°F) |
| Operating Condition - Humidity | 0~90% RH(non-condensing) |
| Storage Condition - Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition - Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC |
| Power Consumption - PoE | Max. 10W, typical 8.6W |
| Power Consumption - 12VDC | Max. 9W, typical 7.5W |
| Power Consumption - 24VAC | Max. 10.5W, typical 8.9W |
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions | ø101.97x401.8mm(4.01x15.82") |
| Product Weight | 3175g(7.01lb) |
| Certifications & Standards | |
| Environment | IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X |
