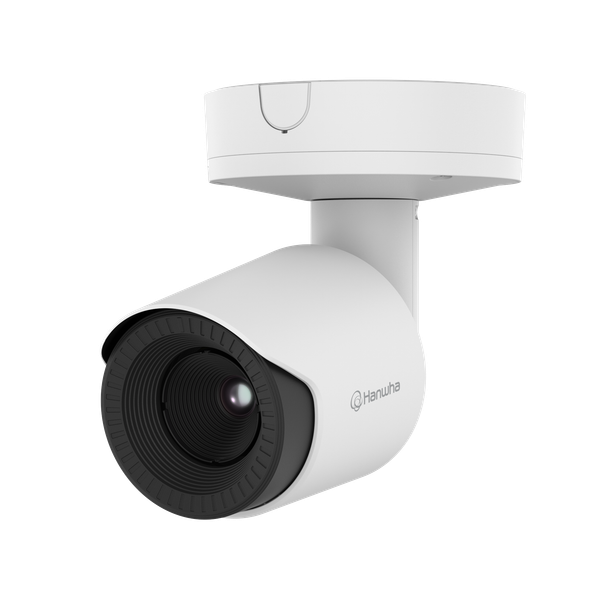

Hanwha Vision TNO-C4042T VGA AI Thermal Bullet Camera

Brand: Hanwha Vision America
SKU:
TNO-C4042T
Condition:
New
(No reviews yet) Write a Review
MSRP: $8,555.00
Price: $5,560.75
— You save $2,994.25

Description

Hanwha Vision TNO-C4042T – VGA AI Thermal Bullet

The Hanwha Vision TNO-C4042T is a VGA AI Thermal Bullet built for perimeters, fence lines and total darkness. Powered by WN8, Network AI Thermal Compact Bullet Camera, 640 x 480 (uncooled); ＜16mK (NETD), Max 1280 x 960 @ 8fps resolution support, 13mm fixed focal lens (HFoV: 49.1°), Triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support, Analytics events based on AI engine: Object detection (Person/Vehicle/Vessel), Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Analytics events: Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), PTZ handover, built-in SD card slot (1x1TB), integrated back box, IP66/IP67, NEMA4X, NEMA TS2 (2.2.7~2.2.9), MIL-STD-810H, IK10, PoE/12VDC, white color.

Key Specifications

Max video resolution 1280x960 (VGA)
Max frames per second 8fps
Thermal detector Uncooled micro bolometer (640x480)
Thermal sensitivity (NETD) ≤16mK@25°C, F1.0
Focal length / lens 13 mm
Horizontal field of view 49.1°
Onboard AI (object classes) Person, Vehicle, Vessel
Power PoE(IEEE802.3af, Class3), 12VDC · Max. 7.8W, typical 7.4W
IP / vandal rating IP66, IP67, NEMA 4X, IK10
Operating temperature -40°C~+60°C(-40°F~+140°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision TNO-C4042T?

  • VGA 1280x960 video at up to 8fps
  • 13 mm lens and a 49.1° horizontal view
  • Uncooled micro bolometer (640x480) thermal detector, NETD ≤16mK@25°C, F1.0
  • AI object classification: Person, Vehicle, Vessel
  • Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
  • IP66, IP67, NEMA 4X, IK10 rated housing
  • Power: PoE(IEEE802.3af, Class3), 12VDC

Thermal Detection Day and Night

The TNO-C4042T uses Uncooled micro bolometer (640x480) with NETD ≤16mK@25°C, F1.0, so it detects people and vehicles by heat signature in total darkness, smoke and light fog.

Coverage and Resolution

A 13 mm lens covers a 49.1° horizontal field of view; resolution is up to 1280x960 at 8fps.

AI Analytics on the Edge

The onboard AI engine classifies Person, Vehicle, Vessel; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Sound classification.

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645); IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE(IEEE802.3af, Class3), 12VDC (Max. 7.8W, typical 7.4W); operating temperature: -40°C~+60°C(-40°F~+140°F); ratings: IP66, IP67, NEMA 4X, IK10; edge storage: Max. 1TB x 1slot; compression: H.265/H.264: Main/Baseline/High, MJPEG.

Typical Applications

  • Perimeters and fence lines
  • Critical infrastructure
  • Total-darkness areas
  • Waterfronts and ports

Compatible Accessories

Compatible accessories for the Hanwha Vision TNO-C4042T. Linked items are available at Affinitech Store; contact us for the others:

Explore More

Frequently Asked Questions About Hanwha Vision TNO-C4042T

What resolution does the Hanwha Vision TNO-C4042T capture?

Up to 1280x960 (VGA) at 8fps.

What lens does it use?

13 mm; horizontal field of view 49.1°.

What thermal detector does it use?

Uncooled micro bolometer (640x480), NETD ≤16mK@25°C, F1.0.

Can it be installed outdoors?

Yes. It is rated IP66, IP67, NEMA 4X, IK10 and operates from -40°C~+60°C(-40°F~+140°F).

What can the AI analytics detect?

It classifies Person, Vehicle, Vessel; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Sound classification.

How is it powered?

PoE(IEEE802.3af, Class3), 12VDC (Max. 7.8W, typical 7.4W).

What video compression does it support?

H.265/H.264: Main/Baseline/High, MJPEG.

Does it support onboard storage?

Yes: Max. 1TB x 1slot.

What cybersecurity features are built in?

Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645).

Is it ONVIF compliant?

Yes, ONVIF Profile S, G, T, M.

View AllClose

Detailed Specifications

Hanwha Vision TNO-C4042T Specifications

SpecificationDetails
Video
Imaging Device - TypeUncooled micro bolometer (640x480)
Resolution1280x960, 640x480, 640x360, 320x240
Max. Framerate - H.265/H.2648fps
Max. Framerate - MJPEG8fps
Spectral Range8~14㎛
NETD≤16mK@25°C, F1.0
Pixel Size17㎛
Video OutUSB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.
Lens
Focal Length (mm)13
Max Aperture Ratio (F number) - Wide1.0
Angular Field of View - Horizontal49.1°
Angular Field of View - Vertical36.4°
Angular Field of View - Diagonal62.3°
iFoV1.31 mRad
Min. Object Distance5m(16.4ft)
Focus ControlFixed
Lens TypeAthermalized
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - Pan0°~350°
Pan / Tilt / Rotate Range - Tilt0°~90°
Pan / Tilt / Rotate Range - Rotate0°~350°
Operational
Digital Noise ReductionWiseNR
Motion Detection - Quantity8ea
Motion Detection - Shape8point Polygonal zones
Privacy Masking - Quantity32ea
Privacy Masking - Shape8point Polygonal zones
Privacy Masking - Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Video RotationFlip, Mirror, Hallway view(90°/270°)
Serial InterfaceRS-485
Alarm Interface - In/Out2 configurable I/O ports
Alarm Interface - OthersSupport extra alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Case tampering
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio InSelectable(mic in/line in)
Audio OutLine out
Color PallettesWhitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom
Analytics
Classified Object TypePerson, Vehicle, Vessel
ThumbnailBestShot
Analytics Events - Based on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Sound classification
Analytics Events - NormalMotion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), Temperature change detection
Network
EthernetMetal shielded RJ-45(10/100/1000BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps)
Smart CodecWiseStream(Based on AI engine)
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR
Streaming - UnicastUp to 20 users
Streaming - MulticastSupport
Streaming - Multiple StreamingUp to 5 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
Application Programming Interface - ONVIFS, G, T, M
Application Programming Interface - OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP
Access ControlIP-based access control, MAC-based access control, Auto logout
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), Secure element
Supply Chain SecuritySBOM
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
SoC - TypeWisenet 8
Edge Storage - Micro SD/SDHC/SDXCMax. 1TB x 1slot
Edge Storage(OnCloud) - Micro SD/SDHC/SDXCMax. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating Condition - Temperature-40°C~+60°C(-40°F~+140°F)
Operating Condition - Humidity0~95% RH(non-condensing)
Operating Condition - Others+74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7)
Storage Condition - Temperature-50°C~+60°C(-58°F~+140°F)
Storage Condition - Humidity0~95% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power Consumption - PoEMax. 7.8W, typical 7.4W
Power Consumption - 12VDCMax. 8.1W, typical 7.8W
Mechanical
ColorWhite
MaterialAluminum, PC(Polycarbonate)
RAL CodeRAL9003
Product Dimensionsø107.3 x 275mm(ø4.22/10.83")
Product Weight2000g(4.4 lb)
Compatible Conduit HoleSupport conduit compatibility via optional adaptor
Compatible Gang BoxSingle, Double, 4" Octagon, Square
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A, CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, IC Regulation ICES-003 Issue 7 Class A, FCC - IC Regulation ICES 003 Issue 7, RCM - EN IEC 63000:2018 Class A, VCCI - EN IEC 63000:2018 Class A
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1
EnvironmentIEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 505.7, MIL-STD-810H 506.6, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 510.7, MIL-STD-810H 514.8, MIL-STD-810H 516.8, MIL-STD-810H 521.4
AI Detection Distance
Person(1.8m/5.9ft) - Wideup to 108m(354ft)
Vehicle(1.45m/4.8ft) - Wideup to 153m(502ft)
Vessel(2.4m/7.9ft from Waterline) - Wideup to 366m(1,200ft)
DRI (Johnson's Criteria)
Detection - Person(1.67PPM)420m(1,379ft)
Detection - Vehicle(0.65PPM)1,074m(3,524ft)
Recognition - Person(6.67PPM)105m(345ft)
Recognition - Vehicle(2.61PPM)269m(881ft)
Identification - Person(13.33PPM)53m(172ft)
Identification - Vehicle(5.22PPM)134m(441ft)
