Hanwha Techwin 2MP IR Bullet, LNO-6012R
Description
Hanwha Techwin LNO-6012R Overview

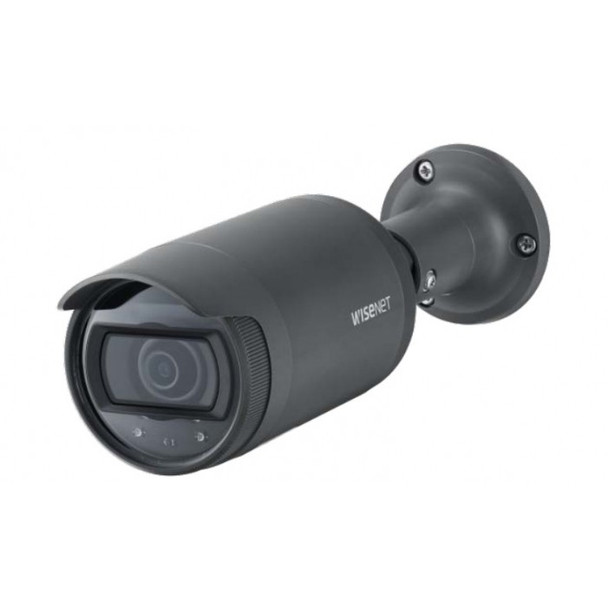

Watch your property with the dark-gray WiseNet LNO-6012R 2MP Outdoor Network Bullet Camera with Night Vision from Hanwha Techwin. Equipped with a 1/2.8" 2MP CMOS sensor and a 2.8mm fixed lens, this camera captures video at resolutions up to 1920 x 1080 at 30 fps in a 113.7 x 61.5° field of view. The camera has an automatic IR cut filter and IR LEDs for night vision with an effective range of up to 98'.
- 2 megapixel (1920 x 1080) resolution
- Built-in 2.8mm fixed lens
- 30fps@ all resolutions (H.264)
- H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Tampering, Motion detection
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 30m
- IP66 support
- Genetec Stratocast compatible
Built for outdoor use, the camera is housed in an IP66-rated weather-resistant enclosure. PoE technology simplifies setup by enabling you to run just one cable for both data and power, while a microSD card slot allows for edge storage. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
- Up to 2MP (1920 x 1080) resolution
- H.264 and MJPEG video compression for efficient storage and bandwidth use
- Up to 30 fps at all supported resolutions (H.264)
- 2.8mm fixed lens with f/2.0 aperture
- WiseStream II technology dynamically controls encoding, balancing quality and compression according to movement in the image
- Multiple streaming
- IR LEDs for night vision up to 98'
- Automatic IR cut filter for day/night functionality
- 120 dB wide dynamic range and SSDR technology
- Backlight compensation
- SSNR digital noise reduction
- Adjustable gain control
- Auto/manual white balance
- Intelligent video analytics including motion and tamper detection
- Privacy masking
- Built-in microSD/SDHC memory card slot for edge storage supports up to 32GB (microSD card available separately)
- 90°/270° hallway view for monitoring areas such as corridors, tunnels, and aisles
- Flip/mirror image
- PoE technology for easy, clutter-free installation
- Integrated Lens Distortion Correction (LDC) technology
- IP66 rated for outdoor use
DORI Range
L series outdoor bullet camera, 2MP @ 30fps,3mm fixed focal lens (102°), Double codec H.264/MJPEG, Wisestream II, 120dB WDR, IR LEDs, hallway view, SD card, IP66, PoE, White
Detailed Specifications
|
Video |
|
|
Imaging Device |
1/2.8" CMOS |
|
Resolution |
1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
|
Max. Framerate |
H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 2fps at 1920x1080, Max.. 3fps at 1280x960, 1280x720, Max. 10fps at other resolution |
|
NETD |
None |
|
Pixel Size |
None |
|
Min. Illumination |
Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on) |
|
Video Out |
None |
|
Video Transmission Distance |
None |
|
Lens |
|
|
Focal Length (Zoom Ratio) |
2.8mm fixed focal |
|
Max. Aperture Ratio |
F2.0 |
|
Angular Field of View |
H: 113.7° / V: 61.5° / D: 134.4° |
|
Min. Object Distance |
0.5m(1.64ft) |
|
Focus Control |
Fixed |
|
Lens Type |
None |
|
Mount Type |
None |
|
Optional Lens |
None |
|
Pan / Tilt / Rotate |
|
|
Pan / Tilt / Rotate Range |
None |
|
Pan Range |
None |
|
Pan Speed |
None |
|
Tilt Range |
None |
|
Tilt Speed |
None |
|
Rotate Range |
None |
|
Sequence |
None |
|
Preset Accuracy |
None |
|
Operational |
|
|
Camera Title |
Displayed up to 15 characters |
|
Direction Indicator |
None |
|
Day & Night |
Auto(ICR) |
|
Backlight Compensation |
BLC, WDR, SSDR |
|
Wide Dynamic Range |
120dB |
|
Digital Noise Reduction |
SSNR |
|
Digital Image Stabilization |
None |
|
Defog |
None |
|
Motion Detection |
4ea, rectangler zones |
|
Privacy Masking |
6ea, rectangular zones |
|
Gain Control |
Low / Middle / High |
|
White Balance |
ATW / AWC / Manual / Indoor / Outdoor |
|
LDC |
Support |
|
Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (2~1/12,000sec) |
|
Digital PTZ |
None |
|
Video Rotation |
Flip, Mirror, Hallway view(90˚/270˚) |
|
Analytics |
Motion detection, Tampering |
|
Business Intelligence |
None |
|
Serial Interface |
None |
|
Alarm I/O |
None |
|
Alarm Triggers |
Analytics |
|
Alarm Events |
File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers |
|
Audio Streaming |
None |
|
Audio In |
None |
|
Audio Out |
None |
|
IR Viewable Length |
30m(98.43ft) |
|
IR Illuminator (Optional) |
None |
|
Water Removal |
None |
|
Auto Tracking |
None |
|
Coaxial Protocol |
None |
|
Color Palettes |
None |
|
Radiometry |
|
|
Temperature Detect Range |
None |
|
Temperature Accuracy |
None |
|
Temperature Detection |
None |
|
Additional |
None |
|
Network |
|
|
Ethernet |
RJ-45(10/100BASE-T) |
|
Video Compression |
H.264: Main/Baseline/High, MJPEG |
|
Audio Compression |
None |
|
Smart Codec |
WiseStreamⅡ |
|
Video Quality Adjustment |
H.264: Target bitrate level control MJPEG: Quality level control |
|
Bitrate Control |
H.264: CBR or VBR MJPEG: VBR |
|
Streaming |
Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
|
Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour |
|
SIP support (VoIP, Peer-to-peer, SIP/PBX integration) |
None |
|
Security |
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
Application Programming Interface |
ONVIF Profile S/G/T SUNAPI(HTTP API) |
|
General |
|
|
Webpage Language |
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
|
Web Viewer |
None |
|
Edge Storage |
Micro SD/SDHC 1slot 32GB |
|
Memory |
512MB RAM, 256MB Flash |
|
Environmental & Electrical |
|
|
Operating Temperature / Humidity |
-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C(-4°F) |
|
Storage Temperature / Humidity |
-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH |
|
Certification |
IP66 |
|
Input Voltage |
PoE(IEEE802.3af, Class2) |
|
Power Consumption |
Max 6.4W, Typical 5.0W |
|
Mechanical |
|
|
Color / Material |
Dark grey / Plastic |
|
RAL Code |
None |
|
Product Dimensions / Weight |
Ø78.0x262.0mm(Ø3.07x10.31”), 390g(0.86lb) |
|
Compatible Conduit hole / Gangbox |
None |
|
Hanging Mount (Dome) |
None |
|
Skin Cover |
None |
|
Skin Cover (Dome) |
None |
|
Weather Cap (Dome) |
None |
|
Power Module |
None |
|
Backbox |
None |
|
DORI (EN62676-4 standard) |
|
|
Detect (25PPM/ 8PPF) |
25.1m(82.28ft) |
|
Observe (63PPM/ 19PPF) |
10.0m(32.91ft) |
|
Recognize (125PPM/ 38PPF) |
5.0m(16.46ft) |
|
Identify (250PPM/ 76PPF) |
2.5m(8.23ft) |
|
LPR/ANPR/MMCR |
|
|
Speed Description |
None |
|
Speed limit |
None |
|
Min. Forward Distance |
None |
|
Max. Forward Distance |
None |
|
Max. Horizontal Angle |
None |
|
Max. Vertical Angle |
None |
|
Horizontal Offset |
None |
|
Camera Height |
None |
|
Lane Coverage |
None |
|
Vehicle Recognition |
None |
|
Available Countries |
None |
|
Wisenet Road AI LPR/ANPR/MMCR |
|
|
Solution |
None |
|
Speed Description |
None |
|
Lane Coverage |
None |
|
Speed limit |
None |
|
Min. Forward Distance |
None |
|
Max. Forward Distance |
None |
|
Max. Horizontal Angle |
None |
|
Max. Vertical Angle |
None |
|
Horizontal Offset |
None |
|
Camera Height |
None |
|
Vehicle Recognition |
None |
|
Available Countries |
None |
