Anchor Audio WB-8000 UHF 540-570 MHz Wireless Belt Pack Transmitter
Description

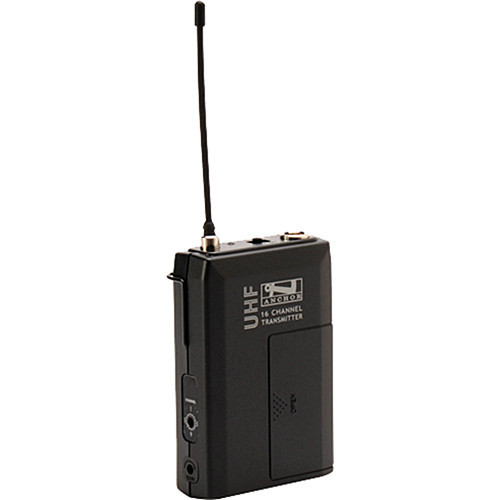

Anchor Audio WB-8000 UHF Wireless Belt Pack Transmitter
The Anchor Audio WB-8000 is a 16-channel UHF wireless belt pack transmitter for Anchor Audio 8000 and F1+ series systems. It operates in the 540 to 570 MHz range with a 150 ft. wireless range, takes hands-free mic elements through a TA4F connector and runs on two AA batteries.
Key Specifications
| Part number | WB-8000 |
| Type | UHF wireless belt pack transmitter |
| Frequency range | 540 to 570 MHz |
| Channels | 16, user-selectable |
| Wireless range | 150 ft. |
| Input connector | TA4F |
| Power | Two AA batteries |
| Battery life | Approximately 6 to 8 hours with fresh batteries |
| Compatible with | Anchor Audio 8000 and F1+ series |
Full specifications are listed in the Detailed Specifications tab.
Compatible Accessories
Compatible accessories for the Anchor Audio WB-8000. Linked items are available at Affinitech Store; contact us for the others:
- Anchor Audio 6000-14P Cable Adapter (TA4F to 1/4-inch)
- Anchor Audio 6000-18P Cable Adapter (TA4F to 3.5 mm Mono)
- Anchor Audio 6000-18PS Cable Adapter (TA4F to 3.5 mm Stereo)
- Anchor Audio 6000-XLR Cable Adapter (TA4F to XLR)
- Anchor Audio HBM-TA4F Headband Mic
- Anchor Audio CM-60 Collar Mic
- Anchor Audio EM-TA4F UltraLite Mic
- Anchor Audio LM-60 Lapel Mic
The 6000-series cable adapters connect mics and sources without a TA4F connector.
Related Products
- Anchor Audio WH-8000 UHF Wireless Handheld Mic
- Anchor Audio WB-LINK AnchorLink Wireless Belt Pack Transmitter
- Anchor Audio 6000-14P Cable Adapter (TA4F to 1/4-inch)
- Anchor Audio 6000-XLR Cable Adapter (TA4F to XLR)
Explore More
Frequently Asked Questions About Anchor Audio WB-8000
Which systems work with the WB-8000?
The WB-8000 is for use with Anchor Audio 8000 and F1+ series systems.
What mics plug into the WB-8000?
TA4F mic elements: the HBM-TA4F headband, CM-60 collar, EM-TA4F UltraLite and LM-60 lapel mics. For other connectors, use the 6000-18PS, 6000-18P, 6000-14P or 6000-XLR cable adapters.
What frequency does the WB-8000 use?
It operates in the 540 to 570 MHz UHF range with 16 user-selectable channels and a 150 ft. wireless range.
What batteries does the WB-8000 use?
Two AA batteries, for approximately 6 to 8 hours of use with fresh batteries.
Does the WB-8000 work with AnchorLink speakers?
No. AnchorLink systems use the 1.9 GHz WB-LINK belt pack. The WB-8000 is for 8000 and F1+ series systems.
Detailed Specifications
Anchor Audio WB-8000 Specifications
| Specification | Details |
|---|---|
| Product | |
| Brand | Anchor Audio |
| Model | WB-8000 |
| Product type | UHF wireless belt pack transmitter |
| Series | 8000 series |
| Key Specifications | |
| Frequency range | 540 to 570 MHz (UHF) |
| Channels | 16, user-selectable |
| Wireless range | 150 ft. |
| Input connector | TA4F |
| Power | Two AA batteries |
| Battery life | Approximately 6 to 8 hours with fresh batteries |
| Compatibility | |
| Works with | Anchor Audio 8000 and F1+ series systems |
| Mic elements | HBM-TA4F, CM-60, EM-TA4F, LM-60 |
| Cable adapters | 6000-18PS (TA4F to 3.5 mm stereo), 6000-18P (TA4F to 3.5 mm mono), 6000-14P (TA4F to 1/4-inch), 6000-XLR (TA4F to XLR) |
| Included | |
| In the box | WB-8000 belt pack transmitter (mic element sold separately) |
| Shipping | |
| Shipping weight | 2 lb |
| Package dimensions | 8 x 8 x 8 in. (W x H x D) |
