Anchor Audio WB-9000 Assistive Listening Belt Pack Transmitter
Description
Anchor Audio WB-9000 Wireless Belt Pack Transmitter
The Anchor Audio WB-9000 is the wireless belt pack transmitter for the Anchor Audio Assistive Listening 9000 series. It clips on the presenter, takes a headband or lapel mic through its TA4F input and transmits to ALB-9000 belt pack receivers on 100 UHF channels in the 902-928 MHz band. Two AA batteries run it for approximately 6 to 8 hours. It is the transmitter in the TOUR-9000 tour guide package.
Key Specifications
| Specification | Details |
|---|---|
| Model | WB-9000 |
| Type | Wireless belt pack transmitter |
| Frequency band | UHF 902 to 928 MHz |
| Channels | 100 channel UHF diversity |
| RF output power | 10 mW |
| Mic input | TA4F (mini XLR) |
| Compatible mics | Anchor Audio HBM-TA4F, LM-60 |
| Power | Two AA batteries |
| Battery life | About 6 to 8 hours |
| Dimensions | 4 x 2.5 x 1 in. |
| Weight | 0.5 lb (0.23 kg) |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Anchor Audio WB-9000?
- Hands-free transmitter for guides and presenters
- TA4F input for the Anchor Audio HBM-TA4F headband or LM-60 lapel mic
- 100 channel UHF diversity in the 902-928 MHz band
- Transmits to any number of ALB-9000 receivers
- Runs on two AA batteries for approximately 6 to 8 hours
- Lightweight 0.5 lb belt pack
Mobile Presenter Transmitter
Plug a microphone element into the TA4F (mini XLR) input, clip the WB-9000 on, and speak. Every ALB-9000 receiver on the same channel hears the presenter, which makes it ideal for tours and walking presentations.
Wireless Specifications
The WB-9000 is PLL synthesized with FM mono modulation and 10 mW RF output power, with THD under 0.5% at 1 kHz.
Part of the TOUR-9000
The TOUR-9000 package pairs one WB-9000 and an HBM-TA4F headband mic with six ALB-9000 receivers and in-ear headphones.
Typical Applications
- Factory and plant tours
- Campus and museum tours
- Walking presentations and training
- Spare transmitter for TOUR-9000 systems
Compatible Accessories
Compatible products for the Anchor Audio WB-9000. Linked items are available at Affinitech Store; contact us for the others:
- Anchor Audio ALB-9000 Belt Pack Receiver
- Anchor Audio TOUR-9000 Tour Guide System
- Anchor Audio HBM-TA4F Headband Microphone
- Anchor Audio LM-60 Lapel Microphone (TA4F)
Compare Anchor Audio Assistive Listening Systems
| Model | Key spec | Type | Best for |
|---|---|---|---|
| Anchor Audio AL-9000 | ALT-9000 base station and 4 ALB-9000 receivers | Assistive listening package | Venues, meeting rooms and houses of worship |
| Anchor Audio TOUR-9000 | WB-9000 belt pack transmitter, headband mic and 6 ALB-9000 receivers | Tour guide package | Facility, plant and campus tours |
| Anchor Audio ALT-9000 | 902-928 MHz, two 1/4-inch/XLR combo inputs | Base station transmitter | Connecting to an existing sound system |
| Anchor Audio ALB-9000 | 902-928 MHz, 100 channels, 3.5 mm earphone output | Belt pack receiver | Adding listeners to any 9000 series system |
The WB-9000 is the transmitter in the TOUR-9000 package and works with every ALB-9000 receiver above.
Explore More
Frequently Asked Questions About the Anchor Audio WB-9000
What does the WB-9000 do?
It is a wireless belt pack transmitter for the Anchor Audio Assistive Listening 9000 series. It sends a presenter mic to ALB-9000 belt pack receivers.
Which microphones work with the WB-9000?
Microphones with a TA4F plug: Anchor Audio lists the HBM-TA4F headband mic and the LM-60.
Is a microphone included?
No. The WB-9000 is the transmitter only. The TOUR-9000 package includes the WB-9000 with an HBM-TA4F headband mic.
What frequency does it use?
UHF 902 to 928 MHz with 100 channels.
What batteries does it use?
Two AA batteries, which run the transmitter for approximately 6 to 8 hours with fresh batteries.
Which receivers can hear it?
The Anchor Audio ALB-9000 belt pack receiver.
What is the RF output power?
10 mW.
How big is the WB-9000?
It measures 4 x 2.5 x 1 in. and weighs 0.5 lb.
Detailed Specifications
Anchor Audio WB-9000 Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | WB-9000 |
| Type | Assistive listening wireless belt pack transmitter |
| Series | Assistive Listening 9000 |
| Key Specifications | |
| Frequency band | UHF 902 to 928 MHz |
| Channels | 100 channel UHF diversity |
| Oscillator | PLL synthesized |
| Modulation | FM, mono |
| RF output power | 10 mW |
| THD | Less than 0.5% at 1 kHz |
| Mic input | TA4F (mini XLR), for Anchor Audio HBM-TA4F or LM-60 |
| Antenna | 1/4-wave wire type |
| Power | Two 1.5 V AA alkaline batteries |
| Battery life | Approximately 6 to 8 hours with fresh batteries |
| Dimensions | 4 x 2.5 x 1 in. (10.2 x 6.4 x 2.5 cm) |
| Weight | 0.5 lb (0.23 kg) |
| Compatibility | |
| Receivers | ALB-9000 belt pack receiver |
| Microphones | HBM-TA4F headband mic, LM-60 (TA4F plug) |
| Systems | TOUR-9000 tour guide package |
| Shipping | |
| Shipping weight | 5 lb |
| Package dimensions | 12 x 12 x 12 in. (W x H x D) |
Related Products
Related Products
Anchor Audio ALT-9000 Assistive Listening Base Station Transmitter
Brand: Anchor Audio
Anchor Audio AL-9000 Assistive Listening System with 4 Receivers
Brand: Anchor Audio
Anchor Audio WB-LINK AnchorLink Wireless Belt Pack Transmitter
Brand: Anchor Audio
Anchor Audio ALB-9000 Assistive Listening Receiver, 902-928 MHz
Brand: Anchor Audio

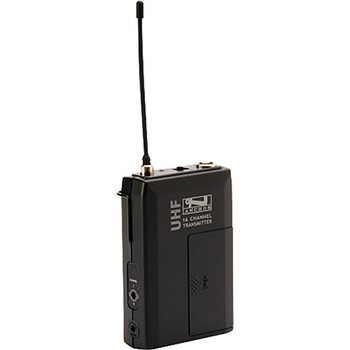

Anchor Audio WB-8000 UHF 540-570 MHz Wireless Belt Pack Transmitter
