AXIS TQ1828-VE PTZ Camera Safety Cabinet 120 V, 03546-001
Description
AXIS TQ1828-VE Outdoor Safety Cabinet 120 V for PTZ Cameras

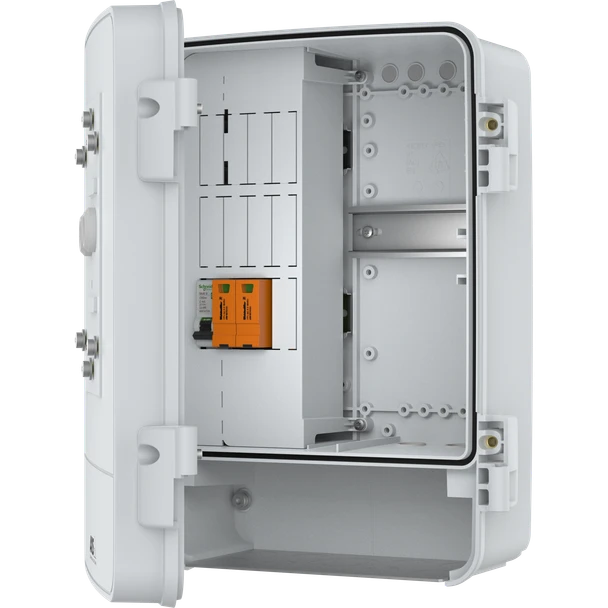

The AXIS TQ1828-VE Safety Cabinet is a rugged outdoor enclosure that protects surveillance equipment and its mains wiring. It is IP66-, NEMA 4X- and IK10-rated, built from white plastic with a stainless-steel mounting plate, and it ships pre-assembled with Electrical Safety Kit A 120 V AC. This version is designed for use with selected Axis PTZ cameras.
Key Specifications
| Part number | 03546-001 |
| Type | Outdoor safety cabinet, 120 V version |
| Designed for | Selected AXIS PTZ cameras |
| Protection ratings | IP66, NEMA 4X, IK10 |
| Included | Electrical Safety Kit A 120 V AC |
| Casing and plate | Plastic casing, stainless-steel mounting plate |
| Color | White, NCS S 1002-B |
| Operating temperature | -40 °C to 85 °C (-40 °F to 185 °F), per datasheet |
| Weight | 3930 g (8.7 lb) |
| Effective projected area | 0.093 m2 (1.0 ft2) |
Full specifications are listed in the Detailed Specifications tab.
What Fits Inside
- Mains power equipment protected by the pre-assembled Electrical Safety Kit A 120 V AC (surge protector, MCB fuse and terminal block).
- Low-voltage units such as DIN-rail power supplies and system devices. Axis shows setups with an AXIS T8154 midspan and CP-D DIN power supplies (12 V 25 W or 24 V 100 W).
- Optional AXIS Door Switch A for intrusion detection and AXIS Cabinet Lock A.
- Optional mounting brackets for walls, poles or building corners are available from Axis.
Related Products
Related AXIS accessories, available at Affinitech Store:
- AXIS Cabinet Lock A
- AXIS Door Switch A
- AXIS TQ1807-VE Cabinet Door
- AXIS TQ1816-VE Cabinet Door
- AXIS Power Supply DIN CP-D 24/4.2 100 W
- AXIS T8154 60 W SFP PoE Midspan
- AXIS TQ1825-VE Outdoor Safety Cabinet 120 V
- AXIS TQ1826-VE Box Camera Safety Cabinet 120 V
- AXIS TQ1827-VE Dome Camera Safety Cabinet 120 V
Explore More
- Browse all Housings & Mounts at Affinitech Store
- See every Network Camera Accessory we carry
- Shop more AXIS products at Affinitech Store
Frequently Asked Questions About AXIS TQ1828-VE
What is the AXIS TQ1828-VE Safety Cabinet?
An outdoor enclosure that houses and protects surveillance equipment and mains wiring. It comes pre-assembled with Electrical Safety Kit A for 120 V AC.
How tough is it?
It is IP66-, NEMA 4X- and IK10-rated, and Axis says it complies with the 4M4 vibration standard.
What temperatures can it handle?
The Axis datasheet lists -40 °C to 85 °C. The Axis product page text says -40 °C to +75 °C, so use the lower figure if your design is close to the limit.
What is in the box?
The safety cabinet, the electrical safety kit, an installation guide and third-party documentation. The cabinet includes a stainless-steel mounting plate, pre-mounted cable gaskets, a DIN rail and door screws.
Which cameras is it for?
Axis says it is designed for use with selected Axis PTZ cameras and does not publish the list in the datasheet.
Is there a 230 V version?
Axis lists the cabinet in 120 V and 230 V variants. This part number is the 120 V version.
What is the warranty?
The Axis datasheet lists a 3-year warranty.
Detailed Specifications
AXIS TQ1828-VE Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | AXIS TQ1828-VE Safety Cabinet |
| Variant | AXIS TQ1828-VE Safety Cabinet 120 V |
| Part number | 03546-001 |
| Category | Housings & cabinets, media converters |
| Series | TQ |
| General | |
| Casing | IP66-, NEMA 4X- and IK10-rated plastic |
| Mounting plate | Stainless steel |
| Color | White, NCS S 1002-B |
| Designed for | Selected AXIS PTZ cameras |
| Included hardware | Stainless-steel mounting plate, pre-mounted cable gaskets, DIN rail, cabinet door screws |
| Vibration | Complies with the 4M4 vibration standard (Axis product page) |
| Operating Conditions | |
| Operating temperature | -40 °C to 85 °C (-40 °F to 185 °F) per datasheet; the Axis product page text says -40 °C to +75 °C |
| Operating humidity | 10-100% RH (non-condensing) |
| Storage temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Storage humidity | 5-95% RH (non-condensing) |
| Approvals | |
| Product markings | UL/cUL, CE |
| Supply chain | TAA compliant |
| Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368.1:2022 |
| Environment | IEC 60068-2-6, IEC 60068-2-27, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X |
| Dimensions and Weight | |
| Overall dimensions | See the dimension drawing in the Axis datasheet (no values given in text) |
| Effective projected area (EPA) | 0.093 m2 (1.0 ft2) |
| Weight | 3930 g (8.7 lb) |
| Box Content | |
| Contents | Safety cabinet, electrical safety kit, installation guide, third-party documentation |
| Electrical Safety Kit A 120 V AC | |
| Surge protector | Surge voltage category III; Type II and Type III (IEC 61643-11); mains voltage 120 V/240 V |
| Discharge current | In (8/20 µs) wire-PE 20 kA; Imax (8/20 µs) wire-PE 50 kA; type III 3 kA |
| Short-circuit current rating ISCCR | 50 kA |
| Protection level Up at IN (L/N-PE) | 1.25 kV or less |
| Combined pulse UOC | 6 kV |
| Max. continuous voltage Uc (AC) | 150 V |
| Temporary surge voltage UTOV | 229 V |
| Response time | 25 ns or less |
| Low voltage network | Single-phase, TN-S |
| MCB fuse breaking capacity | 3 kA Icu 415 V AC (EN/IEC 60947-2); 10 kA Icu 240 V AC (EN/IEC 60947-2); 14 kA AIR 240 V AC (UL 489) |
| MCB fuse tripping curve | C |
| Kit operating temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Kit weight | 263 g (0.6 lb) |
| Kit approvals | UL/cUL, CE, RCM, UKCA; TAA compliant |
| Optional Accessories | |
| Accessories | AXIS Cabinet Lock A, AXIS Door Switch A, AXIS TQ1807-VE Cabinet Door, AXIS TQ1816-VE Cabinet Door |
| Warranty | |
| Warranty | 3-year warranty (Axis datasheet) |
| Shipping | |
| Shipping weight | 10.34 lb |
| Shipping dimensions (W x D x H) | 13.19 x 15.16 x 7.09 in |
