AXIS TQ1825-VE Outdoor Safety Cabinet 120 V, 03540-001
Description
AXIS TQ1825-VE Outdoor Safety Cabinet 120 V
The AXIS TQ1825-VE Safety Cabinet is a rugged outdoor enclosure that protects surveillance equipment and its mains wiring. It is IP66-, NEMA 4X- and IK10-rated, built from white plastic with a stainless-steel mounting plate, and it ships pre-assembled with Electrical Safety Kit A 120 V AC. It is the general-purpose model of the TQ1825 to TQ1828 family, intended for system devices, power supplies and accessories rather than a camera. Replacement doors are available if you want to mount an Axis camera on the front.
Key Specifications
| Part number | 03540-001 |
| Type | Outdoor safety cabinet, 120 V version |
| Designed for | Peripheral equipment (power, fiber and system devices) |
| Protection ratings | IP66, NEMA 4X, IK10 |
| Included | Electrical Safety Kit A 120 V AC |
| Casing and plate | Plastic casing, stainless-steel mounting plate |
| Color | White, NCS S 1002-B |
| Operating temperature | -40 °C to 85 °C (-40 °F to 185 °F), per datasheet |
| Weight | 3930 g (8.7 lb) |
| Effective projected area | 0.093 m2 (1.0 ft2) |
Full specifications are listed in the Detailed Specifications tab.
What Fits Inside
- Mains power equipment protected by the pre-assembled Electrical Safety Kit A 120 V AC (surge protector, MCB fuse and terminal block).
- Low-voltage units such as DIN-rail power supplies and system devices. Axis shows setups with an AXIS T8154 midspan and CP-D DIN power supplies (12 V 25 W or 24 V 100 W).
- Optional AXIS Door Switch A for intrusion detection and AXIS Cabinet Lock A.
- Optional mounting brackets for walls, poles or building corners are available from Axis.
Related Products
Related AXIS accessories, available at Affinitech Store:
- AXIS Cabinet Lock A
- AXIS Door Switch A
- AXIS TQ1807-VE Cabinet Door
- AXIS TQ1816-VE Cabinet Door
- AXIS Power Supply DIN CP-D 24/4.2 100 W
- AXIS T8154 60 W SFP PoE Midspan
- AXIS TQ1826-VE Box Camera Safety Cabinet 120 V
- AXIS TQ1827-VE Dome Camera Safety Cabinet 120 V
- AXIS TQ1828-VE PTZ Camera Safety Cabinet 120 V
Explore More
- Browse all Housings & Mounts at Affinitech Store
- See every Network Camera Accessory we carry
- Shop more AXIS products at Affinitech Store
Frequently Asked Questions About AXIS TQ1825-VE
What is the AXIS TQ1825-VE Safety Cabinet?
An outdoor enclosure that houses and protects surveillance equipment and mains wiring. It comes pre-assembled with Electrical Safety Kit A for 120 V AC.
How tough is it?
It is IP66-, NEMA 4X- and IK10-rated, and Axis says it complies with the 4M4 vibration standard.
What temperatures can it handle?
The Axis datasheet lists -40 °C to 85 °C. The Axis product page text says -40 °C to +75 °C, so use the lower figure if your design is close to the limit.
What is in the box?
The safety cabinet, the electrical safety kit, an installation guide and third-party documentation. The cabinet includes a stainless-steel mounting plate, pre-mounted cable gaskets, a DIN rail and door screws.
Can I mount a camera on it?
Axis says there is a range of replacement doors, so you can swap the cabinet door to mount an Axis camera on the front. The optional doors listed by Axis are the TQ1807-VE and TQ1816-VE.
What is it designed for?
Peripheral equipment: fiber connectivity, separate power sources and system devices, for cities, industrial sites, airports, harbors and critical infrastructure.
Is there a 230 V version?
Axis lists the cabinet in 120 V and 230 V variants. This part number is the 120 V version.
What is the warranty?
The Axis datasheet lists a 3-year warranty.
Detailed Specifications
AXIS TQ1825-VE Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | AXIS TQ1825-VE Safety Cabinet |
| Variant | AXIS TQ1825-VE Safety Cabinet 120 V |
| Part number | 03540-001 |
| Category | Housings & cabinets, media converters |
| Series | TQ |
| General | |
| Casing | IP66-, NEMA 4X- and IK10-rated plastic |
| Mounting plate | Stainless steel |
| Color | White, NCS S 1002-B |
| Designed for | Peripheral equipment (power, fiber and system devices) |
| Included hardware | Stainless-steel mounting plate, pre-mounted cable gaskets, DIN rail, cabinet door screws |
| Vibration | Complies with the 4M4 vibration standard (Axis product page) |
| Operating Conditions | |
| Operating temperature | -40 °C to 85 °C (-40 °F to 185 °F) per datasheet; the Axis product page text says -40 °C to +75 °C |
| Operating humidity | 10-100% RH (non-condensing) |
| Storage temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Storage humidity | 5-95% RH (non-condensing) |
| Approvals | |
| Product markings | UL/cUL, CE |
| Supply chain | TAA compliant |
| Safety | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368.1:2022 |
| Environment | IEC 60068-2-6, IEC 60068-2-27, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X |
| Dimensions and Weight | |
| Overall dimensions | See the dimension drawing in the Axis datasheet (no values given in text) |
| Effective projected area (EPA) | 0.093 m2 (1.0 ft2) |
| Weight | 3930 g (8.7 lb) |
| Box Content | |
| Contents | Safety cabinet, electrical safety kit, installation guide, third-party documentation |
| Electrical Safety Kit A 120 V AC | |
| Surge protector | Surge voltage category III; Type II and Type III (IEC 61643-11); mains voltage 120 V/240 V |
| Discharge current | In (8/20 µs) wire-PE 20 kA; Imax (8/20 µs) wire-PE 50 kA; type III 3 kA |
| Short-circuit current rating ISCCR | 50 kA |
| Protection level Up at IN (L/N-PE) | 1.25 kV or less |
| Combined pulse UOC | 6 kV |
| Max. continuous voltage Uc (AC) | 150 V |
| Temporary surge voltage UTOV | 229 V |
| Response time | 25 ns or less |
| Low voltage network | Single-phase, TN-S |
| MCB fuse breaking capacity | 3 kA Icu 415 V AC (EN/IEC 60947-2); 10 kA Icu 240 V AC (EN/IEC 60947-2); 14 kA AIR 240 V AC (UL 489) |
| MCB fuse tripping curve | C |
| Kit operating temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Kit weight | 263 g (0.6 lb) |
| Kit approvals | UL/cUL, CE, RCM, UKCA; TAA compliant |
| Optional Accessories | |
| Accessories | AXIS Cabinet Lock A, AXIS Door Switch A, AXIS TQ1807-VE Cabinet Door, AXIS TQ1816-VE Cabinet Door |
| Warranty | |
| Warranty | 3-year warranty (Axis datasheet) |
| Shipping | |
| Shipping weight | 10.05 lb |
| Shipping dimensions (W x D x H) | 13.19 x 15.16 x 7.09 in |
Related Products
Related Products
AXIS TQ1828-VE PTZ Camera Safety Cabinet 120 V, 03546-001
Brand: AXIS Communications
AXIS TQ1827-VE Dome Camera Safety Cabinet 120 V, 03544-001
Brand: AXIS Communications
AXIS TQ1826-VE Box Camera Safety Cabinet 120 V, 03542-001
Brand: AXIS Communications

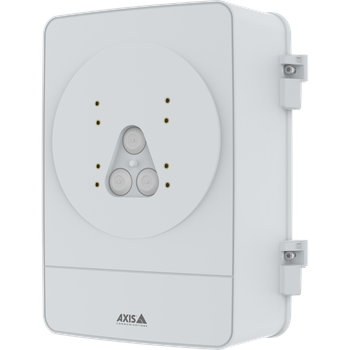

AXIS TQ1816-VE Cabinet Door for TQ1817-VE, 03086-001
