AXIS PT IR Illuminator Kit C 850 nm for Positioning Units, 5801-901
Description

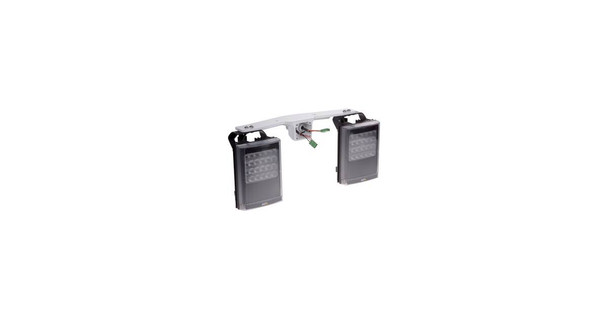

AXIS PT IR Illuminator Kit C 850 nm
The AXIS PT IR Illuminator Kit C is a pair of 850 nm IR LED illuminators with a metal mounting bracket and diverging lenses, built for AXIS T99A positioning units and positioning cameras. Without diverging lenses it lights scenes up to 500 m (1,640 ft) away, and the included lenses widen the beam for shorter ranges. The illuminators are IP66 rated, run on 12-24 V AC/DC and are the same kit used in the AXIS Q8685-LE PTZ Network Camera.
Key Specifications
| Part number | 5801-901 |
| Type | 850 nm semi-covert IR LED illuminator kit (one pair) |
| Maximum range | 500 m (1,640 ft) at 10 x 10 degrees, without diverging lens |
| Beam angles | 10 degrees; 35, 60 and 80 degrees included; 120 degrees optional |
| Power | 12-24 V AC/DC, 96 W maximum |
| Environment | Outdoor, IP66, -50 °C to 60 °C |
| Dimensions | 495 x 145 x 213 mm (19.5 x 5.7 x 8.4 in) |
| Weight | 4.4 kg (9.7 lb) |
| Control | Push buttons or remote control: power level, photocell, timer, telemetry link |
Full specifications are listed in the Detailed Specifications tab.
Beam Angles and Range
- 10 x 10 degrees (no lens): up to 500 m (1,640 ft)
- 35 x 10 degrees: up to 240 m (787 ft)
- 60 x 25 degrees: up to 135 m (443 ft)
- 80 x 30 degrees: up to 100 m (328 ft)
- 120 x 50 degrees (optional lens): up to 65 m (213 ft)
Compatible Products
Axis lists the kit for these products. Available at Affinitech Store:
- AXIS T99A10 24 V AC/DC Positioning Unit
- AXIS T99A12 24 V AC/DC Positioning Unit
- AXIS Q8685-LE 1080p 30x Outdoor IR PTZ Positioning Camera
- AXIS Q8752-E Mk II 35 mm 8.3 fps Bispectral PTZ Camera
- AXIS TQ1818-E Outdoor Pan-Tilt Positioning Unit
- AXIS T90B Remote Control
The datasheet names the AXIS Q8685-LE and T99A10; the Axis product page lists additional models and marks several of the older ones as discontinued.
Related Products
Related AXIS accessories, available at Affinitech Store:
Explore More
- See every Network Camera Accessory we carry
- Shop more AXIS products at Affinitech Store
Frequently Asked Questions About AXIS PT IR Illuminator Kit C
What is in the AXIS PT IR Illuminator Kit C?
One pair of 850 nm IR LED illuminators, one metal mounting bracket and three pairs of diverging lenses (35, 60 and 80 degrees).
How far does it illuminate?
Up to 500 m (1,640 ft) without diverging lenses; the diverging lenses shorten the range and widen the beam, down to 65 m with the optional 120 degree lens.
Is it weatherproof?
Yes. The illuminators are IP66 rated and operate from -50 °C to 60 °C.
What power does it need?
12-24 V AC/DC, up to 96 W at maximum light.
Which products does it fit?
The datasheet lists the AXIS Q8685-LE PTZ Network Camera and AXIS T99A10 Positioning Unit; the Axis product page also lists other positioning units and cameras.
How is it controlled?
Through integrated push buttons or a remote control, with power level, photocell sensitivity, telemetry link and timer settings.
Detailed Specifications
AXIS PT IR Illuminator Kit C Specifications
| Specification | Details |
|---|---|
| Product | |
| Model | AXIS PT IR Illuminator Kit C |
| Part number | 5801-901 |
| Type | 850 nm semi-covert |
| Supported Products | |
| Compatible products (datasheet) | AXIS Q8685-LE PTZ Network Camera; AXIS T99A10 Positioning Unit 24 V AC/DC |
| Illumination | |
| Angle without diverging lenses | 10 degrees |
| Angle with diverging lenses | 35, 60, 80 and 120 degrees |
| Distance, 10 x 10 degrees, no lens | 500 m (1,640 ft) |
| Distance, 35 x 10 degrees | 240 m (787 ft) |
| Distance, 60 x 25 degrees | 135 m (443 ft) |
| Distance, 80 x 30 degrees | 100 m (328 ft) |
| Distance, 120 x 50 degrees | 65 m (213 ft) |
| Power | |
| Input voltage | 12-24 V AC/DC |
| AC frequency | 50-60 Hz |
| Maximum light | 96 W |
| Standby mode | 0.30 W |
| Control | |
| Control | Via integrated push buttons or remote control: power level, photocell sensitivity, telemetry link for remote activation, timer |
| Indicators | Indicator LEDs |
| Materials | |
| Illuminators | Aluminum and polycarbonate (black) |
| Bracket | Aluminum (white) and stainless steel (black) |
| Environment | |
| Location | Outdoor |
| Environmental rating | IEC/EN 60529 IP66, RoHS, REACH, WEEE |
| Operating temperature, normal | -50 °C to 60 °C (-58 °F to 140 °F) |
| Operating temperature, maximum (intermittent) | Up to 65 °C (149 °F) |
| Cold start | -40 °C to 60 °C (-40 °F to 140 °F) |
| Over-temperature protection | Included |
| Humidity | 10-100% RH (condensing) |
| Storage temperature | -50 °C to 70 °C (-58 °F to 158 °F) |
| Approvals | |
| EMC | FCC Part 15 Subpart B Class A, ICES-003 Class A, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-6-1, EN 61000-6-2, EN 55024, EN 50130-4, AS/NZS CISPR 32 Class A, VCCI Class A, EAC, EN 61547, EN 55015 |
| Safety | IEC/EN 60598-1, IEC/EN 62471 (risk group 2) |
| Dimensions and Weight | |
| Dimensions | 495 x 145 x 213 mm (19.5 x 5.7 x 8.4 in) |
| Weight | 4.4 kg (9.7 lb) |
| Box Content | |
| Illuminators | One pair of 850 nm IR LED illuminators |
| Mounting bracket | Mounting bracket |
| Diverging lenses | Three pairs: 35, 60 and 80 degrees |
| Accessories | |
| Optional | AXIS T90B Remote Control; AXIS IR Diverging Lens C 120 degrees |
| Warranty | |
| Warranty | 3-year warranty per Axis datasheet |
| Shipping | |
| Shipping weight | 11.24 lb |
| Shipping dimensions (W x D x H) | 17.32 x 10.24 x 5.91 in |
