AXIS M4228-LVE 8MP Outdoor AI IR Dome

Description
Detailed Specifications

Description

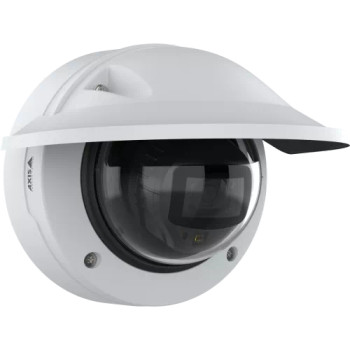

AXIS M4228-LVE Dome Camera – 8 MP (4K) Outdoor AI Varifocal Dome with OptimizedIR

The AXIS M4228-LVE is a compact 8 MP (4K) varifocal dome for outdoor or indoor use, with Lightfinder 2.0, Forensic WDR and OptimizedIR for detail in any light. It comes preinstalled with AXIS Object Analytics to detect, classify, track and count humans and vehicles, and AXIS Audio Analytics uses its acoustic sensor to detect screams, shouts, glass break, speech and coughing fits. Axis Edge Vault protects the device, and the IP66-, NEMA 4X- and IK10-rated casing operates from -30 °C to 50 °C (-22 °F to 122 °F).

Key Specifications

Max video resolution	3840x2160 (4K)
Max frames per second	25/30
Lens	Varifocal, 3.2&ndash
Horizontal field of view	100°–38°
Wide dynamic range	Forensic WDR, up to 120 dB
Lightfinder	Lightfinder 2.0
Min illumination (color)	0.14 lux
Built-in IR	OptimizedIR, 20 m (66 ft) or more
Onboard analytics	AXIS Object Analytics + AXIS Audio Analytics (deep learning processing unit)
PoE class	Class 3
IP rating	IP66, NEMA 4X
Vandal rating	IK10
Operating temperature	-30 to 50 °C

Full specifications are listed in the Detailed Specifications tab.

Why Choose the AXIS M4228-LVE?

8 MP (4K) resolution (3840x2160) at up to 25/30 fps
Varifocal lens (3.2&ndash) with remote zoom and focus, 100°–38° horizontal field of view
Lightfinder 2.0, Forensic WDR and OptimizedIR for day, night and mixed light
AXIS Object Analytics on a deep learning processing unit, plus AXIS Audio Analytics
Axis Edge Vault hardware-based cybersecurity
IP66, NEMA 4X and IK10 rated for outdoor use
Single-cable PoE (Class 3)

Sharp Detail Day and Night

Lightfinder 2.0 delivers color in near darkness, Forensic WDR (up to 120 dB depending on scene) handles scenes with bright and dark areas, and OptimizedIR lights the scene up to 20 m (66 ft) or more in complete darkness.

AI Video and Audio Analytics

AXIS Object Analytics detects, classifies and counts humans and vehicles with scenarios including line crossing, object in area, time in area, occupancy, crossline counting and tailgating detection. AXIS Audio Analytics detects screams, shouts, glass break, speech and coughing fits as well as changes in sound pressure level, and AXIS Image Health Analytics alerts you to a blocked, redirected, blurred or underexposed view.

Rugged and Easy to Install

The IP66-, NEMA 4X- and IK10-rated casing ships with a weathershield and operates from -30 °C to 50 °C (-22 °F to 122 °F). Remote zoom and focus speed up aiming, and the casing can be repainted to blend in.

Built-In Cybersecurity

Axis Edge Vault provides a secure element (CC EAL 6+, FIPS 140-3 Level 3), secure boot, signed OS, signed video and an encrypted filesystem, with IEEE 802.1X and HTTPS/TLS for network security.

Typical Applications

Building entrances and exits
Parking areas and loading zones
Retail storefronts and outdoor walkways
School grounds and campus perimeters

Compatible Accessories

Compatible accessories for the AXIS M4228-LVE, available at Affinitech Store:

Compare AXIS M42 Dome Cameras

Model	Max resolution	Type	Best for
AXIS M4215-V	1920x1080	Indoor 2 MP varifocal dome	Classrooms, retail, offices
AXIS M4215-LV	1920x1080	Indoor 2 MP varifocal dome with IR	Hallways, stairwells, dark rooms
AXIS M4216-V	2304x1728	Indoor 4 MP varifocal dome	Classrooms, retail, offices
AXIS M4216-LV	2304x1728	Indoor 4 MP varifocal dome with IR	Hallways, stairwells, dark rooms
AXIS M4218-V	3840x2160	Indoor 4K varifocal dome	Lobbies, retail floors, open offices
AXIS M4218-LV	3840x2160	Indoor 4K varifocal dome with IR	Hallways, stairwells, dark rooms
AXIS M4225-LVE	1920x1080	Outdoor 2 MP AI dome with IR and audio analytics	Entrances, perimeters, parking areas
AXIS M4227-LVE	2592x1944	Outdoor 5 MP AI dome with IR and audio analytics	Entrances, perimeters, parking areas
AXIS M4228-LVE (this camera)	3840x2160	Outdoor 4K AI dome with IR and audio analytics	Entrances, perimeters, parking areas

Explore More

Browse the full Dome Cameras collection at Affinitech Store
See more AI-Powered Cameras at Affinitech Store
Shop Outdoor Cameras at Affinitech Store

Frequently Asked Questions About AXIS M4228-LVE

What resolution does the AXIS M4228-LVE capture?

Up to 3840x2160 (8 MP (4K)) at up to 25/30 fps.

What lens does it have?

Varifocal, 3.2&ndash with a 100°–38° horizontal and 52°–20° vertical field of view, with remote zoom and focus.

Can it be installed outdoors?

Yes. It is IP66-, NEMA 4X- and IK10-rated and operates from -30 °C to 50 °C (-22 °F to 122 °F).

Does it have built-in IR?

Yes. OptimizedIR covers 20 m (66 ft) or more depending on the scene.

Which analytics are included?

AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield (available for download), AXIS Video Motion Detection.

How is it powered?

Power over Ethernet: PoE IEEE 802.3af/802.3at/802.3bt Type 1 Class 3; max 12.9 W, typical (heater off, IR off) 3.6 W; power meter.

What is the minimum light sensitivity?

Color: 0.14 lux at 50 IRE, F1.6; B/W: 0.03 lux at 50 IRE, F1.6; 0 lux with IR illumination on.

Does it support local storage?

Yes, microSD/microSDHC/microSDXC cards, plus recording to network-attached storage (NAS).

Does it support audio?

Yes. Its acoustic sensor powers AXIS Audio Analytics.

What cybersecurity features are built in?

Axis Edge Vault with a secure element, secure boot, signed OS, signed video and an encrypted filesystem.

What warranty does it have?

A 5-year Axis warranty.

View AllClose

Detailed Specifications

AXIS M4228-LVE Dome Camera Specifications

Specification	Details
Camera
Image sensor	1/2.8" progressive scan RGB CMOS, pixel size 1.45 µm
Lens	Varifocal, 3.2–7.2 mm, F1.6–2.7; fixed iris, IR corrected, remote zoom and focus
Horizontal field of view	100°–38°
Vertical field of view	52°–20°
Minimum focus distance	1.0 m (3.2 ft)
Day and night	Automatic IR-cut filter
Minimum illumination	Color: 0.14 lux at 50 IRE, F1.6 · B/W: 0.03 lux at 50 IRE, F1.6 · 0 lux with IR illumination on
Shutter speed	1/16000 s to 2 s
Camera adjustment	Pan ±180°, tilt -10 to +65°, rotation ±180°
System on Chip (SoC)
Model	ARTPEC-8
Memory	2 GB RAM, 8 GB Flash
Compute capabilities	Deep learning processing unit (DLPU)
Video
Video compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG
Resolution	16:9: 3840x2160 to 640x360 · 4:3: 2592x1944 to 320x240
Frame rate	Up to 25/30 fps (50/60 Hz) in all resolutions
Video streaming	Up to 20 unique and configurable video streams (max 3 recommended); Axis Zipstream in H.264 and H.265; controllable frame rate and bandwidth; VBR/ABR/MBR H.264/H.265; low latency mode; video streaming indicator
Signal-to-noise ratio	>55 dB
WDR	Forensic WDR: up to 120 dB depending on scene
Image settings	Saturation, contrast, brightness, sharpness, white balance, day/night threshold, exposure mode, exposure zones, compression, rotation 0°, 90°, 180°, 270° including corridor format, mirroring, dynamic text and image overlay, privacy masks
Image processing	Axis Zipstream, Forensic WDR, Lightfinder 2.0, OptimizedIR
Pan/Tilt/Zoom	Digital PTZ, optical zoom, preset positions; limited guard tour, control queue, on-screen directional indicator; tour recording (max 10, max duration 16 minutes each), guard tour (max 100), adjustable zoom speed
Audio
Sensor	Acoustic sensor
AXIS Audio Analytics	Features: sound pressure level, adaptive audio detection, audio classification · Audio classes: scream, shout, glass break, speech, coughing fit · Event metadata: audio detections, classifications, sound pressure level
Network
Network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
System Integration
Application Programming Interface	Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP); one-click cloud connection; ONVIF® Profile G, M, S and T
Video management systems	Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis’ partners
Event conditions	Application; device status: above/below/within operating temperature, IP address removed, new IP address, network lost, system ready, live stream active; edge storage: recording ongoing, storage disruption, storage health issues detected; I/O: manual trigger, virtual input; MQTT: stateless; scheduled and recurring: schedule; video: average bitrate degradation, day-night mode, tampering
Event actions	Day-night mode; illumination: use lights, use lights while the rule is active; images: FTP, HTTP, HTTPS, SFTP, network share and email; LEDs: flash status LED; MQTT: publish; notifications: HTTP, HTTPS, TCP and email; overlay text; recordings: record video, record video while the rule is active; security: erase configuration; SNMP trap messages; video clips: FTP, HTTP, HTTPS, SFTP, network share and email; WDR mode
Built-in installation aids	Pixel counter, remote zoom and focus, level grid
Analytics
Applications included	AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield (available for download), AXIS Video Motion Detection
Applications supported	AXIS Camera Application Platform (ACAP) third-party applications
AXIS Object Analytics	Object classes: humans, vehicles (cars, buses, trucks, bikes, other) · Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoring (beta), motion in area, motion line crossing · Up to 10 scenarios · Trajectories, color-coded bounding boxes and tables · Polygon include/exclude areas · Perspective configuration · ONVIF Motion Alarm event
AXIS Image Health Analytics	Tampering: blocked image, redirected image · Image degradation: blurred image, underexposed image · Other features: sensitivity, validation period
AXIS Scene Metadata	Object classes: humans, faces, vehicles (cars, buses, trucks, bikes), license plates · Object attributes: vehicle color, upper/lower clothing color, confidence, position
Approvals
Product markings	UL/cUL, UKCA, CE, EAC, VCCI, RCM, BSMI; TAA compliant
EMC	CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2; Australia/New Zealand: RCM AS/NZS CISPR 32 Class A; Canada: ICES(A)/NMB(A); Japan: VCCI Class A; USA: FCC Part 15 Subpart B Class A
Safety	CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC/EN 62471 risk group exempt, IS 13252
Environment	IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X
Network	NIST SP500-267
Cybersecurity	ETSI EN 303 645, BSI IT Security Label, FIPS 140
Cybersecurity
Edge security	Software: signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) · Hardware: Axis Edge Vault cybersecurity platform; secure keystore: secure element (CC EAL 6+, FIPS 140-3 Level 3), system-on-chip security (TEE); Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit)
Network security	IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall
General
Casing	IP66-, NEMA 4X- and IK10-rated; polycarbonate hard-coated dome; plastic casing, polycarbonate (PC) dome, weathershield (PC/ASA); color white NCS S 1002-B; can be repainted
Power	PoE IEEE 802.3af/802.3at/802.3bt Type 1 Class 3; max 12.9 W, typical (heater off, IR off) 3.6 W; power meter
Connectors	Network: shielded RJ45 10BASE-T/100BASE-TX
IR illumination	OptimizedIR with power-efficient, long-life 850 nm IR LEDs; range of reach 20 m (66 ft) or more depending on the scene
Storage	microSD/microSDHC/microSDXC card with SD card encryption (AES-XTS-Plain64 256-bit); recording to network-attached storage (NAS)
Operating conditions	-30 °C to 50 °C (-22 °F to 122 °F); start-up temperature -20 °C (-4 °F); humidity 10–100% RH (condensing)
Storage conditions	-40 °C to 65 °C (-40 °F to 149 °F); humidity 5–95% RH (non-condensing)
Dimensions	Effective Projected Area (EPA) 0.007 m² (0.08 ft²); see dimension drawing
Weight	540 g (1.2 lb)
Box content	Camera, weathershield, installation guide, connector guard, cable gaskets, owner authentication key
Optional accessories	AXIS T8415 Wireless Installation Tool, AXIS TM3601-E Conduit Back Box, AXIS TM4101 Pendant Kit, AXIS Surveillance Cards
DORI (wide / tele)	Detect 87.5 m (287.0 ft) / 203.6 m (667.8 ft) · Observe 34.7 m (113.8 ft) / 80.8 m (265.0 ft) · Recognize 17.5 m (57.4 ft) / 40.7 m (113.5 ft) · Identify 8.8 m (28.9 ft) / 20.4 m (66.9 ft)
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Warranty	5-year warranty
