AXIS M4218-V 8MP Indoor Varifocal Dome Camera, 02678-001
Brand: AXIS Communications
(No reviews yet)
Write a Review
- Availability:
- available
Contact us for a Quote Today!
Description
AXIS M4218-V Dome Camera – 8 MP (4K) Indoor Varifocal Dome
The AXIS M4218-V is a compact, discreet 8 MP (4K) indoor dome with a varifocal lens and remote zoom and focus. WDR keeps images clear in difficult light, a deep learning processing unit runs AXIS Object Analytics on the edge, and an HDMI output can drive a public-view monitor. Audio and I/O can be added with AXIS T61 Series portcast accessories, and Axis Edge Vault safeguards the device.
Key Specifications
| Max video resolution | 3840x2160 (4K) |
| Max frames per second | 12.5/15 |
| Lens | Varifocal, 3.5&ndash |
| Horizontal field of view | 93°–47° |
| Wide dynamic range | WDR, up to 110 dB |
| Min illumination (color) | 0.24 lux |
| Onboard analytics | AXIS Object Analytics (deep learning processing unit) |
| PoE class | Class 2 |
| IP rating | IP42 |
| Vandal rating | IK08 |
| HDMI output | Yes (HDMI type D) |
| Operating temperature | 0 to 40 °C |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the AXIS M4218-V?
- 8 MP (4K) resolution (3840x2160) at up to 12.5/15 fps
- Varifocal lens (3.5&ndash) with remote zoom and focus, 93°–47° horizontal field of view
- WDR for day, night and mixed light
- AXIS Object Analytics on a deep learning processing unit
- Axis Edge Vault hardware-based cybersecurity
- IP42 and IK08 rated, compact casing that can be repainted
- HDMI output for public view monitors; audio and I/O via AXIS T61 Series
- Single-cable PoE (Class 2)
Frame the Shot Remotely
The varifocal lens covers 93°–47° horizontally with remote zoom and focus, so installers can set the view from a browser. The camera can be pointed in any direction, including at the wall or ceiling.
Clear Images in Challenging Light
WDR (up to 110 dB depending on scene) holds detail when bright and dark areas share the frame.
Analytics on the Edge
A deep learning processing unit runs AXIS Object Analytics to detect and classify humans and vehicles, with AXIS Live Privacy Shield and AXIS Video Motion Detection included.
HDMI Output and Expandable Audio
An HDMI output (1080p at 25/30 Hz) can feed a public view monitor, and AXIS T61 Series portcast accessories add two-way audio and I/O over the same cable.
Built-In Cybersecurity
Axis Edge Vault provides a secure element (CC EAL 6+), secure boot, signed OS, signed video and an encrypted filesystem, with IEEE 802.1X and HTTPS/TLS for network security.
Typical Applications
- Classrooms and offices
- Retail floors and checkouts
- Lobbies and reception areas
- Healthcare waiting areas
Compatible Accessories
Compatible accessories for the AXIS M4218-V. Linked items are available at Affinitech Store; contact us for the others:
- AXIS T8415 Wireless Installation Tool
- AXIS TM4201 Recessed Mount (4-pack)
- AXIS TM3207 Recessed Mount
- AXIS T94C01L Recessed Mount
- AXIS T94C01U Universal Mount
- AXIS T94C01M J-Box/Gang Box Plate
- AXIS M42 Smoked Dome A (4-pack)
- AXIS T91A33 Lighting Track Mount (4-pack)
- AXIS T91A23 Tile Grid Ceiling Mount (4-pack)
- AXIS TM4101 Pendant Kit
- AXIS TM3101 Pendant Wall Mount
- AXIS Surveillance Card 256 GB (microSDXC)
- AXIS M42 Casing A Black (4-pack)
Compare AXIS M42 Dome Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| AXIS M4215-V | 1920x1080 | Indoor 2 MP varifocal dome | Classrooms, retail, offices |
| AXIS M4215-LV | 1920x1080 | Indoor 2 MP varifocal dome with IR | Hallways, stairwells, dark rooms |
| AXIS M4216-V | 2304x1728 | Indoor 4 MP varifocal dome | Classrooms, retail, offices |
| AXIS M4216-LV | 2304x1728 | Indoor 4 MP varifocal dome with IR | Hallways, stairwells, dark rooms |
| AXIS M4218-V (this camera) | 3840x2160 | Indoor 4K varifocal dome | Lobbies, retail floors, open offices |
| AXIS M4218-LV | 3840x2160 | Indoor 4K varifocal dome with IR | Hallways, stairwells, dark rooms |
| AXIS M4225-LVE | 1920x1080 | Outdoor 2 MP AI dome with IR and audio analytics | Entrances, perimeters, parking areas |
| AXIS M4227-LVE | 2592x1944 | Outdoor 5 MP AI dome with IR and audio analytics | Entrances, perimeters, parking areas |
| AXIS M4228-LVE | 3840x2160 | Outdoor 4K AI dome with IR and audio analytics | Entrances, perimeters, parking areas |
Need night vision? See the AXIS M4218-LV with built-in OptimizedIR.
Explore More
- Browse the full Dome Cameras collection at Affinitech Store
- See more AI-Powered Cameras at Affinitech Store
Frequently Asked Questions About AXIS M4218-V
What resolution does the AXIS M4218-V capture?
Up to 3840x2160 (8 MP (4K)) at up to 12.5/15 fps.
What lens does it have?
Varifocal, 3.5&ndash with a 93°–47° horizontal and 50°–26° vertical field of view, with remote zoom and focus.
Can it be installed outdoors?
No. It is an indoor camera with IP42 and IK08 ratings.
Does it have built-in IR?
No. For built-in IR, choose the -LV version.
Which analytics are included?
AXIS Object Analytics, AXIS Video Motion Detection, AXIS Live Privacy Shield, active tampering alarm.
How is it powered?
Power over Ethernet: PoE IEEE 802.3af/802.3at Type 1 Class 2; typical 3 W, max 4.8 W.
What is the minimum light sensitivity?
Color: 0.24 lux at 50 IRE F1.7; B/W: 0.04 lux at 50 IRE F1.7.
Does it support local storage?
Yes, microSD/microSDHC/microSDXC cards, plus recording to network-attached storage (NAS).
Does it have an HDMI output?
Yes, HDMI type D: 1080p (16:9) at 25/30 Hz or 720p (16:9) at 50/60 Hz.
Does it support audio?
Two-way audio and I/O can be added through portcast technology with AXIS T61 Series accessories.
What cybersecurity features are built in?
Axis Edge Vault with a secure element, secure boot, signed OS, signed video and an encrypted filesystem.
What warranty does it have?
A 5-year Axis warranty.
Detailed Specifications
AXIS M4218-V Dome Camera Specifications
| Specification | Details |
|---|---|
| Camera | |
| Image sensor | 1/2.8" progressive scan RGB CMOS |
| Lens | Varifocal, 3.5–6.6 mm, F1.7–2.6 |
| Horizontal field of view | 93°–47° |
| Vertical field of view | 50°–26° |
| Minimum focus distance | 1.5 m (59 in) |
| Day and night | Automatic IR-cut filter |
| Minimum illumination | Color: 0.24 lux at 50 IRE F1.7 · B/W: 0.04 lux at 50 IRE F1.7 |
| Shutter speed | 1/71500 s to 1/5 s |
| Camera adjustment | Pan ±180°, tilt -40 to +65°, rotation ±105°; can be directed in any direction and see the wall/ceiling |
| System on Chip (SoC) | |
| Model | CV25 |
| Memory | 2048 MB RAM, 512 MB Flash |
| Compute capabilities | Deep learning processing unit (DLPU) |
| Video | |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG |
| Resolution | 3840x2160 to 320x240 |
| Frame rate | Up to 12.5/15 fps with power line frequency 50/60 Hz in H.264 and H.265 (reduced frame rate in Motion JPEG) |
| Video streaming | Multiple, individually configurable streams (max 3 recommended); Axis Zipstream in H.264 and H.265; controllable frame rate and bandwidth; VBR/ABR/MBR H.264/H.265 |
| Multi-view streaming | 2 individually cropped out view areas |
| HDMI output | HDMI 1080p (16:9) at 25/30 Hz refresh rate; HDMI 720p (16:9) at 50/60 Hz refresh rate |
| Noise reduction | Spatial filter (2D noise reduction), temporal filter (3D noise reduction) |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR up to 110 dB depending on scene, text and image overlay, mirroring of images, privacy mask; rotation 0°, 90°, 180°, 270°, including Corridor Format |
| Pan/Tilt/Zoom | Digital PTZ |
| Audio | |
| Audio input/output | Audio features through portcast technology: two-way audio connectivity, voice enhancer |
| Network | |
| Network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; one-click cloud connection; ONVIF® Profile G, M, S and T; Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| Video management systems | Compatible with AXIS Camera Station Edge, AXIS Camera Station Pro, AXIS Camera Station 5, and video management software from Axis’ partners |
| Event conditions | Application; device status: above/below/within operating temperature, IP address removed, new IP address, network lost, system ready, live stream active; edge storage: recording ongoing, storage disruption, storage health issues detected; I/O: manual trigger, virtual input; MQTT: subscribe; scheduled and recurring: schedule; video: average bitrate degradation, day-night mode, tampering |
| Event actions | Day-night mode; MQTT: publish; notification: HTTP, HTTPS, TCP and email; overlay text; pre- and post-alarm video or image buffering for recording or upload; recordings: SD card and network share; SNMP traps: send, send while the rule is active; upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email; WDR mode |
| Built-in installation aids | Pixel counter, remote zoom and focus, level grid |
| Analytics | |
| Applications included | AXIS Object Analytics, AXIS Video Motion Detection, AXIS Live Privacy Shield, active tampering alarm |
| Applications supported | AXIS Camera Application Platform (ACAP) third-party applications |
| AXIS Object Analytics | Object classes: humans, vehicles (cars, buses, trucks, bikes) · Scenarios: line crossing, object in area, occupancy in area, time in area · Up to 10 scenarios · Color-coded bounding boxes · Polygon include/exclude areas · Perspective configuration · ONVIF Motion Alarm event |
| AXIS Scene Metadata | Object classes: humans, faces, vehicles (cars, buses, trucks, bikes), license plates · Object attributes: vehicle color, upper/lower clothing color, confidence, position |
| Approvals | |
| Product markings | CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| EMC | CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2; USA: FCC Part 15 Subpart B Class A; Canada: ICES-3(A)/NMB-3(A); Korea: KS C 9835, KS C 9832 Class A; Australia/New Zealand: RCM AS/NZS CISPR 32 Class A; Japan: VCCI Class A |
| Safety | IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IS 13252 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Network | NIST SP500-267 |
| Cybersecurity | ETSI EN 303 645, BSI IT Security Label |
| Cybersecurity | |
| Edge security | Software: signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 Client Credential Flow/OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256-bit SD card encryption · Hardware: Axis Edge Vault cybersecurity platform; secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256-bit) |
| Network security | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| General | |
| Casing | IP42 ingress protection, IK08 impact-resistant, polycarbonate and aluminum casing with hard-coated dome; encapsulated electronics; color white NCS S 1002-B; can be repainted (contact your Axis partner) |
| Power | PoE IEEE 802.3af/802.3at Type 1 Class 2; typical 3 W, max 4.8 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE; HDMI type D; audio and I/O connectivity via portcast technology |
| Storage | microSD/microSDHC/microSDXC card; recording to network-attached storage (NAS) |
| Operating conditions | 0 °C to 40 °C (32 °F to 104 °F); humidity 10–85% RH (non-condensing) |
| Storage conditions | -30 °C to 65 °C (-22 °F to 149 °F); humidity 5–95% RH (non-condensing) |
| Dimensions | Height 71 mm (2.8 in), ø 120 mm (4.72 in) |
| Weight | 356 g (0.78 lb) |
| Box content | Camera, installation guide, owner authentication key, virtual client license for H.264/H.265 |
| Optional accessories | AXIS T8415 Wireless Installation Tool, AXIS TM4201 Recessed Mount, AXIS TM3207 Recessed Mount, AXIS T94C01L Recessed Mount, AXIS T94C01U Universal Mount, AXIS T94C01M J-Box/Gang Box Plate, AXIS M42 Casing A Black 4P, AXIS M42 Smoked Dome A 4P, AXIS T91A33 Lighting Track Mount, AXIS T91A23 Tile Grid Ceiling Mount, AXIS TM4101 Pendant Kit, AXIS TM3101 Pendant Wall Mount, AXIS Surveillance Cards |
| DORI (wide / tele) | Detect 97.57 m (320.0 ft) / 184.48 m (605.09 ft) · Observe 38.71 m (127.0 ft) / 73.20 m (240.1 ft) · Recognize 19.50 m (63.96 ft) / 36.89 m (121.0 ft) · Identify 9.72 m (31.9 ft) / 18.43 m (60.45 ft) |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
| Warranty | 5-year warranty |
Related Products
Related Products
Contact us for a Quote Today!

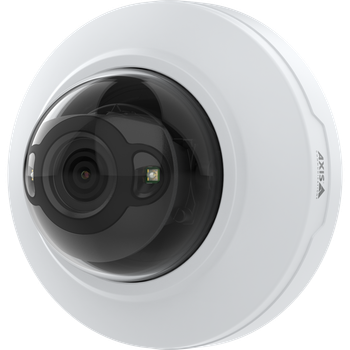

AXIS M4218-LV 8MP Indoor Varifocal Dome Camera with IR, 02679-001
