AXIS M1137-E 5MP Outdoor Varifocal Box Camera, 01773-001

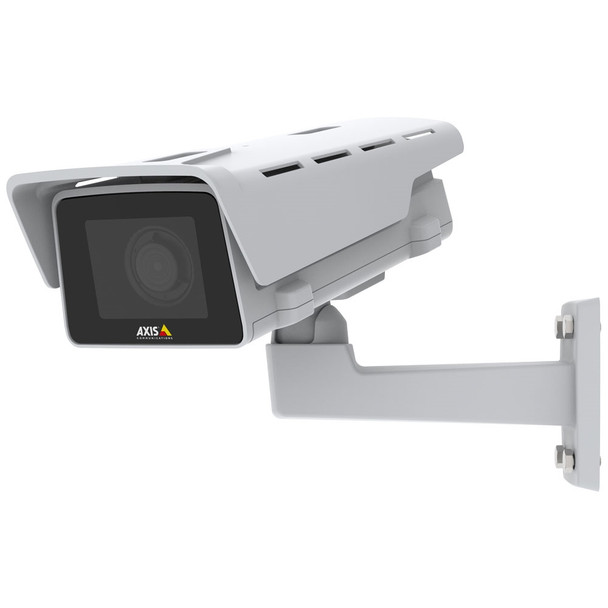

AXIS M1137-E 5 MP Outdoor-Ready Box Camera

The AXIS M1137-E is an outdoor-ready 5 MP compact box camera with Axis Lightfinder and Forensic WDR for true colors and detail in difficult light. Its CS-mount takes a varifocal 2.8–13 mm lens and accepts other lenses when a scene needs a different view. An ARTPEC-7 machine learning processing unit runs AXIS Object Analytics to detect and classify humans and vehicles. The IP66-, NEMA 4X- and IK10-rated enclosure, with wall mount included, suits building entrances, perimeters and parking areas.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the AXIS M1137-E?

• 2592x1944 (5 MP) at up to 25/30 fps in all resolutions
• Axis Lightfinder and Forensic WDR (up to 120 dB depending on scene)
• CS-mount with a varifocal 2.8–13 mm DC-iris lens; exchangeable for other CS lenses
• AXIS Object Analytics (humans, vehicles), AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard included
• Axis Zipstream in H.264 and H.265 to cut bandwidth and storage
• Signed firmware, secure boot, HTTPS and IEEE 802.1x network access control
• Power over Ethernet (Class 3) or 8-28 V DC input for redundant power
• IP66, NEMA 4X and IK10 outdoor-ready enclosure

Clear Images in Difficult Light

Axis Lightfinder keeps colors true in low light and Forensic WDR (up to 120 dB depending on scene) holds detail when bright and dark areas share the frame. Minimum illumination is 0.12 lux at 30 IRE in color and 0.02 lux in black and white, and the infrared-cut filter switches automatically between day and night modes.

Flexible Coverage and Resolution

The 1/2.7″ sensor streams 5 MP (2592x1944) or 4 MP (2688x1512) at up to 25/30 fps. The 2.8–13 mm lens covers 112°–24° horizontally in 5 MP mode, from a wide overview to a tighter view. Digital PTZ and multiple individually configurable streams let one camera feed both live viewing and recording.

Analytics on the Edge

The ARTPEC-7 machine learning processing unit runs AXIS Object Analytics to detect and classify humans and vehicles, with line crossing and object in area triggers (time in area listed as beta) and up to 10 scenarios. AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard and active tampering alarm are also included.

Built-In Cybersecurity

Signed firmware and secure boot make sure only authorized AXIS firmware runs on the camera. Password protection, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS) network access control, digest authentication, a user access log and brute force delay protection secure network access.

Easy, Robust Installation

The enclosure is rated IP66, NEMA 4X and IK10 and operates from -25 °C to 50 °C (-13 °F to 122 °F), starting up at -20 °C (-4 °F). The AXIS T94Q01A Wall Mount, a Torx T20 screwdriver, a Torx T30 bit and a connector kit come in the box. Power comes from PoE (IEEE 802.3af/802.3at Type 1 Class 3) or 8-28 V DC.

Typical Applications

• Building entrances and exits
• Building perimeters
• Parking areas and driveways
• Loading docks and yards
• School and campus exteriors

Compatible Accessories

Compatible accessories for the AXIS M1137-E. Linked items are available at Affinitech Store; contact us for the others:

• AXIS T98A16-VE Surveillance Cabinet
• AXIS T91B47 Pole Mount (100-410 mm straps)
• AXIS T91B47 Pole Mount (50-150 mm straps)
• AXIS T8351 Mk II Microphone 3.5 mm
• AXIS T94R01P Conduit Back Box
• AXIS T90B Illuminators
• AXIS Lens Computar CS 12.5-50 mm DC-iris

Compare AXIS M11 Box Cameras

Explore More

• Browse the full Box Cameras collection at Affinitech Store
• See all Outdoor Cameras at Affinitech Store
• Explore AI Cameras with onboard analytics at Affinitech Store

Frequently Asked Questions About AXIS M1137-E

What resolution does the AXIS M1137-E record?

Up to 5 MP (2592x1944) or 4 MP (2688x1512) at up to 25/30 fps.

What lens does it have?

A varifocal, IR corrected, CS-mount DC-iris lens, 2.8-13 mm, covering 112°-24° horizontally in 5 MP mode (115°-25° in 4 MP mode).

Can I change the lens?

Yes. The camera has a CS-mount. Optional lenses listed by Axis include the Computar 12.5-50 mm DC-iris.

How does it perform in low light?

It uses Axis Lightfinder and Forensic WDR. Minimum illumination is color 0.12 lux and B/W 0.02 lux at 30 IRE, F1.4.

Does it have built-in IR?

No. It has an automatically removable infrared-cut filter for day and night use; Axis lists the AXIS T90B Illuminators as optional accessories.

Which analytics are included?

AXIS Object Analytics (humans, vehicles), AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, AXIS Video Motion Detection and active tampering alarm.

Does it record audio?

Yes. It has an external microphone or line input (3.5 mm) for audio recording.

How is it powered?

Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, or 8-28 V DC through a terminal block for redundant power.

Can it be installed outdoors?

Yes. It is outdoor-ready in an IP66-, NEMA 4X- and IK10-rated enclosure, operating from -25 °C to 50 °C (-13 °F to 122 °F) with a wall mount included.

What cybersecurity features are built in?

Signed firmware, secure boot, HTTPS encryption, IEEE 802.1x (EAP-TLS) network access control, IP address filtering, digest authentication and brute force delay protection.

Is the AXIS M1137-E discontinued?

Yes. Axis has replaced it with the AXIS M1137-E Mk II.

What warranty does it have?

A 5-year Axis warranty.
