2N IP Solo Audio Intercom, No Camera, Flush Mount, Nickel, 02205-001

2N IP Solo Audio-Only Intercom – Flush Mount, Nickel

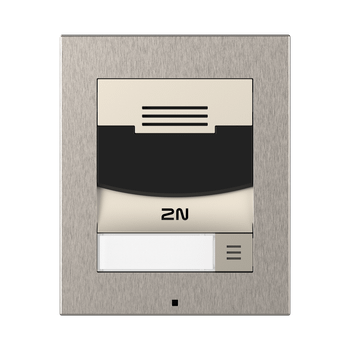

The 2N IP Solo flush-mount audio intercom in nickel is the camera-free version of the compact one-button 2N IP Solo. It suits residential and commercial entrances where video is not needed, and 2N product data positions it for sites where the larger 2N IP Verso without a camera would take too much space. It is the flush-mount, nickel version (order number 02205-001) and carries an IP54 rating.

The 2N IP Solo is a single-button, compact intercom. It is a separate product line from the 2N IP Verso and the 2N IP Force.

Key Specifications

Full specifications are listed in the Detailed Specifications tab.

Why Choose the 2N IP Solo Flush-Mount Nickel?

• Audio-only unit for entrances that do not need a camera
• Connect an external IP camera if you later want to cover a blind spot
• One backlit button with a removable label for a clean, simple front
• SIP 2.0 calls plus an open API for home automation and third-party systems
• PoE (802.3af) or 12 V DC power with a relay output for an electric lock
• IP54 and IK08 rating with an operating range of -40 °C to 60 °C
• Flush installation with a flush mounting box and frame
• Available in nickel and black finishes to match the surroundings

Voice Without Video

This version has no camera, so visitors are handled by voice and the door relay. 2N lists the same audio and network platform for the IP Solo family: a built-in microphone, a 2 W / 8 Ω speaker, G.711, G.729, G.722 and L16/16 kHz audio, and SIP 2.0. If you need a view of the door, an external IP camera can be connected.

Calls, Cloud and Home Automation

The IP Solo calls SIP phones and, with the 2N Mobile Video cloud service, smartphones and tablets; free cloud calls are included for single-family homes (up to 4 phones per new installation, per 2N). An open API links it to an existing smart home system, and HTTP, HTTPS, SMTP, TFTP, Syslog and 802.1x are supported for network integration.

Door Control and Power

An NC/NO relay (30 V, 1 A AC/DC) and an active switch output (8 to 12 V DC, up to 400 mA) can switch a lock, and a built-in tamper switch detects removal. Power comes from PoE (802.3af, Class 0, 12.95 W) or a 12 V / 2 A DC adapter.

Flush Mounting in Nickel

The flush frame measures 5.118 x 6.024 x 0.197 in (W x H x D) and sits in a wall box; 2N lists a flush mounting box for it. The same intercom is also made in a surface-mount version if you cannot cut into the wall.

Typical Applications

• Single-family home entrances and smart home gates
• Small offices and shops
• Apartment and townhouse entrances
• Side doors and service entrances where a compact station is preferred

Compatible Accessories

Compatible accessories for the 2N IP Solo. Linked items are available at Affinitech Store; contact us for the others:

• 2N IP Solo Flush Mounting Box (01304-001)
• 2N IP Solo Backplate for Uneven Surfaces (01305-001)
• 2N IP Solo Wedge Backplate, 25-degree (02077-001)
• 2N IP Solo Glass Mount (02078-001)
• 2N 2Wire Adapter Set, US (01404-001)
• 2N Security Relay (01386-001)
• 2N External IP Relay, 1 Output, 1 Input (01397-001)
• 2N External IP Relay, 4 Outputs (01398-001)
• 2N Magnetic Door Contact (01388-001)
• 2N PoE Injector (01394-001)
• 2N 12 V Power Supply (02520-001)

Compare 2N IP Solo Intercoms

Need the black finish? See the flush-mount black version, order number 02204-001 (new listing).

Explore More

• Browse all Network Door Stations and Intercoms at Affinitech Store
• See the full Access Control collection

Frequently Asked Questions About the 2N IP Solo Flush-Mount Nickel Audio-Only

What is the 2N IP Solo Flush-mount nickel?

It is the flush-mount, nickel version (02205-001) of the compact one-button 2N IP Solo intercom, without a camera.

Does it have a camera?

No. This is the camera-free version; the IP Solo with camera is a separate order number. An external IP camera can be connected if needed.

How is it powered?

By PoE (IEEE 802.3af, Class 0) or a 12 V / 2 A DC supply.

How do I open a door with it?

Use the NC/NO relay (30 V, 1 A AC/DC) or the active switch output (8 to 12 V DC, max 400 mA).

Can it be used outdoors?

It is rated IP54 and IK08 and operates from -40 °C to 60 °C, so it can be installed outdoors in a sheltered position.

Which protocols does it support?

SIP 2.0, DHCP option 66, ONVIF, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS and Syslog.

Can it call my phone?

Yes. It calls SIP phones, and 2N Mobile Video cloud calls to smartphones and tablets are included free for single-family homes, up to 4 phones per new installation.

How big is the flush frame?

5.118 x 6.024 x 0.197 in (W x H x D) for the flush frame.

Is there a black version?

Yes, the black version of this model is order number 02204-001.

Is it the same as the 2N IP Verso?

No. The IP Solo is a compact, single-button line; the IP Verso is a modular, larger family with its own parts.
