Hanwha WRT-P-5205x Series WAVE Recording Server, WRT-P-5205L-8TB
Description

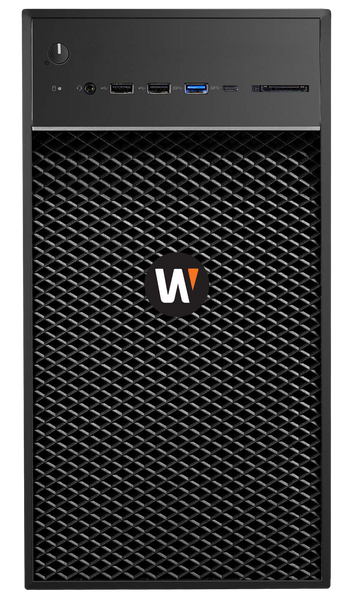

Hanwha WRT-P-5205x Series WAVE Recording Server WRT-P-5205L-8TB
Deploy faster. Record smarter. Scale with confidence.
The WRT-P-5205x Series is a high-performance, pre-configured video surveillance server designed to simplify deployments while delivering enterprise-grade reliability.
Ready to Upgrade Your Video Surveillance?
✔ Check Stock and Lead Times
✔ Expert Support Available
✔ Trusted by Integrators Nationwide
Overview
The Hanwha WRT-P-5205x Series is a powerful WAVE recording server preloaded with Wisenet WAVE VMS, enabling fast deployment with minimal configuration. Supporting up to 470 Mbps recording throughput and 36TB of storage, this server is ideal for growing surveillance environments.
Designed for flexibility, it supports up to 64 IP cameras and integrates seamlessly with ONVIF-compliant devices. Whether you're deploying a new system or expanding an existing one, this server delivers reliable, scalable performance.
Key Benefits
- Fast Deployment: Preloaded with WAVE VMS and licenses
- High Performance: 470 Mbps throughput for demanding environments
- Scalable Storage: Up to 36TB capacity
- Flexible OS Options: Windows or Ubuntu support
- Future-Proof: ONVIF compatibility for system expansion
What’s Included
- WRT-P-5205x Recording Server
- 4x Wisenet WAVE Professional Licenses
- Keyboard & Mouse
- 5-Year Warranty (Keep Your Hard Drive)
Ideal Applications
- Retail & Loss Prevention
- Commercial Buildings
- Schools & Campuses
- Healthcare Facilities
- Multi-Site Surveillance Systems
Why Buy from Affinitech Store?
✔ Authorized Security Solutions Provider
✔ Competitive Pricing for Integrators
✔ Expert Pre-Sales & System Design Support
✔ Fast Shipping Across the U.S.
✔ Authorized Security Solutions Provider
✔ Competitive Pricing for Integrators
✔ Expert Pre-Sales & System Design Support
✔ Fast Shipping Across the U.S.
Technical Specifications
| Specification | Details |
|---|---|
| Recording Throughput | Up to 470 Mbps |
| Camera Support | Up to 64 channels |
| Storage | Up to 36TB raw capacity |
| Memory | 16GB RAM |
| OS Drive | 512GB M.2 SSD |
| Drive Bays | 3 x 3.5" hot-swappable |
| Network | 1x 1GbE, 1x 5GbE |
| Operating System | Windows 11 IoT LTSC 2024 / Ubuntu 22.04 |
| Power Supply | 1500W 80 Plus Platinum |
| Power Input | 100–240 VAC |
| Operating Temp | 50°F to 95°F |
| Humidity | 20%–85% non-condensing |
| Dimensions | 7.4" x 17.24" x 15.24" |
| Weight | 44.97 lbs |
| Certifications | UL, cUL, CB, FCC |
Detailed Specifications
| Specification | Details |
|---|---|
| Recording Throughput | Up to 470 Mbps |
| Channel Support | Up to 64 IP cameras |
| Storage Capacity | Up to 36TB raw storage |
| Operating System | Windows 11 IoT Enterprise LTSC 2024 or Ubuntu 22.04 LTS |
| Memory | 16GB RAM |
| OS Drive | 512GB M.2 SSD (internal) |
| Drive Bays | 3 x 3.5” front hot-swappable bays |
| Network Interface | 1x 1GbE RJ45, 1x 5GbE RJ45 |
| Video Management Software | Wisenet WAVE VMS |
| Included Licenses | 4 x Professional Licenses |
| USB Ports |
Front: 2x USB 3.2 Gen1, 1x USB 3.2 Gen2 Type-C, 1x USB 3.2 Gen 2x2 Type-C Rear: 2x USB 2.0, 2x USB 3.2 Gen2, 1x USB 3.2 Gen 2x2 Type-C, 1x Thunderbolt Type-C |
| Audio | 1x 3.5mm universal audio (front) |
| Power Supply | 1500W 80 Plus Platinum |
| Power Input | 100 - 240 VAC |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | -40°F to 149°F (-40°C to 65°C) |
| Humidity | 20% to 85% non-condensing |
| Form Factor | Mini-Tower |
| Dimensions | 7.40”W x 17.24”D x 15.24”H |
| Weight | 44.97 lbs (without HDDs) |
| Certifications | UL, cUL, CB, FCC, 80 Plus Platinum |
