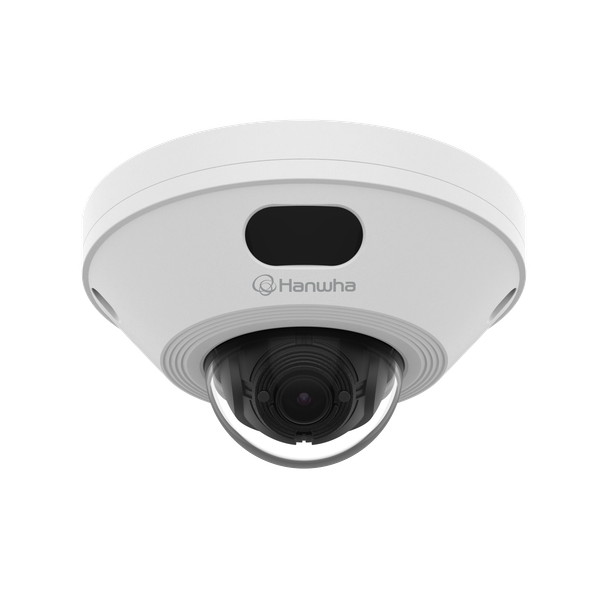

Hanwha Vision XNV-A8016R 5MP IR Compact Outdoor Vandal Dome AI Camera

Brand: Hanwha Vision America
SKU:
XNV-A8016R
Condition:
New
(No reviews yet) Write a Review
MSRP: $1,150.00
Price: $747.50
— You save $402.50

Description

Hanwha Vision XNV-A8016R – 5MP IR Compact Outdoor Vandal Dome AI Camera

The Hanwha Vision XNV-A8016R is a 5MP IR Compact Outdoor Vandal Dome AI camera built for entrances, building perimeters and parking areas. Powered by WN9, Outdoor Network AI IR Dome Compact Camera, 5MP resolution @ 30FPS, 3mm fixed lens, FoV (H:100°, V:74°), H.265/H.264/MJPEG codec, IR viewable length 25m (82ft), USB-C port for easy installation, Day & Night (ICR), extremeWDR (120dB), Hard-coated dome bubble, Handover, AI-based WiseStream, WiseNR Ⅱ (using AI engine), Dynamic privacy mask, IVA events based on AI engine (Motion & Object detection, Line crossing, IVA area, Slip & Fall), Classified object types (Person/Face/Vehicle/License plate), Object attributes (Person: Gender/Top/Bottom clothing color/Bag, Face: Age/Gender/Mask/Glasses, Vehicle: Type/Color), BestShot, Analytics events (Defocus, Motion, Tampering, Audio), AI-based business intelligence (People/Vehicle/Crowd counting, Queue management, Heatmap), Secure element with FIPS 140-3 level3, Built-in microSD card slot (Up to 1TB), IP66, NEMA4X, IK10, Operating temperature: -40°C~+55°C (-40°F~+131°F), Power: PoE, Metal shielded RJ-45. OnCloud Compatible.

Key Specifications

Max video resolution 2560x1920 (5MP)
Max frames per second 30fps/25fps(60Hz/50Hz)
Image sensor 1/2.8" CMOS
Focal length / lens 3.0 mm
Horizontal field of view 100°
Wide dynamic range 120 dB
Min illumination (color) 0.06 lux
Built-in IR 25m(82.02ft)
Onboard AI (object classes) Person, Face, Vehicle, License plate
Power PoE(IEEE802.3af, Class3) · Max. 7.9W, typical 6.2W
IP / vandal rating IP66, NEMA 4X, IK10
Operating temperature -40°C~+55°C(-40°F~+131°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision XNV-A8016R?

  • 5MP 2560x1920 video at up to 30fps/25fps
  • 3.0 mm lens and a 100° horizontal view
  • 120 dB WDR for bright and backlit scenes
  • Built-in IR: 25m(82.02ft)
  • AI object classification: Person, Face, Vehicle, License plate
  • Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
  • IP66, NEMA 4X, IK10 rated housing
  • Power: PoE(IEEE802.3af, Class3)

Clear Video Day and Night

The XNV-A8016R captures color video down to 0.06 lux; its built-in IR reaches 25m(82.02ft); 120 dB WDR keeps detail in scenes with bright and dark areas.

Coverage and Resolution

A 3.0 mm lens covers a 100° horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 4.3m(14.27ft); resolution is up to 2560x1920 at 30fps/25fps(60Hz/50Hz).

AI Analytics on the Edge

The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Stopped vehicle, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear); business intelligence features include People counting, Queue management, Heatmap, Vehicle counting, Crowd counting.

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645); IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE(IEEE802.3af, Class3) (Max. 7.9W, typical 6.2W); operating temperature: -40°C~+55°C(-40°F~+131°F); ratings: IP66, NEMA 4X, IK10; edge storage: Max. 1TB x 1slot; compression: H.265/H.264: Main/Baseline/High, MJPEG.

Typical Applications

  • Building entrances
  • Building perimeters
  • Parking areas
  • Walkways

Compatible Accessories

Compatible accessories for the Hanwha Vision XNV-A8016R. Linked items are available at Affinitech Store; contact us for the others:

Explore More

Frequently Asked Questions About Hanwha Vision XNV-A8016R

What resolution does the Hanwha Vision XNV-A8016R capture?

Up to 2560x1920 (5MP) at 30fps/25fps(60Hz/50Hz).

What lens does it use?

3.0 mm; horizontal field of view 100°.

Does it see in the dark?

Yes. Built-in IR reaches 25m(82.02ft).

Can it be installed outdoors?

Yes. It is rated IP66, NEMA 4X, IK10 and operates from -40°C~+55°C(-40°F~+131°F).

What can the AI analytics detect?

It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Stopped vehicle, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear).

How is it powered?

PoE(IEEE802.3af, Class3) (Max. 7.9W, typical 6.2W).

What video compression does it support?

H.265/H.264: Main/Baseline/High, MJPEG.

Does it support onboard storage?

Yes: Max. 1TB x 1slot.

What cybersecurity features are built in?

Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645).

Is it ONVIF compliant?

Yes, ONVIF Profile S, G, T, M.

View AllClose

Detailed Specifications

Hanwha Vision XNV-A8016R Specifications

SpecificationDetails
Video
Imaging Device - Size1/2.8"
Imaging Device - TypeCMOS
Resolution2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. Framerate - H.265/H.26430fps/25fps(60Hz/50Hz)
Max. Framerate - MJPEG30fps(@5MP Max. 5fps)
Min. Illumination (Lux) - Color(1/30sec, 30IRE)0.06
Min. Illumination (Lux) - BW(1/30sec, 30IRE)0.006
Video OutUSB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.
Lens
Focal Length (mm)3.0
Max Aperture Ratio (F number) - Wide1.6
Max Aperture Ratio (F number) - Tele1.6
Angular Field of View - Horizontal100°
Angular Field of View - Vertical74°
Angular Field of View - Diagonal130°
Min. Object Distance0.4m(1.31ft)
Focus ControlManual
Lens TypeFixed iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - Pan0°~351°
Pan / Tilt / Rotate Range - Tilt0°~64°
Pan / Tilt / Rotate Range - Rotate±90°
Operational
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)120
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport
DefogSupport
Motion Detection - Quantity8ea
Motion Detection - Shape8point Polygonal zones
Privacy Masking - Quantity32ea
Privacy Masking - ShapePolygonal zones
Privacy Masking - Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Privacy Masking - Dynamic Privacy Masking: Color / OptionGray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain ControlOff, Max gain, Manual
White BalanceATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDCSupport(Fill/stretch mode)
Electronic Shutter - ModeMinimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter - Speed Range2~1/30,000sec
Digital PTZSupport
Video RotationFlip, Mirror, Hallway view(90°/270°)
Alarm Interface - OthersSupport alarm I/O via optional I/O box
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Day/Night, Storage disruption
Alarm Events When Alarm Trigger OccurredFile upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, MQTT: publication
Audio InSupport via optional I/O box
Audio OutSupport via optional I/O box
Light TypeIR LED
Light Viewable Length - IR25m(82.02ft)
IR Wavelength850nm
Analytics
Classified Object TypePerson, Face, Vehicle, License plate
Attributes - PersonUpper/Lower clothes color, Gender, Bag
Attributes - VehicleType(car, bus, truck, motorcycle, bicycle), Color
Attributes - FaceAge, Gender, Face mask, Glasses
ThumbnailBestShot
Analytics Events - Based on AI EngineObject detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Stopped vehicle, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
Analytics Events - NormalDefocus detection, Tampering, Audio detection
Business Intelligence - Based on AI EnginePeople counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Network
EthernetMetal shielded RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual, WiseStream(Based on AI engine)
Bitrate ControlH.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR
Streaming - UnicastUp to 20 users
Streaming - MulticastSupport
Streaming - Multiple StreamingUp to 5 profiles
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, PIM-SM, SMTP(StartTLS), Syslog
Application Programming Interface - ONVIFS, G, T, M
Application Programming Interface - OthersSUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud ConnectionSupport
Security
OS / Firmware ProtectEncrypted firmware, Secure boot, Signed firmware
User authenticationDigest authentication, Prevent brute-force attack
Network authenticationIEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure CommunicationHTTPS, WSS(WebSocket Secure), SRTP, 802.1AE(MACsec)
Access ControlIP-based access control, MAC-based access control, Auto logout
Data ProtectEncryption credentials, Encrypt compress for live recording file export
AuditAccess / System / Event Log management
Device IDDevice certificate(Hanwha Vision Root CA)
Secure StorageSDcard partition encrypt(AES-256), Secure element
Supply Chain SecuritySBOM
Security CertificateSecure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
Memory - RAM4GB
Memory - Flash8GB eMMC
Edge Storage - Micro SD/SDHC/SDXCMax. 1TB x 1slot
Edge Storage(OnCloud) - Micro SD/SDHC/SDXCMax. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating Condition - Temperature-40°C~+55°C(-40°F~+131°F)
Operating Condition - Humidity0~100% RH(condensing)
Operating Condition - Others+74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C
Storage Condition - Temperature-50°C~+60°C(-58°F~+140°F)
Storage Condition - Humidity0~90% RH(non-condensing)
Input VoltagePoE(IEEE802.3af, Class3)
Power Consumption - PoEMax. 7.9W, typical 6.2W
WisePowerPower monitoring, Eco mode
Mechanical
ColorWhite
MaterialAluminum, Hard-coated dome
Material Management - DeclarationRoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL CodeRAL9003
Product Dimensionsø120x65.5mm(ø4.72x2.58")
Product Weight555g(1.22b)
Certifications & Standards
EMCNone, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
EnvironmentIEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
AI Detection Distance
Person(1.8m/5.9ft) - Wideup to 26m(85ft)
Vehicle(1.45m/4.8ft) - Wideup to 34m(113ft)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) - Wide43.5m(142.71ft)
Observe (63PPM/ 19PPF) - Wide17.4m(57.09ft)
Recognize (125PPM/ 38PPF) - Wide8.7m(28.54ft)
Identify (250PPM/ 76PPF) - Wide4.3m(14.27ft)
