Hanwha Vision XNO-A9014R 8MP IR Bullet AI Camera
Description
Hanwha Vision XNO-A9014R – 8MP IR Bullet AI Camera
The Hanwha Vision XNO-A9014R is an 8MP IR Bullet AI camera built for parking lots, perimeters and loading docks. Powered by WN9, Outoor Network AI IR Vandal Bullet Camera, 8MP resolution @ 30FPS, 3mm fixed lens (108°), H.265/H.264/MJPEG codec, IR viewable length 25m (82ft), USB-C port for easy installation, Selectable microphone input (mic in/line in), Day & Night (ICR), extremeWDR (120dB), Hard-coated window, DIS, Handover, AI-based WiseStream, WiseNR Ⅱ (using AI engine), Dynamic privacy mask, IVA events based on AI engine (Motion & Object detection, Line crossing, IVA area, Slip & Fall), Classified object types (Person/Face/Vehicle/License plate), Object attributes (Person: Gender/Top/Bottom clothing color/Bag, Face: Age/Gender/Mask/Glasses, Vehicle: type/color), BestShot, Analytics events (Defocus, Motion, Tampering, Fog, Audio), AI-based business intelligence (People/Vehicle/Crowd counting, Queue management, Heatmap), Secure element with FIPS 140-3 level3, Built-in microSD card slot (Up to 1TB), IP66/IP67, IK10, NEMA 4X, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9), Operating temperature: -40°C~+60°C(-40°F~+140°F), Power: PoE, Metal shielded RJ-45.
Key Specifications
| Max video resolution | 3840x2160 (8MP) |
| Max frames per second | 30fps/25fps(60Hz/50Hz) |
| Image sensor | 1/2.8" CMOS |
| Focal length / lens | 3.0 mm |
| Horizontal field of view | 108 |
| Wide dynamic range | 120 dB |
| Min illumination (color) | 0.1 lux |
| Built-in IR | 25m(82.02ft) |
| Onboard AI (object classes) | Person, Face, Vehicle, License plate |
| Power | PoE(IEEE802.3af, Class3) · Max. 9.4W, typical 7.3W |
| IP / vandal rating | IP66, IP67, NEMA 4X, IK10 |
| Operating temperature | -40°C~+60°C(-40°F~+140°F) |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Hanwha Vision XNO-A9014R?
- 8MP 3840x2160 video at up to 30fps/25fps
- 3.0 mm lens and a 108 horizontal view
- 120 dB WDR for bright and backlit scenes
- Built-in IR: 25m(82.02ft)
- AI object classification: Person, Face, Vehicle, License plate
- Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
- IP66, IP67, NEMA 4X, IK10 rated housing
- Power: PoE(IEEE802.3af, Class3)
Clear Video Day and Night
The XNO-A9014R captures color video down to 0.1 lux; its built-in IR reaches 25m(82.02ft); 120 dB WDR keeps detail in scenes with bright and dark areas.
Coverage and Resolution
A 3.0 mm lens covers a 108 horizontal field of view; resolution is up to 3840x2160 at 30fps/25fps(60Hz/50Hz).
AI Analytics on the Edge
The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear); business intelligence features include People counting, Queue management, Heatmap, Vehicle counting, Crowd counting.
Built-In Cybersecurity
Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645); IEEE 802.1X network authentication.
Installation and Integration
Key installation details: power input: PoE(IEEE802.3af, Class3) (Max. 9.4W, typical 7.3W); operating temperature: -40°C~+60°C(-40°F~+140°F); ratings: IP66, IP67, NEMA 4X, IK10; edge storage: Max. 1TB x 1slot; compression: H.265/H.264: Main/Baseline/High, MJPEG.
Typical Applications
- Parking lots
- Building perimeters
- Loading docks
- Driveways and gates
Compatible Accessories
Compatible accessories for the Hanwha Vision XNO-A9014R. Linked items are available at Affinitech Store; contact us for the others:
- Hanwha Vision SBP-160HMW1 White Cap Adapter
- Hanwha Vision SBP-140CMB Ceiling Mount
- Hanwha Vision SBP-180CMB Ceiling Mount Base
- Hanwha Vision SBP-180CMS Ceiling Mount
- Hanwha Vision SBP-150CMP Ceiling Mount
- Hanwha Vision SBP-300CMP Ceiling Mount
- Hanwha Vision SBP-900CMP Ceiling Mount
- Hanwha Vision SBP-C15H Thread Converter
- Hanwha Vision SBP-C15P Ceiling Mount Coupler
- Hanwha Vision SBP-150CMI Ceiling Mount
- Hanwha Vision SBP-300CMI White Pendant Mount
- Hanwha Vision SBP-300CMW1 Ceiling Mount
- Hanwha Vision SBP-900CMW Ceiling Mount
- Hanwha Vision SBP-300CMTW Telescopic Ceiling Mount
- Hanwha Vision SBP-300CMTS Telescopic Ceiling Mount
- Hanwha Vision SBP-160WMW1 White Wall Mount
- Hanwha Vision SBP-200WMW Wall and Pole Mount
- Hanwha Vision SBP-250WMW Wall and Pole Mount
- Hanwha Vision SBP-300WMW Gooseneck Wall Mount
- Hanwha Vision SBP-400WMW Wall and Pole Mount
- Hanwha Vision SBP-115PFA Wall and Pole Adaptor
- Hanwha Vision SBD-140PMW Pole Mount Base
- Hanwha Vision SBP-156KMW Corner Mount Adapter
- Hanwha Vision SBP-156LMW1 Telescopic Parapet Mount
- Hanwha Vision SBP-050NBW Cabinet
- Hanwha Vision SBP-150NBW Cabinet
- Hanwha Vision SBP-060BA Conduit Hole Adaptor
- Hanwha Vision SPP-C7400 Audio and Alarm Cable
- Hanwha Vision SPP-C45W RJ45 Cable
- Hanwha Vision SPM-4210 Network I/O Box
Compare Hanwha Vision XNO-A Series Cameras
| Model | Max resolution | Type | Best for |
|---|---|---|---|
| Hanwha Vision XNO-A9014R (this camera) | 3840x2160 | 8MP IR Bullet AI Camera | Parking lots, perimeters and loading docks |
| Hanwha Vision XNO-A9084R | 8MP | 8MP AI IR Bullet IP Camera, 2.1x Zoom,... | Parking lots, perimeters and loading docks |
Explore More
- Browse Bullet Cameras at Affinitech Store
- Browse Outdoor Cameras at Affinitech Store
- Browse IR Cameras at Affinitech Store
- Browse AI-Powered Cameras at Affinitech Store
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision XNO-A9014R
What resolution does the Hanwha Vision XNO-A9014R capture?
Up to 3840x2160 (8MP) at 30fps/25fps(60Hz/50Hz).
What lens does it use?
3.0 mm; horizontal field of view 108.
Does it see in the dark?
Yes. Built-in IR reaches 25m(82.02ft).
Can it be installed outdoors?
Yes. It is rated IP66, IP67, NEMA 4X, IK10 and operates from -40°C~+60°C(-40°F~+140°F).
What can the AI analytics detect?
It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear).
How is it powered?
PoE(IEEE802.3af, Class3) (Max. 9.4W, typical 7.3W).
What video compression does it support?
H.265/H.264: Main/Baseline/High, MJPEG.
Does it support onboard storage?
Yes: Max. 1TB x 1slot.
What cybersecurity features are built in?
Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645).
Is it ONVIF compliant?
Yes, ONVIF Profile S, G, T, M.
Detailed Specifications
Hanwha Vision XNO-A9014R Specifications
| Specification | Details |
|---|---|
| Video | |
| Imaging Device - Size | 1/2.8" |
| Imaging Device - Type | CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate - H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate - MJPEG | 30fps(@8MP Max. 5fps) |
| Min. Illumination (Lux) - Color(1/30sec, 30IRE) | 0.1 |
| Min. Illumination (Lux) - BW(1/30sec, 30IRE) | 0.01 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
| Lens | |
| Focal Length (mm) | 3.0 |
| Max Aperture Ratio (F number) - Wide | 1.6 |
| Max Aperture Ratio (F number) - Tele | 1.6 |
| Angular Field of View - Horizontal | 108 |
| Angular Field of View - Vertical | 59 |
| Angular Field of View - Diagonal | 127 |
| Min. Object Distance | 0.4m(1.31ft) |
| Focus Control | Manual |
| Lens Type | Fixed iris |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection - Quantity | 8ea |
| Motion Detection - Shape | 8point Polygonal zones |
| Privacy Masking - Quantity | 32ea |
| Privacy Masking - Shape | 8point Polygonal zones |
| Privacy Masking - Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Privacy Masking - Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter - Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter - Speed Range | 2~1/30,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Alarm Interface - In/Out | 2 configurable I/O ports |
| Alarm Interface - Others | Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED |
| Light Viewable Length - IR | 25m(82.02ft) |
| IR Wavelength | 850nm |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes - Person | Upper/Lower clothes color, Gender, Bag |
| Attributes - Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Attributes - Face | Age, Gender, Face mask, Glasses |
| Similarity Search | Support |
| Thumbnail | BestShot |
| Analytics Events - Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Business Intelligence - Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps) |
| Smart Codec | Manual, WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming - Unicast | Up to 20 users |
| Streaming - Multicast | Support |
| Streaming - Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, PIM-SM, SMTP(StartTLS), Syslog |
| Application Programming Interface - ONVIF | S, G, T, M |
| Application Programming Interface - Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| Memory - RAM | 4GB |
| Memory - Flash | 8GB eMMC |
| Edge Storage - Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) - Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition - Temperature | -40°C~+60°C(-40°F~+140°F) |
| Operating Condition - Humidity | 0~100% RH(condensing) |
| Operating Condition - Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C |
| Storage Condition - Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition - Humidity | 0~90% RH(non-condensing) |
| EPA(Effective Projected Area) | 0.023m2 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption - PoE | Max. 9.4W, typical 7.3W |
| WisePower | Power monitoring, Eco mode |
| Mechanical | |
| Color | White |
| Material | Aluminum, Hard-coated dome |
| Material Management - Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| Material Management - Recycle Rate | 1.5% |
| RAL Code | RAL9003 |
| Product Dimensions | ø93.4x276.6mm(3.68x10.89") |
| Product Weight | 1420g(3.13lb) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| AI Detection Distance | |
| Person(1.8m/5.9ft) - Wide | up to 35m(113ft) |
| Vehicle(1.45m/4.8ft) - Wide | up to 46m(150ft) |
Related Products
Related Products
Hanwha Vision XNO-A9084R 8MP IR Bullet AI Camera
Brand: Hanwha Vision America

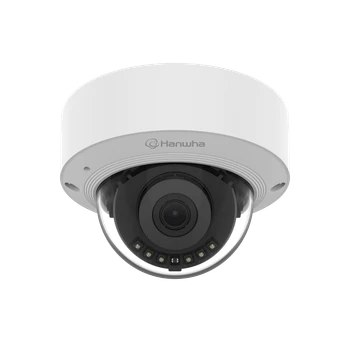

Hanwha Vision XND-A9014R 8MP IR Indoor Dome AI Camera
Brand: Hanwha Vision America
Hanwha Vision XNO-A6014R 2MP IR Bullet AI Camera
Brand: Hanwha Vision America

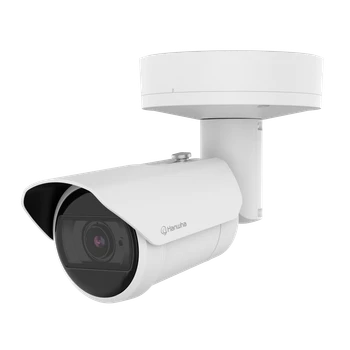

Hanwha Vision XNO-A8084R 5MP IR Bullet AI Camera
