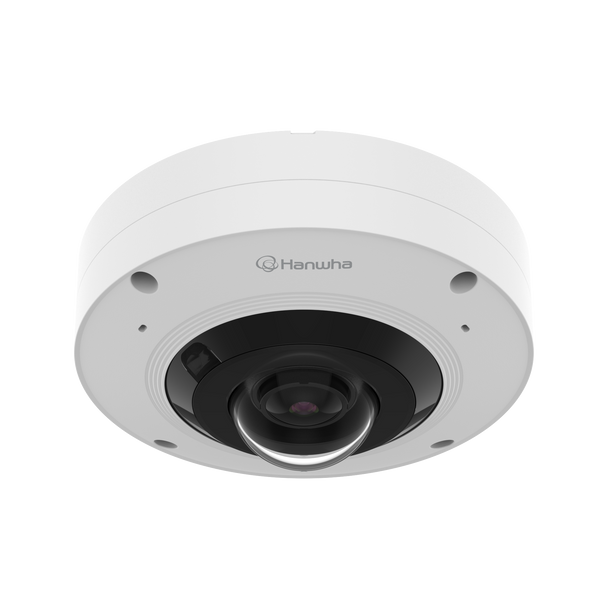

Hanwha Vision XNF-A9014RV 12MP AI IR Fisheye Camera

Brand: Hanwha Vision America
SKU:
XNF-A9014RV
(No reviews yet) Write a Review
  • Hanwha Vision XNF-A9014RV 12MP AI IR Fisheye Camera
  • Hanwha Vision XNF-A9014RV 12MP AI IR Fisheye Camera
Price: $1,029.00
Hanwha Logo
Hanwha Platinum Partner
Cloud Icon
Cloud Connected
Warranty Icon
5 Year Mfg. Warranty

Description

Hanwha Vision XNF-A9014RV 12MP AI IR Fisheye Camera

The Hanwha Vision XNF-A9014RV is a high-performance 12MP AI-powered IR fisheye network camera engineered for enterprise surveillance applications requiring panoramic coverage, intelligent analytics, and advanced image processing. Featuring a 1/1.6" CMOS sensor and 185° field of view, this camera delivers comprehensive area monitoring with minimal blind spots.

Powered by Hanwha’s Wisenet 9 chipset with dual NPUs, the XNF-A9014RV provides AI-based image enhancement, object detection, and business intelligence capabilities including people counting, vehicle counting, queue management, heat mapping, and crowd analytics. With IR illumination up to 20 meters and IP66/IK10-rated durability, it is ideal for both indoor and outdoor security deployments.

Advanced AI analytics support person, face, vehicle, and license plate detection with BestShot thumbnail generation and color attribute recognition. This intelligent camera is ideal for retail, transportation, commercial buildings, healthcare, education, and public safety applications.

Key Features

  • 12MP ultra-high resolution fisheye camera
  • 185° panoramic field of view
  • AI-powered analytics and business intelligence
  • Dual NPU AI image enhancement
  • 20m IR night vision
  • Object detection and intelligent video analytics
  • People, vehicle, and crowd counting
  • Queue management and heatmap analytics
  • IP66 and IK10 rated rugged design
  • WiseStream AI compression support
  • Supports ONVIF S/G/T/M and SUNAPI
View AllClose

Detailed Specifications

Technical Specifications

Category Specification Details
VideoImaging Device1/1.6" CMOS
Max Resolution3584 × 2688
Supported ResolutionsUp to 29 selectable resolutions from 3584×2688 to 160×160
Max Frame RateH.265/H.264: 30fps / 25fps (60Hz/50Hz), MJPEG: 5fps
PoE Mode Frame RateMax 20fps
Min Illumination (Color)0.02 Lux
Min Illumination (B/W)0.001 Lux
Day/NightAuto (ICR)
LensFocal Length1.76mm
ApertureF1.8
Horizontal FOV185°
Vertical FOV185°
Diagonal FOV185°
Minimum Object Distance0.5m (1.64ft)
Image FeaturesWDR120dB
Backlight CompensationBLC, HLC, WDR, SSDR
Noise ReductionWiseNR II, SSNR V
Image StabilizationSupported
DefogSupported
Digital PTZSupported
Video RotationFlip, Mirror
Digital RotationSupported
DetectionMotion Detection8 Zones (8-point polygonal)
Privacy Masking32 Zones (8-point polygonal)
Alarm I/O2 Configurable I/O Ports
Alarm TriggersAnalytics, Network Disconnect, Alarm Input, Tampering, Storage Disruption
Alarm ActionsEmail, FTP/SFTP, SD Recording, Alarm Output, HTTP/HTTPS, MQTT
AudioAudio InputSelectable Mic In / Line In, Built-in 3 Mics
Audio OutputLine Out
Audio CompressionOpus, G.711, G.726, AAC-LC
2-Way AudioSupported
Audio DetectionSupported
IRLight TypeIR LED
IR RangeUp to 20m (65.6ft)
IR Wavelength850nm
WiseIRSupported
Low Light PerformanceEnhanced with AI Engine
AnalyticsObject DetectionPerson, Face, Vehicle, License Plate
AttributesClothing Color, Vehicle Type, Vehicle Color
BestShotThumbnail Generation
AI EventsLine Crossing, Direction, Loitering, Intrusion, Enter/Exit
Business IntelligencePeople Counting, Queue Management, Heatmap
Vehicle AnalyticsVehicle Counting, Crowd Counting
NetworkEthernetRJ-45 10/100BASE-T
CompressionH.265 / H.264 / MJPEG
Smart CodecWiseStream AI
Bitrate ControlCBR / VBR
StreamingUnicast up to 20 users, Multicast supported
Multi StreamingUp to 5 Profiles
ProtocolsIPv4, IPv6, ONVIF S/G/T/M, SUNAPI, MQTT, HTTPS
SecurityFirmware SecurityEncrypted Firmware, Secure Boot, Signed Firmware
User AuthenticationDigest Authentication, Brute Force Protection
Network AuthenticationIEEE 802.1X
Secure CommunicationHTTPS, WSS, SRTP, MACsec
Access ControlIP & MAC Based Access
Storage SecurityAES-256 Encryption
CertificatesFIPS 140-3 Level 3, CC EAL6+
GeneralSoCWisenet 9
AI ProcessorDual NPU
RAM4GB
Flash8GB eMMC
StorageMicroSD/SDHC/SDXC up to 1TB
Direct Cloud ConnectionSupported
EnvironmentalOperating Temperature-40°C to +55°C
Operating Humidity0–100% RH
Storage Temperature-50°C to +60°C
Storage Humidity0–95% RH
ProtectionIP66, IK10, NEMA 4X
ElectricalPower InputPoE / PoE+ / 12VDC
Power Consumption (PoE)Max 19.8W
Power Consumption (12VDC)Max 20W
Power RedundancyFailover Support
MechanicalColorWhite
MaterialAluminum, Hard-coated Dome
DimensionsØ160 × 75mm
Weight1020g (2.25 lb)
DORIDetect43.4m (142.2ft)
Observe17.3m (56.9ft)
Recognize8.7m (28.4ft)
Identify4.3m (14.2ft)
