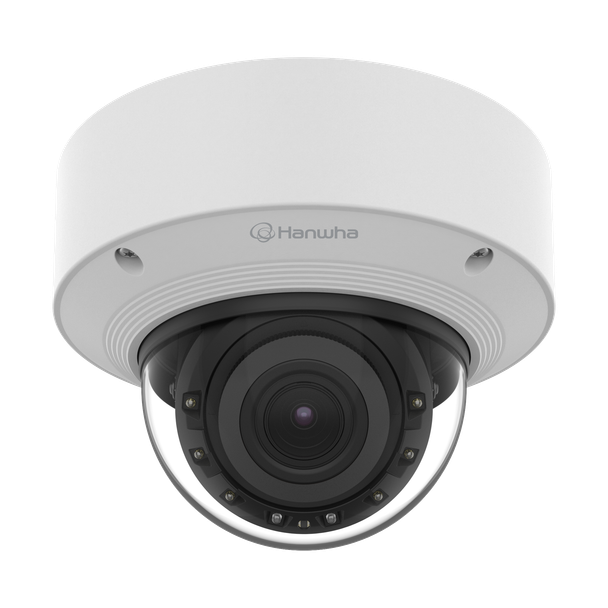

Hanwha Vision XND-A6084RV 2MP IR Indoor Dome AI Camera

Name: Hanwha Vision XND-A6084RV 2MP IR Indoor Dome AI Camera
Brand: Hanwha Vision America
SKU: XND-A6084RV
Price: 682.5 USD
Availability: InStock

Description
Detailed Specifications

Description

Hanwha Vision XND-A6084RV – 2MP IR Indoor Dome AI Camera

The Hanwha Vision XND-A6084RV is a 2MP IR Indoor Dome AI camera built for hallways, stairwells and dark rooms. Powered by WN9, Indoor Network AI IR Dome Camera, 2MP resolution @ 60FPS, 2.8~12mm (4.3x), (120°~27°) motorized varifocal lens, H.265/H.264/MJPEG codec, IR viewable length 50m (164.04ft), USB-C port for easy installation, Selectable microphone input (mic in/line in), Day & Night (ICR), extremeWDR (150dB), Hard-coated dome bubble, DIS with built-in gyro sensor, Handover, AI-based WiseStream, WiseNR Ⅱ (using AI engine), Dynamic privacy mask, IVA events based on AI engine (Motion & Object detection, Line crossing, IVA area, Slip & Fall), Classified object types (Person/Face/Vehicle/License plate), Object attributes (Person: Gender/Top/Bottom clothing color/Bag, Face: Age/Gender/Mask/Glasses, Vehicle: type/color), BestShot, Analytics events (Defocus, Motion, Tampering, Fog, Audio & Shock detection), AI-based business intelligence (People/Vehicle/Crowd counting, Queue management, Heatmap), Secure element with FIPS 140-3 level3, Built-in microSD card slot (Up to 1TB), IP52, IK10, Operating temp: -10°C~+50°C (+14°F~+122°F), Power: PoE, Metal shielded RJ-45. OnCloud Compatible.

Key Specifications

Max video resolution	1920x1080 (2MP)
Max frames per second	60fps/50fps(60Hz/50Hz)
Image sensor	1/2.8" CMOS
Focal length / lens	2.8~12 mm · 4.3x optical zoom
Horizontal field of view	120°~27°
Wide dynamic range	150 dB
Min illumination (color)	0.02 lux
Built-in IR	WiseIR 50m(164.04ft)
Onboard AI (object classes)	Person, Face, Vehicle, License plate
Power	PoE(IEEE802.3af, Class3) · Max. 10.2W, typical 5.0W
IP / vandal rating	IK10
Operating temperature	-10°C~+50°C(+14°F~+122°F)

Full specifications are listed in the Detailed Specifications tab.

Why Choose the Hanwha Vision XND-A6084RV?

2MP 1920x1080 video at up to 60fps/50fps
2.8~12 mm lens with 4.3x optical zoom and a 120°~27° horizontal view
150 dB WDR for bright and backlit scenes
Built-in IR: WiseIR 50m(164.04ft)
AI object classification: Person, Face, Vehicle, License plate
Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
IK10 rated housing
Power: PoE(IEEE802.3af, Class3)

Clear Video Day and Night

The XND-A6084RV captures color video down to 0.02 lux; its built-in IR reaches WiseIR 50m(164.04ft); 150 dB WDR keeps detail in scenes with bright and dark areas.

Coverage and Resolution

A 2.8~12 mm lens with 4.3x optical zoom covers a 120°~27° horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 3.0m(9.84ft); resolution is up to 1920x1080 at 60fps/50fps(60Hz/50Hz).

AI Analytics on the Edge

The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear); business intelligence features include People counting, Queue management, Heatmap, Vehicle counting, Crowd counting.

Built-In Cybersecurity

Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645); IEEE 802.1X network authentication.

Installation and Integration

Key installation details: power input: PoE(IEEE802.3af, Class3) (Max. 10.2W, typical 5.0W); operating temperature: -10°C~+50°C(+14°F~+122°F); ratings: IK10; edge storage: Max. 1TB x 1slot; compression: H.265: Main, H.264: Main/Baseline/High, MJPEG.

Typical Applications

Hallways
Stairwells
Dark rooms and back offices

Compatible Accessories

Compatible accessories for the Hanwha Vision XND-A6084RV. Linked items are available at Affinitech Store; contact us for the others:

Hanwha Vision SBP-160HMW1 White Cap Adapter
Hanwha Vision SBP-140CMB Ceiling Mount
Hanwha Vision SBP-180CMB Ceiling Mount Base
Hanwha Vision SBP-180CMS Ceiling Mount
Hanwha Vision SBP-150CMP Ceiling Mount
Hanwha Vision SBP-300CMP Ceiling Mount
Hanwha Vision SBP-900CMP Ceiling Mount
Hanwha Vision SBP-C15H Thread Converter
Hanwha Vision SBP-C15NP Thread Converter
Hanwha Vision SBP-C35H Pipe Converter
Hanwha Vision SBP-C15P Ceiling Mount Coupler
Hanwha Vision SBP-150CMI Ceiling Mount
Hanwha Vision SBP-300CMI White Pendant Mount
Hanwha Vision SBP-300CMW1 Ceiling Mount
Hanwha Vision SBP-900CMW Ceiling Mount
Hanwha Vision SBP-300CMTW Telescopic Ceiling Mount
Hanwha Vision SBP-300CMTS Telescopic Ceiling Mount
Hanwha Vision SBP-140CMT Tile Grid Ceiling Mount
Hanwha Vision SHD-1600FW In-Ceiling Mount
Hanwha Vision SBP-160WMW1 White Wall Mount
Hanwha Vision SBP-250WMW Wall and Pole Mount
Hanwha Vision SBP-400WMW Wall and Pole Mount
Hanwha Vision SBP-115PFA Wall and Pole Adaptor
Hanwha Vision SBP-160TMW1 Tilted Wall Mount
Hanwha Vision SBV-180BW Back Box
Hanwha Vision SBV-180WW Back Box
Hanwha Vision SBP-150PMW Pole Mount
Hanwha Vision SBD-180PMW Pole Mount Base
Hanwha Vision SBP-156KMW Corner Mount Adapter
Hanwha Vision SBP-156LMW1 Telescopic Parapet Mount
Hanwha Vision SBP-150NBW Cabinet
Hanwha Vision SPB-VAN88W Tinted Bubble
Hanwha Vision SPP-C7400 Audio and Alarm Cable
Hanwha Vision SPP-C45W RJ45 Cable

Explore More

Browse Dome Cameras at Affinitech Store
Browse IR Cameras at Affinitech Store
Browse AI-Powered Cameras at Affinitech Store
Shop all Hanwha Vision products at Affinitech Store

Frequently Asked Questions About Hanwha Vision XND-A6084RV

What resolution does the Hanwha Vision XND-A6084RV capture?

Up to 1920x1080 (2MP) at 60fps/50fps(60Hz/50Hz).

What lens does it use?

2.8~12 mm with 4.3x optical zoom; horizontal field of view 120°~27°.

Does it see in the dark?

Yes. Built-in IR reaches WiseIR 50m(164.04ft).

What protection ratings does it have?

It is rated IK10 and operates from -10°C~+50°C(+14°F~+122°F).

What can the AI analytics detect?

It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear).

How is it powered?

PoE(IEEE802.3af, Class3) (Max. 10.2W, typical 5.0W).

What video compression does it support?

H.265: Main, H.264: Main/Baseline/High, MJPEG.

Does it support onboard storage?

Yes: Max. 1TB x 1slot.

What cybersecurity features are built in?

Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645).

Is it ONVIF compliant?

Yes, ONVIF Profile S, G, T, M.

View AllClose

Detailed Specifications

Hanwha Vision XND-A6084RV Specifications

Specification	Details
Video
Imaging Device - Size	1/2.8"
Imaging Device - Type	CMOS
Resolution	1920x1080, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. Framerate - H.265/H.264	60fps/50fps(60Hz/50Hz)
Max. Framerate - MJPEG	30fps
Min. Illumination (Lux) - Color(1/30sec, 30IRE)	0.02
Min. Illumination (Lux) - BW(1/30sec, 30IRE)	0.002
Video Out	USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.
Lens
Focal Length (mm)	2.8~12
Zoom Ratio - Optical	4.3x
Max Aperture Ratio (F number) - Wide	1.4
Max Aperture Ratio (F number) - Tele	3.6
Angular Field of View - Horizontal	120°~27°
Angular Field of View - Vertical	63°~15°
Angular Field of View - Diagonal	143°~32°
Min. Object Distance	0.5m(1.64ft)
Focus Control	Simple focus, Manual
Lens Type	P iris(IR corrected)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range - Pan	0°~360°
Pan / Tilt / Rotate Range - Tilt	0°~75°
Pan / Tilt / Rotate Range - Rotate	0°~355°
Operational
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)	150
Digital Noise Reduction	WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization	Support
Defog	Support
Motion Detection - Quantity	8ea
Motion Detection - Shape	8point Polygonal zones
Privacy Masking - Quantity	32ea
Privacy Masking - Shape	8point Polygonal zones
Privacy Masking - Color / Option	Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Privacy Masking - Dynamic Privacy Masking: Color / Option	Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain Control	Off, Max gain, Manual
White Balance	ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDC	Support(Fill/stretch mode)
Electronic Shutter - Mode	Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Electronic Shutter - Speed Range	2~1/40,000sec
Video Rotation	Flip, Mirror, Hallway view(90°/270°)
Alarm Interface - In/Out	2 configurable I/O ports
Alarm Interface - Others	Support extra alarm I/O via optional I/O box
Alarm Triggers	Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption
Alarm Events When Alarm Trigger Occurred	File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In	Selectable(mic in/line in)
Audio Out	Line out
Light Type	IR LED
Light Viewable Length - IR	WiseIR 50m(164.04ft)
IR Wavelength	850nm
Analytics
Classified Object Type	Person, Face, Vehicle, License plate
Attributes - Person	Upper/Lower clothes color, Gender, Bag
Attributes - Vehicle	Type(car, bus, truck, motorcycle, bicycle), Color
Attributes - Face	Age, Gender, Face mask, Glasses
Similarity Search	Support
Thumbnail	BestShot
Analytics Events - Based on AI Engine	Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
Analytics Events - Normal	Defocus detection, Tampering, Audio detection, Shock detection
Business Intelligence - Based on AI Engine	People counting, Queue management, Heatmap, Vehicle counting, Crowd counting
Network
Ethernet	Metal shielded RJ-45(10/100BASE-T)
Video Compression	H.265: Main, H.264: Main/Baseline/High, MJPEG
Audio Compression	G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps)
Smart Codec	WiseStream(Based on AI engine)
Bitrate Control	H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming - Unicast	Up to 20 users
Streaming - Multicast	Support
Streaming - Multiple Streaming	Up to 5 profiles, 3 virtual channel support
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog
Application Programming Interface - ONVIF	S, G, T, M
Application Programming Interface - Others	SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection	Support
Security
OS / Firmware Protect	Encrypted firmware, Secure boot, Signed firmware
User authentication	Digest authentication, Prevent brute-force attack
Network authentication	IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication	HTTPS, WSS(WebSocket Secure), SRTP
Access Control	IP-based access control, MAC-based access control, Auto logout
Data Protect	Encryption credentials, Encrypt compress for live recording file export
Audit	Access / System / Event Log management
Device ID	Device certificate(Hanwha Vision Root CA)
Secure Storage	SDcard partition encrypt(AES-256), Secure element
Supply Chain Security	SBOM
Security Certificate	Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
General
SoC - Type	Wisenet 9
SoC - Dual NPU	Support
Memory - RAM	4GB
Memory - Flash	8GB eMMC
Edge Storage - Micro SD/SDHC/SDXC	Max. 1TB x 1slot
Edge Storage(OnCloud) - Micro SD/SDHC/SDXC	Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
Operating Condition - Temperature	-10°C~+50°C(+14°F~+122°F)
Operating Condition - Humidity	0~100% RH(condensing)
Operating Condition - Others	Humidity control with AIR vent
Storage Condition - Temperature	-50°C~+60°C(-58°F~+140°F)
Storage Condition - Humidity	0~90% RH(non-condensing)
EPA(Effective Projected Area)	0.02㎡
Input Voltage	PoE(IEEE802.3af, Class3)
Power Consumption - PoE	Max. 10.2W, typical 5.0W
WisePower	Power monitoring, Eco mode
Mechanical
Color	White
Material	Aluminum, PC(Polycarbonate), Hard-coated dome
Material Management - Declaration	RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
Material Management - Recycle Rate	Recycled plastic: 10.63%
RAL Code	RAL9003
Product Dimensions	ø160x118mm(6.30x4.65")
Product Weight	1,032g(2.27lb)
Compatible Conduit Hole	12.7mm(1/2")(M20)
Compatible Gang Box	Single, Double, 4" Octagon, Square
Certifications & Standards
EMC	FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835
Safety	UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471
Environment	IEC/EN 63000, IEC 60529 IP52, IEC 60529 IP55, IEC 62262 IK10, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78
AI Detection Distance
Person(1.8m/5.9ft) - Wide	up to 32m(105ft)
Person(1.8m/5.9ft) - Tele	up to 149m(488ft)
Vehicle(1.45m/4.8ft) - Wide	up to 42m(139ft)
Vehicle(1.45m/4.8ft) - Tele	up to 197m(645ft)
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) - Wide	30.0m(98.43ft)
Detect (25PPM/ 8PPF) - Tele	138.5m(454.28ft)
Observe (63PPM/ 19PPF) - Wide	12.0m(39.37ft)
Observe (63PPM/ 19PPF) - Tele	55.4m(181.71ft)
Recognize (125PPM/ 38PPF) - Wide	6.0m(19.69ft)
Recognize (125PPM/ 38PPF) - Tele	27.7m(90.86ft)
Identify (250PPM/ 76PPF) - Wide	3.0m(9.84ft)
Identify (250PPM/ 76PPF) - Tele	13.8m(45.43ft)
