Hanwha Vision XNB-A9004 8MP Box AI Camera
Description
Hanwha Vision XNB-A9004 – 8MP Box AI Camera
The Hanwha Vision XNB-A9004 is an 8MP Box AI camera built for lobbies, entrances and custom-lens installs. Powered by WN9, Box Camera, 8MP resolution @ 30FPS, H.265/H.264/MJPEG codec, USB-C port for easy installation, Selectable microphone input (mic in/line in/built-in), Day & Night (ICR), extremeWDR (120dB), DIS with built-in gyro sensor, Handover, AI-based WiseStream, WiseNR Ⅱ (using AI engine), Dynamic privacy mask, IVA events based on AI engine (Motion & Object detection, Line crossing, IVA area, Slip & Fall, Sound classification), Classified object types (Person/Face/Vehicle/License plate), Object attributes (Person: Gender/Top/Bottom clothing color/Bag, Face: Age/Gender/Mask/Glasses, Vehicle: type/color), BestShot, Analytics events (Defocus, Motion, Tampering, Fog, Audio & Shock detection), AI-based business intelligence (People/Vehicle/Crowd counting, Queue management, Heatmap), Secure element with FIPS 140-3 level3, Built-in microSD card slots (Up to 1TBx2), Operating temperature: -10°C~+55°C (14°F~+131°F), Power: PoE, 12VDC, Metal shielded RJ-45. OnCloud Compatible.
Key Specifications
| Max video resolution | 3840x2160 (8MP) |
| Max frames per second | 30fps/25fps(60Hz/50Hz) |
| Image sensor | 1/1.8" CMOS |
| Wide dynamic range | 120 dB |
| Min illumination (color) | 0.04 lux |
| Onboard AI (object classes) | Person, Face, Vehicle, License plate |
| Power | PoE(IEEE802.3af, Class3), 12VDC · Max. 10.7W, typical 9.5W |
| Operating temperature | -10°C~+55°C(+14°F~+131°F) |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Hanwha Vision XNB-A9004?
- 8MP 3840x2160 video at up to 30fps/25fps
- 120 dB WDR for bright and backlit scenes
- AI object classification: Person, Face, Vehicle, License plate
- Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)
- Power: PoE(IEEE802.3af, Class3), 12VDC
Clear Video Day and Night
The XNB-A9004 captures color video down to 0.04 lux; 120 dB WDR keeps detail in scenes with bright and dark areas.
Coverage and Resolution
resolution is up to 3840x2160 at 30fps/25fps(60Hz/50Hz).
AI Analytics on the Edge
The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear); business intelligence features include People counting, Queue management, Heatmap, Vehicle counting, Crowd counting.
Built-In Cybersecurity
Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1); IEEE 802.1X network authentication.
Installation and Integration
Key installation details: power input: PoE(IEEE802.3af, Class3), 12VDC (Max. 10.7W, typical 9.5W); operating temperature: -10°C~+55°C(+14°F~+131°F); edge storage: Max. 1TB x 2slot(Total 2TB); compression: H.265/H.264: Main/Baseline/High, MJPEG.
Typical Applications
- Lobbies
- Entrances
- Custom-lens installations
Explore More
- Browse Box Cameras at Affinitech Store
- Browse AI-Powered Cameras at Affinitech Store
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision XNB-A9004
What resolution does the Hanwha Vision XNB-A9004 capture?
Up to 3840x2160 (8MP) at 30fps/25fps(60Hz/50Hz).
What is the operating temperature?
-10°C~+55°C(+14°F~+131°F).
What can the AI analytics detect?
It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear).
How is it powered?
PoE(IEEE802.3af, Class3), 12VDC (Max. 10.7W, typical 9.5W).
What video compression does it support?
H.265/H.264: Main/Baseline/High, MJPEG.
Does it support onboard storage?
Yes: Max. 1TB x 2slot(Total 2TB).
What cybersecurity features are built in?
Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1).
Is it ONVIF compliant?
Yes, ONVIF Profile S, G, T, M.
Detailed Specifications
Hanwha Vision XNB-A9004 Specifications
| Specification | Details |
|---|---|
| Video | |
| Imaging Device - Size | 1/1.8" |
| Imaging Device - Type | CMOS |
| Resolution | 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180 |
| Max. Framerate - H.265/H.264 | 30fps/25fps(60Hz/50Hz) |
| Max. Framerate - MJPEG | 30fps(@8MP Max. 5fps) |
| Min. Illumination (Lux) - Color(1/30sec, 30IRE) | 0.04 |
| Min. Illumination (Lux) - BW(1/30sec, 30IRE) | 0.004 |
| Video Out | USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
| Lens | |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris(IR corrected), Manual, I-CS |
| Mount Type | C mount, CS mount |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection - Quantity | 8ea |
| Motion Detection - Shape | 8point Polygonal zones |
| Privacy Masking - Quantity | 32ea |
| Privacy Masking - Shape | 8point Polygonal zones |
| Privacy Masking - Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Privacy Masking - Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter - Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter - Speed Range | 2~1/30,000sec |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm Interface - In/Out | 2 configurable I/O ports |
| Alarm Interface - Others | Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Selectable(mic in/line in), Built-in mic |
| Audio Out | Line out |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes - Person | Upper/Lower clothes color, Gender, Bag |
| Attributes - Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Attributes - Face | Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events - Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear) |
| Analytics Events - Normal | Defocus detection, Tampering, Audio detection, Shock detection |
| Business Intelligence - Based on AI Engine | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 48kHz(64kbps) |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming - Unicast | Up to 20 users |
| Streaming - Multicast | Support |
| Streaming - Multiple Streaming | Up to 5 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS), Syslog |
| Application Programming Interface - ONVIF | S, G, T, M |
| Application Programming Interface - Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP, 802.1AE(MACsec) |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1) |
| General | |
| SoC - Type | Wisenet 9 |
| SoC - Dual NPU | Support |
| Memory - RAM | 4GB |
| Memory - Flash | 8GB eMMC |
| Edge Storage - Micro SD/SDHC/SDXC | Max. 1TB x 2slot(Total 2TB) |
| Edge Storage(OnCloud) - Micro SD/SDHC/SDXC | Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition - Temperature | -10°C~+55°C(+14°F~+131°F) |
| Operating Condition - Humidity | 0~95% RH(non-condensing) |
| Storage Condition - Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition - Humidity | 0~90% RH(non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption - PoE | Max. 10.7W, typical 9.5W |
| Power Consumption - 12VDC | Max. 9.9W, typical 8.7W |
| WisePower | Power monitoring, Eco mode |
| Power Redundance Failover | Support |
| Mechanical | |
| Color | Black |
| Material | Aluminum |
| Material Management - Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9005 |
| Product Dimensions | 81(W)x67(H)x165(D)mm(3.19x2.64x6.48") |
| Product Weight | 851g(1.88lb) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
Related Products
Related Products
Hanwha Vision XNB-A8004 5MP Box AI Camera
Brand: Hanwha Vision America
Hanwha Vision XNB-A6004 2MP Box AI Camera
Brand: Hanwha Vision America

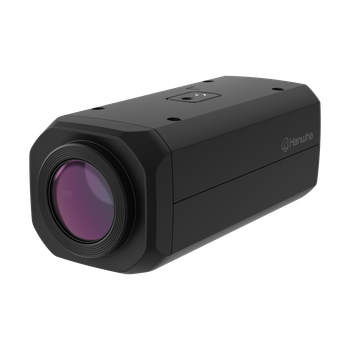

Hanwha Vision PNB-A9092 8MP Box AI camera
Brand: Hanwha Vision America

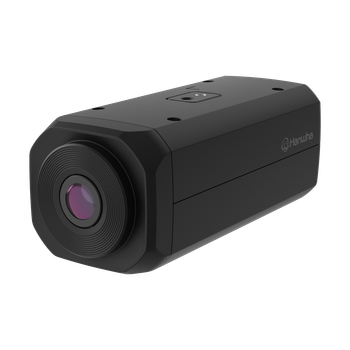

Hanwha Vision PNB-A9082 8MP Box AI camera
