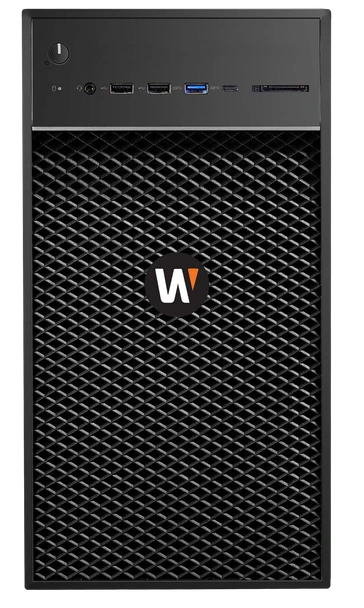

Hanwha Vision WRT-P-3105W1-8TB WAVE Recording Server (Windows IoT OS)

Brand: Hanwha Vision America
SKU:
WRT-P-3105W1-8TB
Condition:
New
(No reviews yet) Write a Review
  • Hanwha Vision WAVE Recording Server, WRT-P-3105W1-8TB
  • Hanwha Vision WRT-P-3105W1-8TB WAVE Recording Server (Windows IoT OS)
  • Hanwha Vision WAVE Recording Server, WRT-P-3104W-8TB
Price: $4,543.50

Description

Hanwha Vision WRT-P-3105W1-8TB WAVE Recording Server (Windows IoT OS)

The Hanwha Vision WRT-P-3105W1-8TB is a mini-tower WAVE Recording Server (Windows IoT OS) for professional video surveillance systems. It offers recording bandwidth Up to 170 Mbps.

Key Specifications

Recording bandwidth Up to 170 Mbps
Network / PoE ports Front: 2x USB 2.0, 1x USB 3.2 Gen2, 1x USB 3.2 Gen 2x2 Type-C entry , Rear: 2x USB 2.0 + 2x USB 3.2 Gen1 entry
Power 1 x 360W 80 Plus Platinum
Power consumption Maximum 360W
Operating temperature 50°F to 95°F (10°C to 35°C)

Full specifications are listed in the Detailed Specifications tab.

Related Products

Explore More

Frequently Asked Questions About Hanwha Vision WRT-P-3105W1-8TB

What is the Hanwha Vision WRT-P-3105W1-8TB?

The Hanwha Vision WRT-P-3105W1-8TB is a mini-tower WAVE Recording Server (Windows IoT OS) for professional video surveillance systems.

What are the recording bandwidth specifications of the Hanwha Vision WRT-P-3105W1-8TB?

Hanwha Vision lists recording bandwidth as Up to 170 Mbps.

What does Hanwha Vision list for the network / poe ports of the WRT-P-3105W1-8TB?

Front: 2x USB 2.0, 1x USB 3.2 Gen2, 1x USB 3.2 Gen 2x2 Type-C entry , Rear: 2x USB 2.0 + 2x USB 3.2 Gen1 entry.

What does Hanwha Vision list for the power of the WRT-P-3105W1-8TB?

1 x 360W 80 Plus Platinum.

Does the Hanwha Vision WRT-P-3105W1-8TB include WAVE licenses?

Hanwha Vision lists 4 Professional licenses with this recorder.

Where can I buy the Hanwha Vision WRT-P-3105W1-8TB?

Affinitech Store is an authorized Hanwha Vision reseller with fast US shipping and expert support.

View AllClose

Detailed Specifications

Hanwha Vision WRT-P-3105W1-8TB Specifications

SpecificationDetails
System
Included Licenses4 x Wisenet WAVE Professional License
Recording BandwidthUp to 170 Mbps
OS Drive Bays1 x 256GB M2 SD (Internal mounted)
Data Drive Bays3x3.5" SATA HDDs
Data StorageUp to 16TB raw storage
Network Interface2 x 1GbE RJ45 Ports(1 on-board & 1 PCIe NIC)
Processor1 x Intel Core Ultra 5 245 entry
Memory16GB DDR5
Operating SystemWindows 11 IoT Enterprise LTSC
IPMINot Supported
Video Outputs1x HDMI, 1x DP
USB PortsFront: 2x USB 2.0, 1x USB 3.2 Gen2, 1x USB 3.2 Gen 2x2 Type-C entry , Rear: 2x USB 2.0 + 2x USB 3.2 Gen1 entry
Other Ports1x 3.5mm universal audio
Keyboard & MouseIncluded
Sliding Rail KitNot Included
Mechanical
Form FactorTower
Color / MaterialBlack / Metal & Plastic
Dimensions (HxWxD)12.77”(324.30mm) x 6.06"(154mm) x 11.54"(293mm)
Weight13.47 lbs (6.11kg)
Electrical
Power Supply1 x 360W 80 Plus Platinum
Power Input100 ~ 240V AC
Power ConsumptionMaximum 360W
Environmental
Operating Temperature50°F to 95°F (10°C to 35°C)
Storage Temperature-40°F to 149°F (-40°C to 65°C)
Operating Humidity20% to 85% (non-condensing)
CertificationUL, cUL, CB, FCC, 80 Plus Platinum
