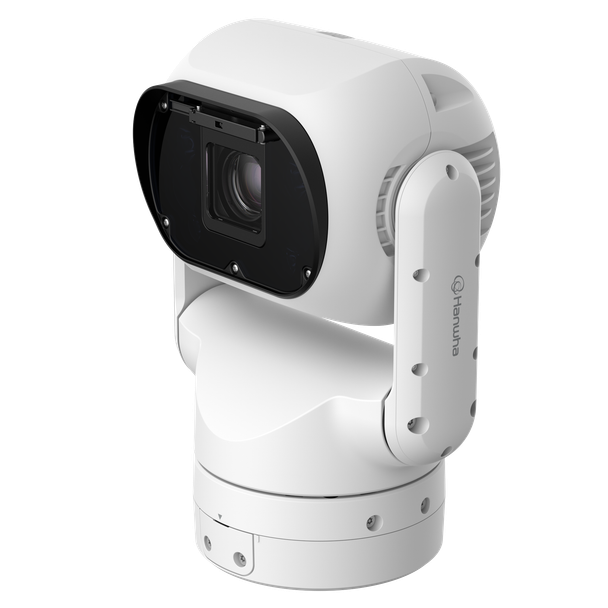

Hanwha Vision TNP-A6550RW 2MP AI IR, Ruggedized PTZ Positioning Camera
Description
Hanwha Vision TNP-A6550RW – 2MP AI IR, Ruggedized PTZ Positioning Camera
The Hanwha Vision TNP-A6550RW is a 2MP AI IR, Ruggedized PTZ Positioning camera built for campuses, parking lots and large open areas. Powered by WN9, AI Ruggedized PTZ Positioning Camera, 2MP resolution @ 30FPS, 4.75mm~261.4mm(55x) autofocus lens, Adaptive Wise IR (500m), extremeWDR 120dB, Day & Night (ICR), H.265/H.264/MJPEG codec, DIS with built-in gyro sensor, Handover, AI-based WiseStream, WiseNR Ⅱ (using AI engine), Dynamic privacy mask, IVA events based on AI engine: Motion & Object detection, Line crossing(Crossing/Direction), IVA area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Slip & Fall, Classified object types: (Person/Face/Vehicle/License plate), Object attributes (Person: Gender/Top/Bottom clothing color/Bag, Face: Age/Gender/Mask/Glasses, Vehicle: type/color), BestShot, Analytics events (Tampering, Shock detection, Audio detection), AI object auto-tracking (Person/Vehicle) with target lock tracking, Secure element with FIPS 140-3 level3, Built-in microSD card slot (Up to 1TB), IP66/IP68, IK10 (except window), NEMA 4X, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9), MIL-STD-810H ASTM B117, Operating temp: -50°C~+60°C (-58°F~+140°F), Wind load 257km/h (160mph), Power: HPoE (injector included), Metal shielded RJ-45, White.
Key Specifications
| Max video resolution | 1920x1080 (2MP) |
| Max frames per second | 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on) |
| Image sensor | 1/2.8" CMOS |
| Focal length / lens | 4.75~261.4 mm · 55 optical zoom |
| Horizontal field of view | 58.6˚(Wide)~1.23˚(Tele) |
| Pan range | 360° Endless |
| Wide dynamic range | 120 dB |
| Min illumination (color) | 0.02Lux(F1.6, 1/30sec) lux |
| Built-in IR | 600m(1,968.50ft) |
| Onboard AI (object classes) | Person, Face, Vehicle, License plate |
| Power | PoE++(IEEE802.3bt type4, Class8) · Max. 71W, typical 28.3W |
| IP / vandal rating | IP66, IP68, NEMA 4X, IK10 |
Full specifications are listed in the Detailed Specifications tab.
Why Choose the Hanwha Vision TNP-A6550RW?
- 2MP 1920x1080 video at up to 60fps/50fps
- 4.75~261.4 mm lens with 55 optical zoom and a 58.6˚(Wide)~1.23˚(Tele) horizontal view
- 120 dB WDR for bright and backlit scenes
- Built-in IR: 600m(1,968.50ft)
- AI object classification: Person, Face, Vehicle, License plate
- Built-in cybersecurity: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)
- IP66, IP68, NEMA 4X, IK10 rated housing
- Power: PoE++(IEEE802.3bt type4, Class8)
Clear Video Day and Night
The TNP-A6550RW captures color video down to 0.02Lux(F1.6, 1/30sec) lux; its built-in IR reaches 600m(1,968.50ft); 120 dB WDR keeps detail in scenes with bright and dark areas.
Coverage and Resolution
A 4.75~261.4 mm lens with 55 optical zoom covers a 58.6˚(Wide)~1.23˚(Tele) horizontal field of view; per Hanwha Vision DORI figures, it can identify a person at 6.8m(22.5ft); resolution is up to 1920x1080 at 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on).
AI Analytics on the Edge
The onboard AI engine classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Auto tracking.
Built-In Cybersecurity
Security features include firmware protection: Encrypted firmware, Secure boot, Signed firmware; certifications: Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645); IEEE 802.1X network authentication.
Installation and Integration
Key installation details: power input: PoE++(IEEE802.3bt type4, Class8) (Max. 71W, typical 28.3W); operating temperature: -50°C~+60°C(-58°F~+140°F); ratings: IP66, IP68, NEMA 4X, IK10; edge storage: Max. 1TB x 1slot; compression: H.265: Main, H.264: Main/Baseline/High, MJPEG.
Typical Applications
- Campuses and large open areas
- Parking lots and garages
- City surveillance
- Industrial yards
Explore More
- Browse PTZ Cameras at Affinitech Store
- Browse Outdoor Cameras at Affinitech Store
- Browse IR Cameras at Affinitech Store
- Browse AI-Powered Cameras at Affinitech Store
- Shop all Hanwha Vision products at Affinitech Store
Frequently Asked Questions About Hanwha Vision TNP-A6550RW
What resolution does the Hanwha Vision TNP-A6550RW capture?
Up to 1920x1080 (2MP) at 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on).
What lens does it use?
4.75~261.4 mm with 55 optical zoom; horizontal field of view 58.6˚(Wide)~1.23˚(Tele).
Does it see in the dark?
Yes. Built-in IR reaches 600m(1,968.50ft).
Can it be installed outdoors?
Yes. It is rated IP66, IP68, NEMA 4X, IK10 and operates from -50°C~+60°C(-58°F~+140°F).
What can the AI analytics detect?
It classifies Person, Face, Vehicle, License plate; AI events include Object detection, Virtual line(Crossing/Direction), Motion detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Auto tracking.
How is it powered?
PoE++(IEEE802.3bt type4, Class8) (Max. 71W, typical 28.3W).
What video compression does it support?
H.265: Main, H.264: Main/Baseline/High, MJPEG.
Does it support onboard storage?
Yes: Max. 1TB x 1slot.
What cybersecurity features are built in?
Encrypted firmware, Secure boot, Signed firmware; Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645).
Is it ONVIF compliant?
Yes, ONVIF Profile S, G, T, M.
Detailed Specifications
Hanwha Vision TNP-A6550RW Specifications
| Specification | Details |
|---|---|
| Video | |
| Imaging Device - Size | 1/2.8" |
| Imaging Device - Type | CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate - H.265/H.264 | 60fps/50fps(60Hz/50Hz)(WDR off) / 30fps/25fps(60Hz/50Hz)(WDR on) |
| Max. Framerate - MJPEG | 30fps |
| Min. Illumination (Lux) - Color(1/30sec, 30IRE) | 0.02Lux(F1.6, 1/30sec) |
| Min. Illumination (Lux) - BW(1/30sec, 30IRE) | 0.002 lux (1/30sec,F1.6), 0Lux(IR LED On) |
| Lens | |
| Focal Length (mm) | 4.75~261.4 |
| Zoom Ratio - Optical | 55 |
| Zoom Ratio - Digital | 1760 |
| Max Aperture Ratio (F number) - Wide | F1.6 |
| Max Aperture Ratio (F number) - Tele | F6.5 |
| Angular Field of View - Horizontal | 58.6˚(Wide)~1.23˚(Tele) |
| Angular Field of View - Vertical | 34.8˚(Wide)~0.71˚(Tele) |
| Angular Field of View - Diagonal | 65.5˚(Wide)~1.39˚(Tele) |
| Min. Object Distance | 5m(16.4ft) |
| Focus Control | Auto, Manual, Oneshot AF, Focus save |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range - Pan | 360° Endless |
| Pan / Tilt / Rotate Range - Tilt | Upright: 140°(50°~-90°), Canted: 165°(75°~-90°), Inverted: 140°(90°~-50°) |
| Pan Speed - Preset | Max. 160°/sec |
| Pan Speed - Manual | 0.024°/sec~160°/sec |
| Tilt Speed - Preset | Max. 160°/sec |
| Tilt Speed - Manual | 0.024°/sec~160°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.07° |
| Operational | |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection - Quantity | 8ea |
| Motion Detection - Shape | 8point Polygonal zones |
| Privacy Masking - Quantity | 32ea |
| Privacy Masking - Shape | 4point Quadrangle zones |
| Privacy Masking - Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic |
| Privacy Masking - Dynamic Privacy Masking: Color / Option | Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow |
| Gain Control | Off, Max gain, Manual |
| White Balance | ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium |
| Electronic Shutter - Mode | Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) |
| Electronic Shutter - Speed Range | 2~1/30,000sec |
| Video Rotation | Flip&Mirror |
| Installation Direction | Upright, Inverted, Canted |
| Alarm Interface - Others | Support alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription |
| Alarm Events When Alarm Trigger Occurred | File upload(image): e-mail/FTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| Audio In | Support via optional I/O box |
| Audio Out | Support via optional I/O box |
| Light Type | IR LED |
| Light Viewable Length - IR | 600m(1,968.50ft) |
| IR Wavelength | 850nm |
| Water Removal | Support(with Wiper) |
| Ice Removal | Window, Pan |
| Auto Tracking | Support, Object auto tracking(Person/Vehicle), Target lock tracking |
| Analytics | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Attributes - Person | Upper/Lower clothes color, Gender, Bag |
| Attributes - Vehicle | Type(car, bus, truck, motorcycle, bicycle), Color |
| Attributes - Face | Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events - Based on AI Engine | Object detection, Virtual line(Crossing/Direction), Motion detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Auto tracking |
| Analytics Events - Normal | Tampering, Audio detection, Shock detection |
| Network | |
| Ethernet | RJ-45 Push-pull Connector(10/100BASE-T) |
| Video Compression | H.265: Main, H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStream(Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming - Unicast | Up to 20 users |
| Streaming - Multicast | Support |
| Streaming - Multiple Streaming | Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, NTCIP 1205, Syslog |
| Application Programming Interface - ONVIF | S, G, T, M |
| Application Programming Interface - Others | SUNAPI(HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt(AES-256), Secure element |
| Supply Chain Security | SBOM |
| Security Certificate | Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| General | |
| SoC - Type | Wisenet 9 |
| SoC - Dual NPU | Support |
| Memory - RAM | 4GB |
| Memory - Flash | 8GB eMMC |
| Edge Storage - Micro SD/SDHC/SDXC | Max. 1TB x 1slot |
| Edge Storage(OnCloud) - Micro SD/SDHC/SDXC | Max. 1TB x 1slot *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. |
| Environmental & Electrical | |
| Operating Condition - Temperature | -50°C~+60°C(-58°F~+140°F) |
| Operating Condition - Humidity | 0~100% RH(condensing) |
| Operating Condition - Others | +74°C(+165°F)(Max) based on NEMA-TS 2(2.2.7), Start up should be done at above -30°C, Humidity control with AIR vent |
| Storage Condition - Temperature | -50°C~+60°C(-58°F~+140°F) |
| Storage Condition - Humidity | 0~90% RH(non-condensing) |
| Wind Load | Sustained 257km/h (160mph) |
| EPA(Effective Projected Area) | 0.095㎡ |
| Input Voltage | PoE++(IEEE802.3bt type4, Class8) |
| Power Consumption - PoE | Max. 71W, typical 28.3W |
| WisePower | Power mode, Power monitoring, Eco mode |
| Mechanical | |
| Color | White, Black |
| Material | Aluminum, PC(Polycarbonate), ITO Glass |
| Material Management - Declaration | RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act) |
| RAL Code | RAL9003, RAL9005 |
| Product Dimensions | Upright Normal/Inverted : 293.4(W)x205.6(D)x399.9(H)mm (11.55x8.09x15.74") Upright Canted : 293.4(W)x301.9(D)x363.6.9(H)mm (11.55x11.89x14.31") |
| Product Weight | 10.4kg(9.4kg: Excluding installation part) |
| Certifications & Standards | |
| EMC | EN 50121-4, FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, EN 55035 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471, IEC/EN/UL 62368-1 GS UL cUL CE FCC VCCI CB |
| Environment | IEC 60529 IP66, IEC 60529 IP68, IEC 62262 IK10, NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9), NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, MIL-STD-810H 501.7, MIL-STD-810H 502.7, MIL-STD-810H 503.7, MIL-STD-810H 505.7, MIL-STD-810H 506.6, MIL-STD-810H 507.6, MIL-STD-810H 509.7, MIL-STD-810H 510.7, MIL-STD-810H 521.4, IEC 60068-2-52:2017, NEMA TS2, 2.1.9, NEMA TS2, 2.1.10, NEMA TS2, 2.2.4, NEMA 250, 5.6, ASTM B117 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) - Wide | 68.4m(224.5ft) |
| Detect (25PPM/ 8PPF) - Tele | 3577.4m(11736.7ft) |
| Observe (63PPM/ 19PPF) - Wide | 27.4m(89.8ft) |
| Observe (63PPM/ 19PPF) - Tele | 1430.9m(4694.7ft) |
| Recognize (125PPM/ 38PPF) - Wide | 13.7m(44.9ft) |
| Recognize (125PPM/ 38PPF) - Tele | 715.5m(2347.3ft) |
| Identify (250PPM/ 76PPF) - Wide | 6.8m(22.5ft) |
| Identify (250PPM/ 76PPF) - Tele | 357.7m(1173.7ft) |
